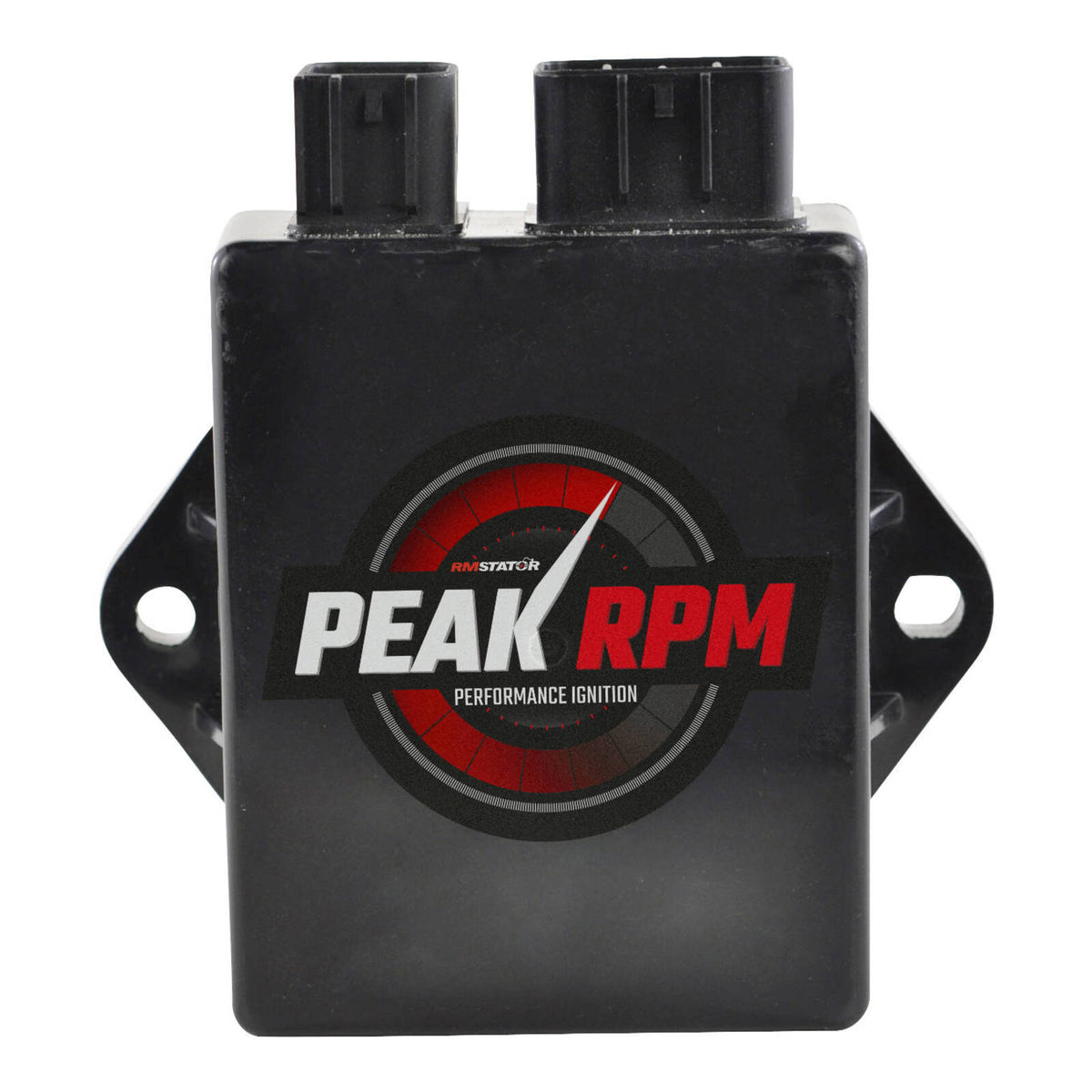

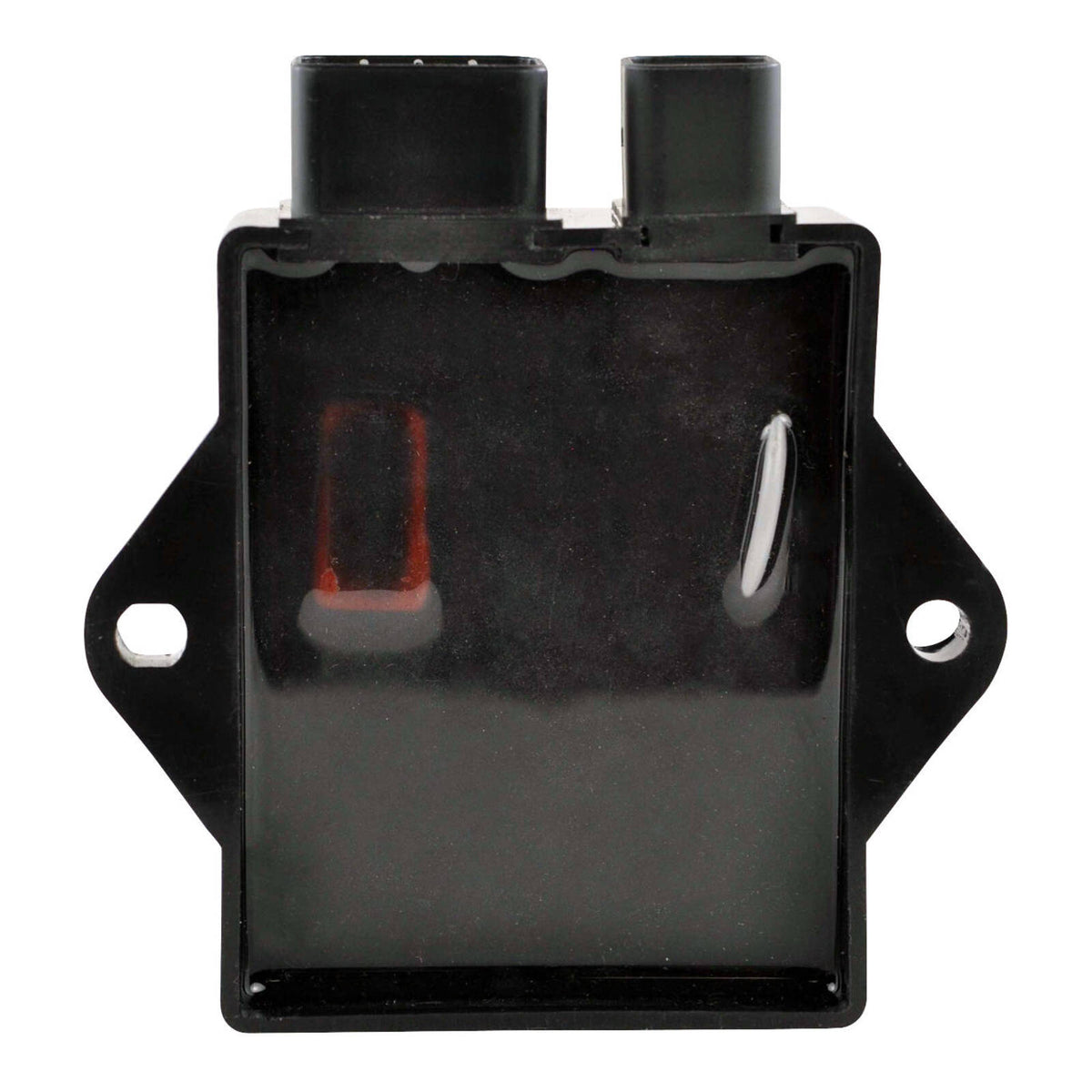

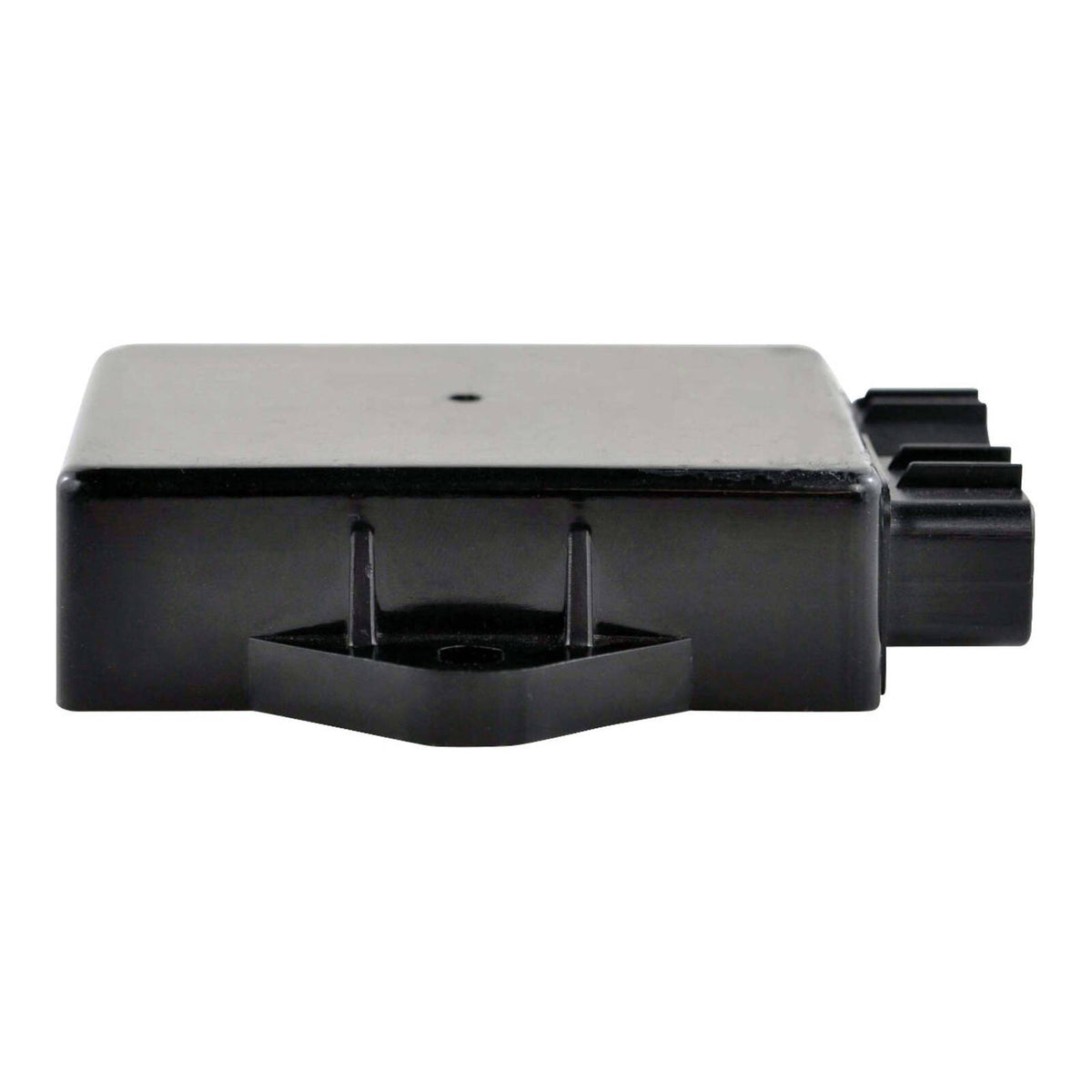

CDI Box - Yamaha Outboard (RMS030-103087)

Brand New Aftermarket CDI Box

• The PeakRPM CDI Box provides optimal output for your ride.
• Fast and easy installation with a plug-and-play OEM design and included dielectric connector grease.
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying.

All item pictures are accurate. If in doubt, compare the item to the original part.

This CDI is designed as a direct plug-in replacement and should be used as such.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Height: 26 mm.
• Length: 156 mm.
• Width: 150 mm.

Other Specifications:

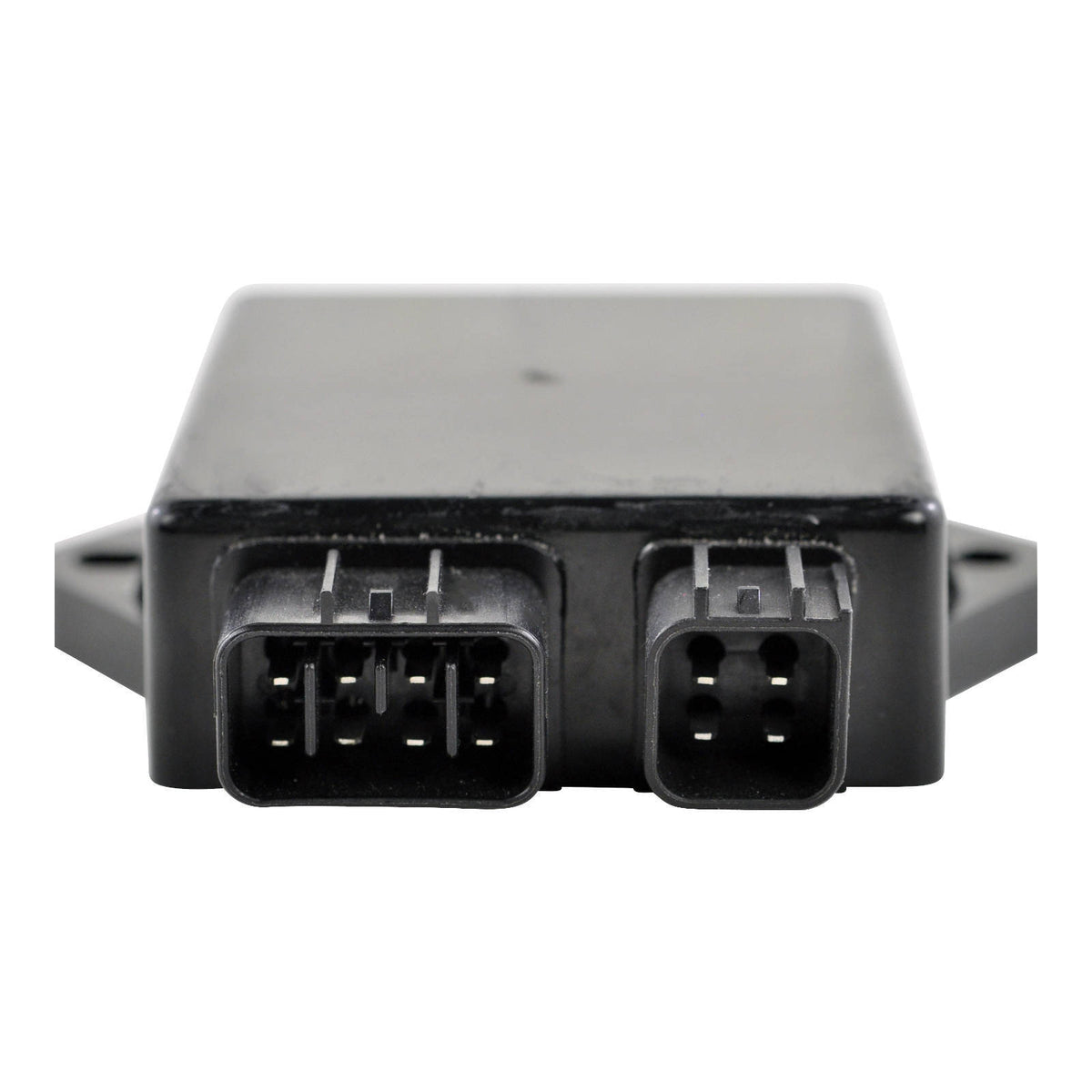

• Number of plugs: 2.
• Number of pins: 12.

Please Note: The only real way to test the CDI box is to swap it out with another known-good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
