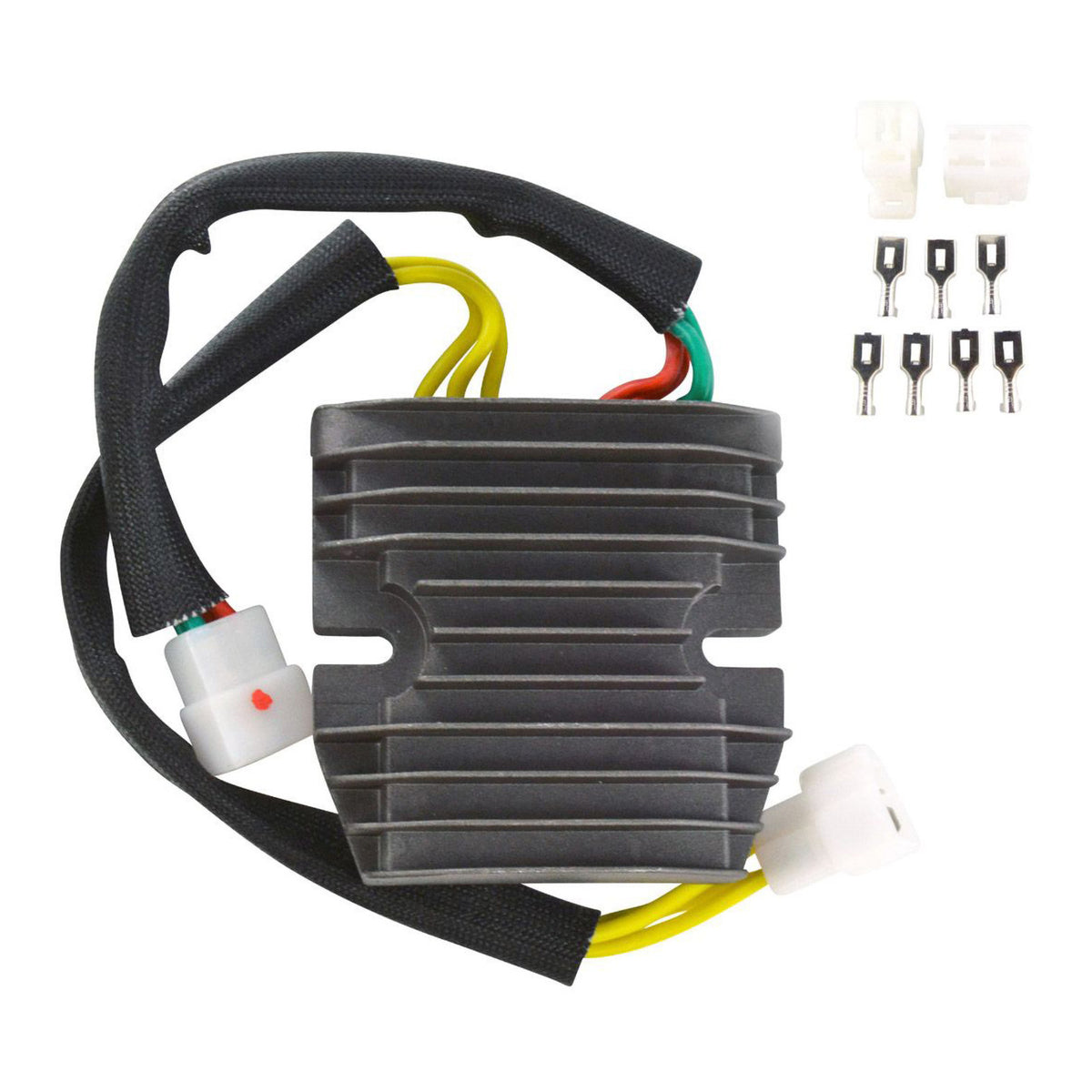

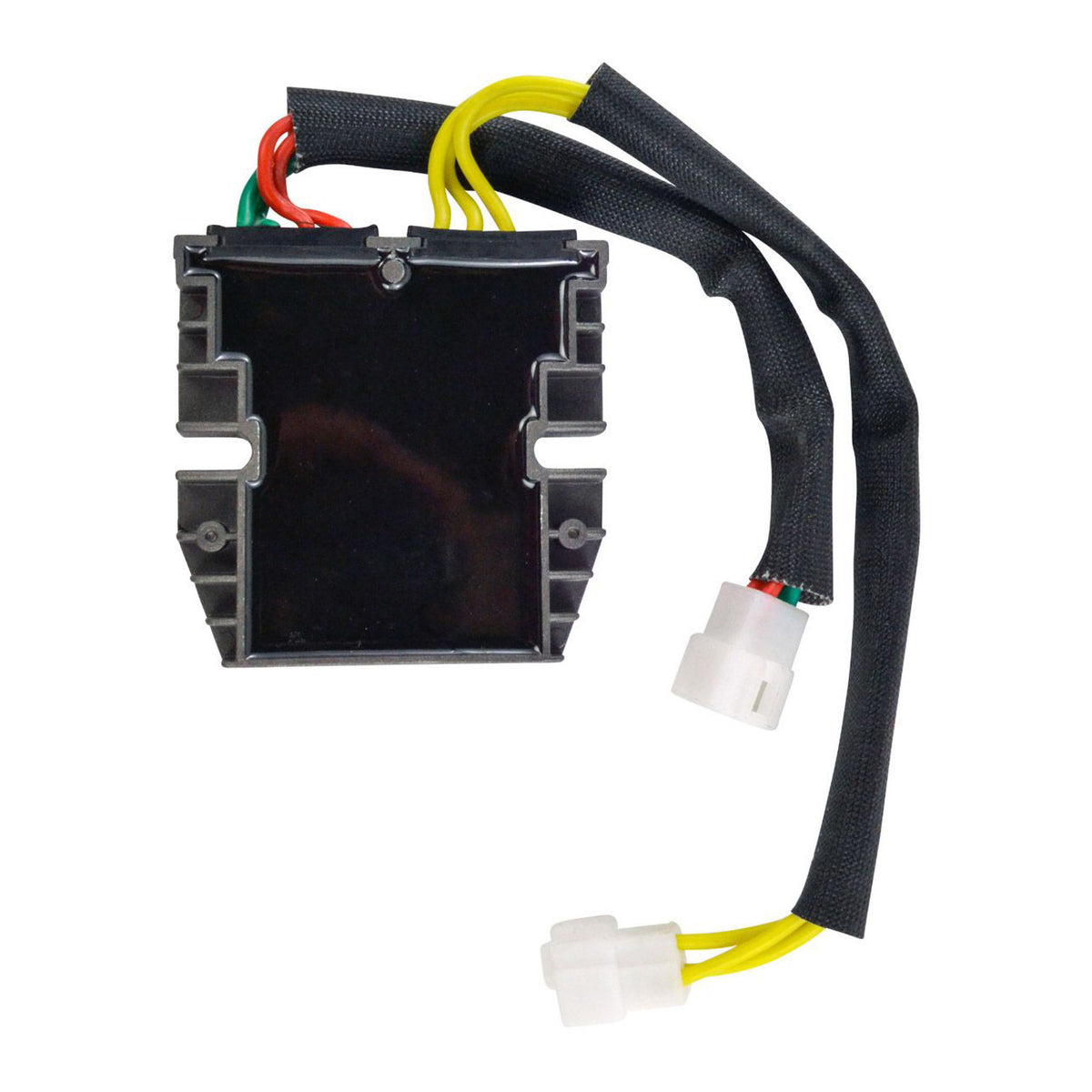

Regulator - Triumph Speed Triple '05-'14 (RMS020-102953)

Brand new aftermarket voltage regulator rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate and compare The item to the original part.

Before installing the new Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 90 mm
• Length: 94 mm
• Height: 30 mm
• Fixation holes centre to centre: 75 mm
• Wires length: 320 mm & 235 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
