HIGH OUTPUT STATOR KAW KVF 360 400 PRAIRIE 99-12 (RM01074)
$339.99
Skip to product information
3 left
HIGH OUTPUT STATOR KAW KVF 360 400 PRAIRIE 99-12 (RM01074)
RMS01074
$339.99
Product Description

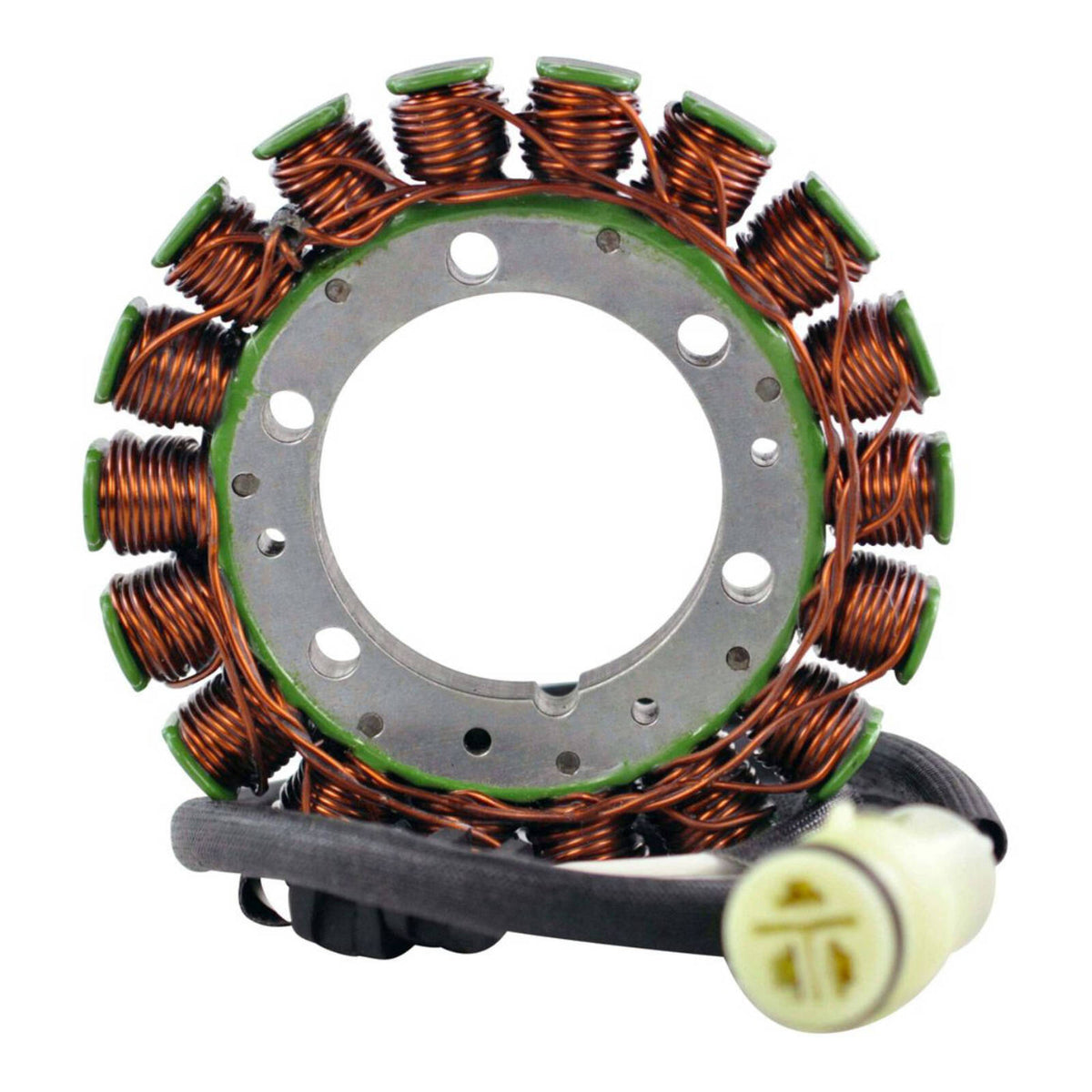

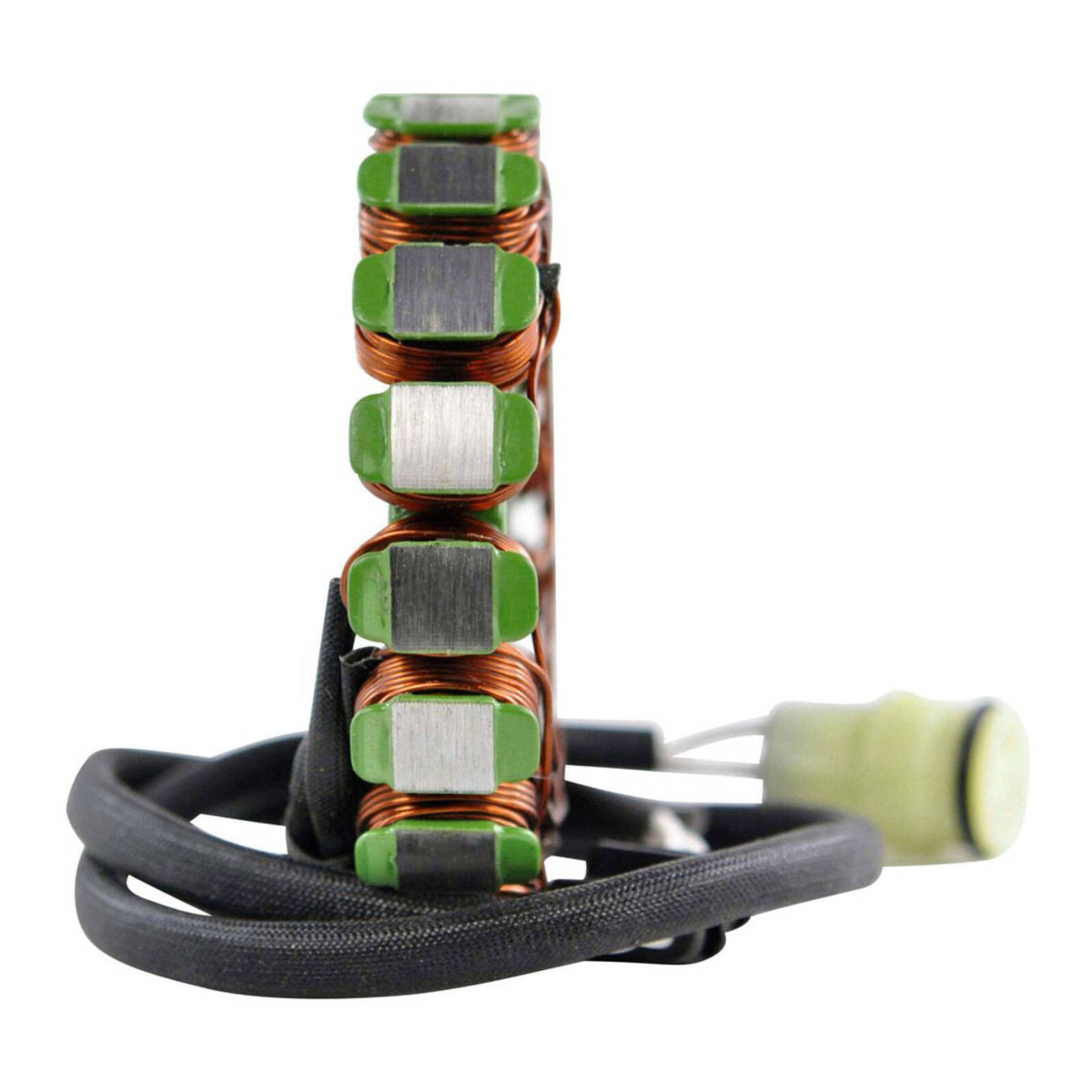

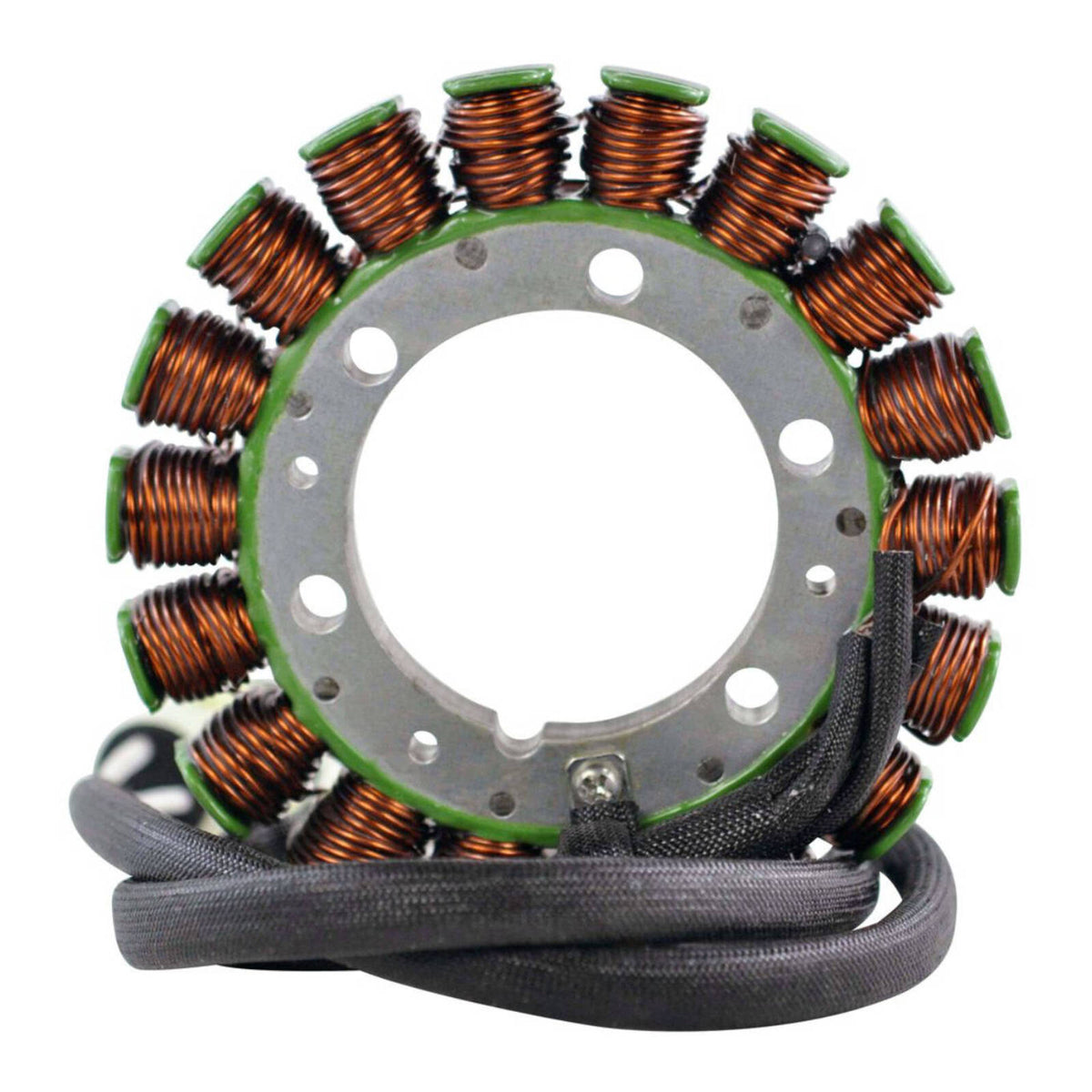

Plug-and-play, high output replacement stator from RM Stator.
Dimensions:
- Interior diameter: 53mm
- Exterior diameter: 115mm
- Thickness: 14mm
- Length of wires — stator to grommet: 90mm
- Length of wires — grommet to plug: 500mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Wire to wire resistance:
- Alternator: White to White = 0.4 ohms +-20%
- Altnerator: White to Ground = O.L on Display
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

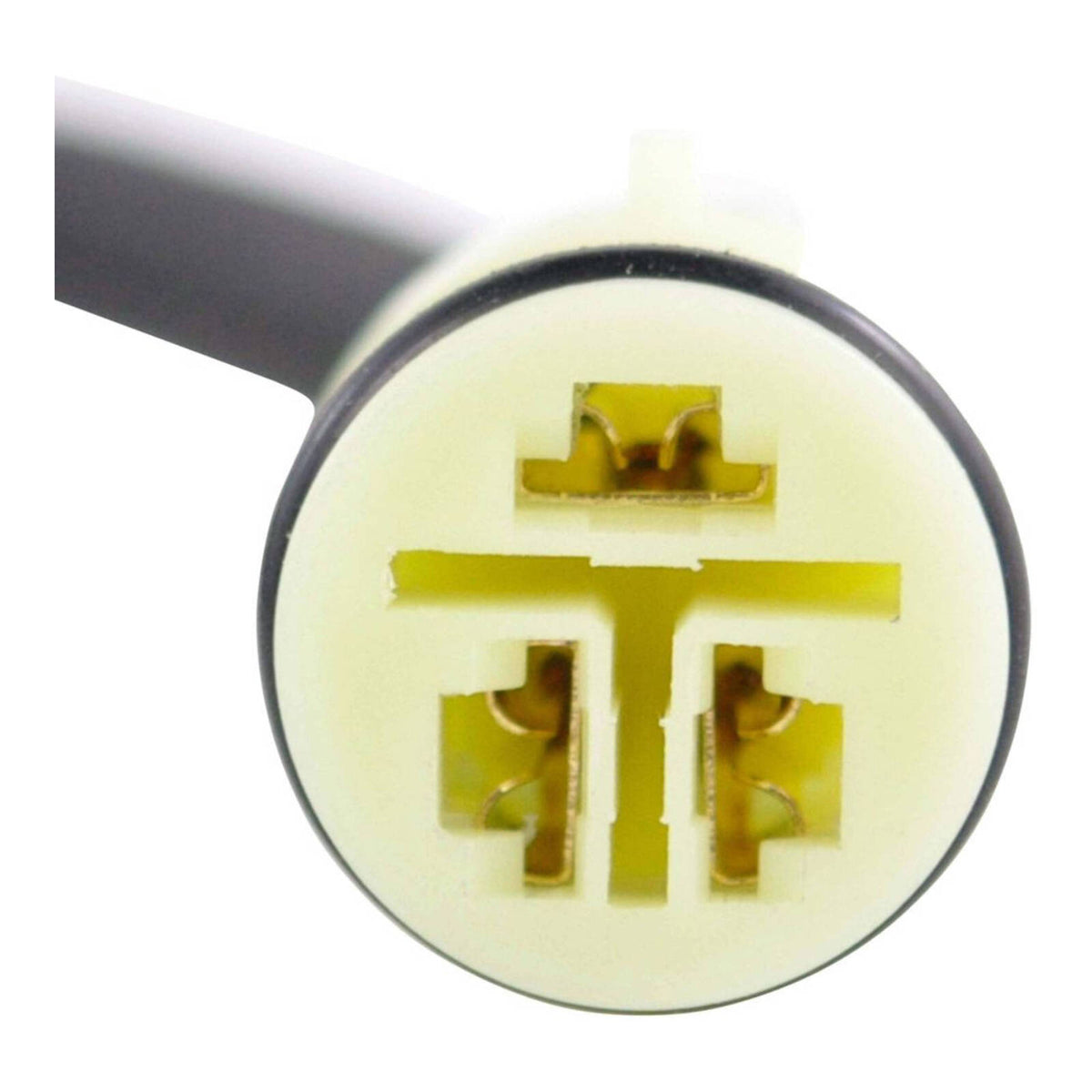

- Connector included
- Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
- Rubber grommet included
- All products shipped are tested
