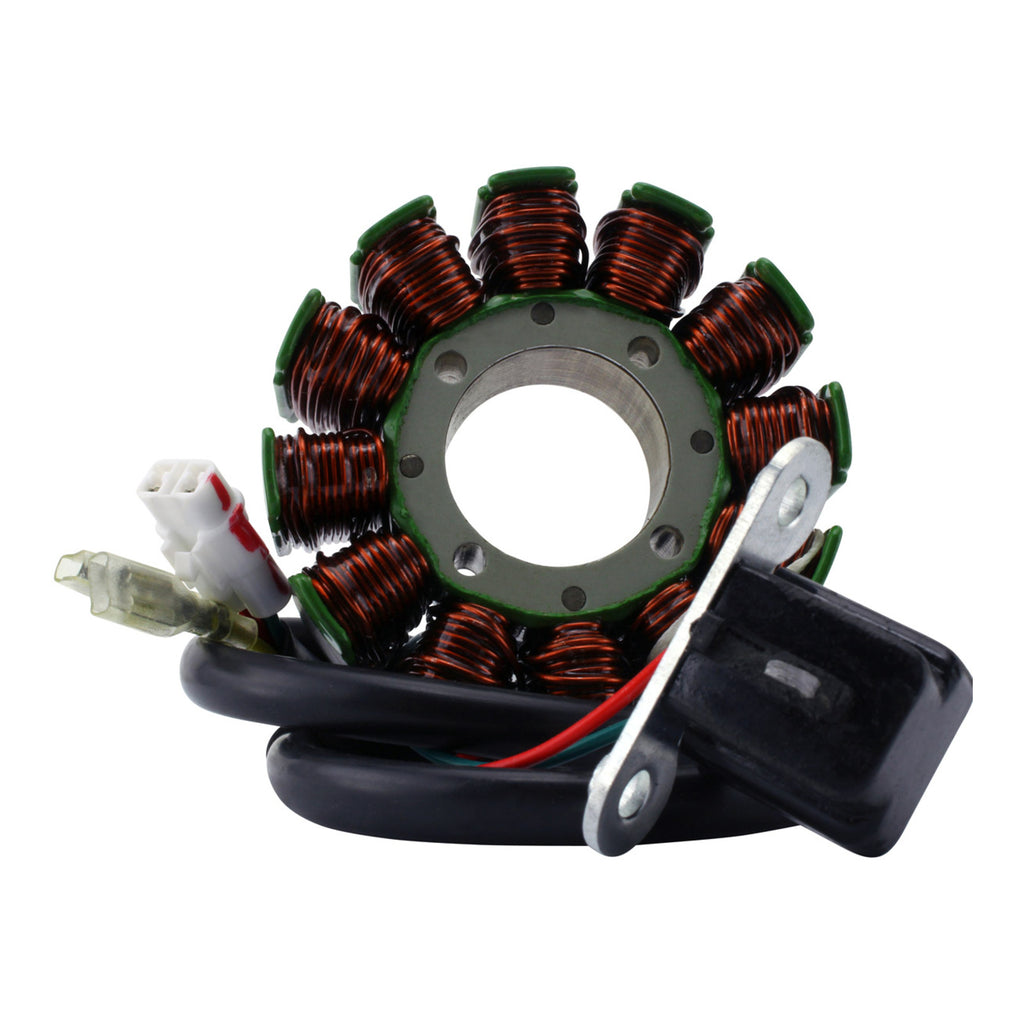

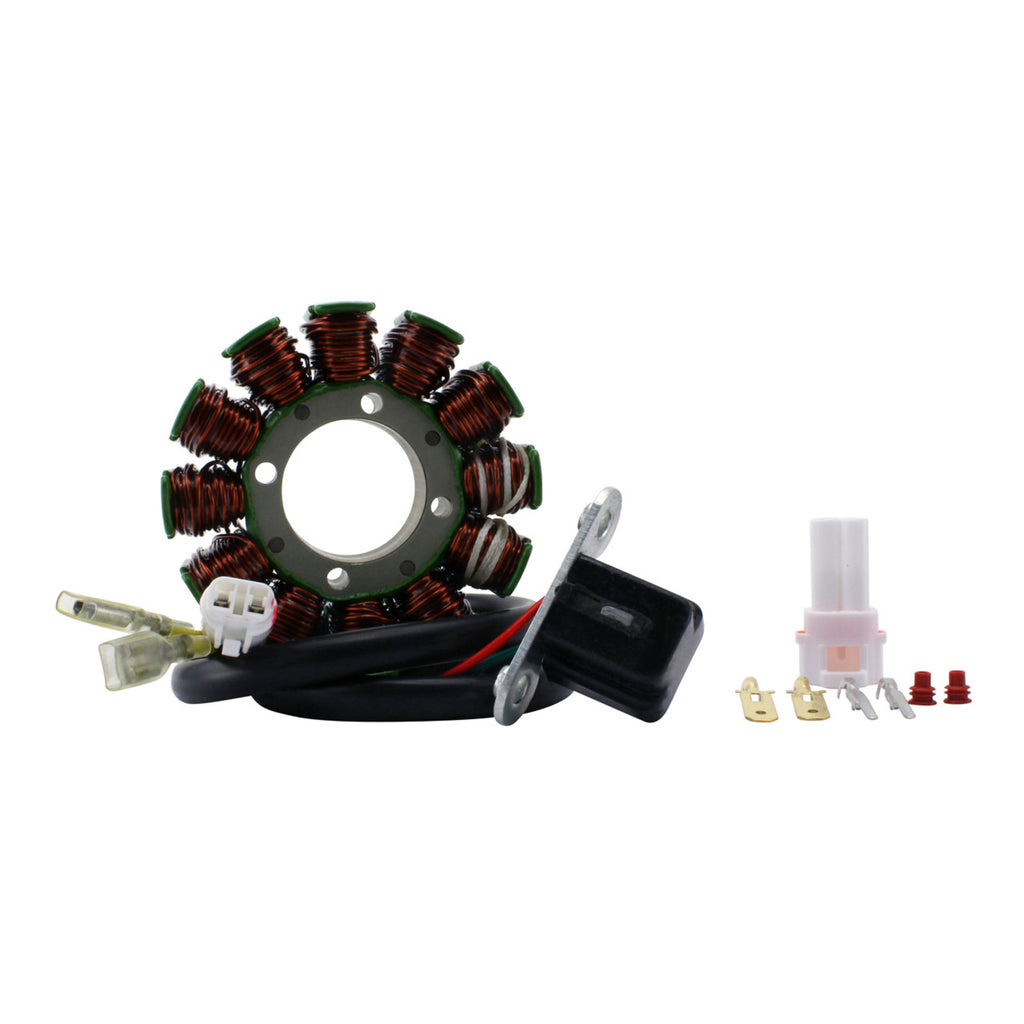

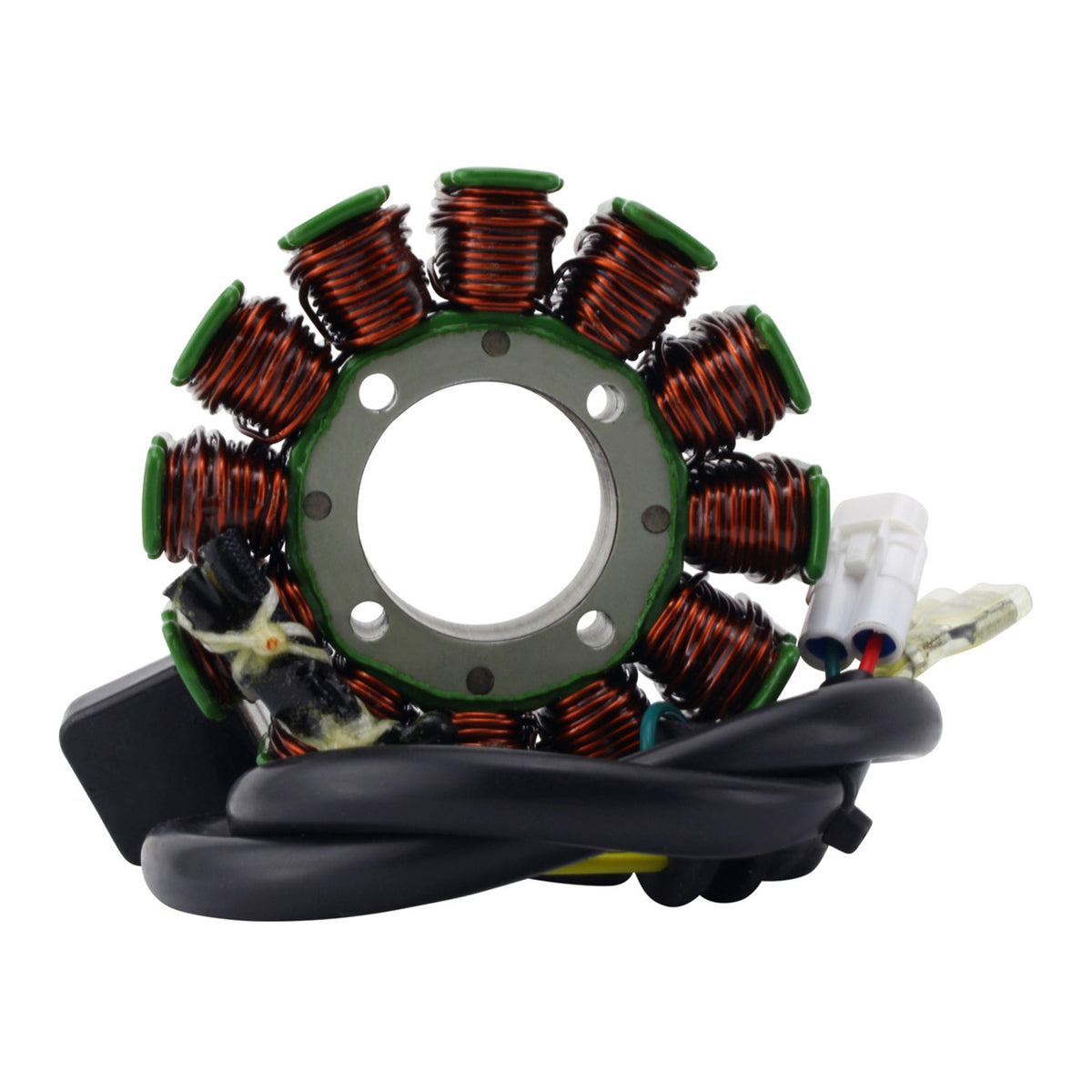

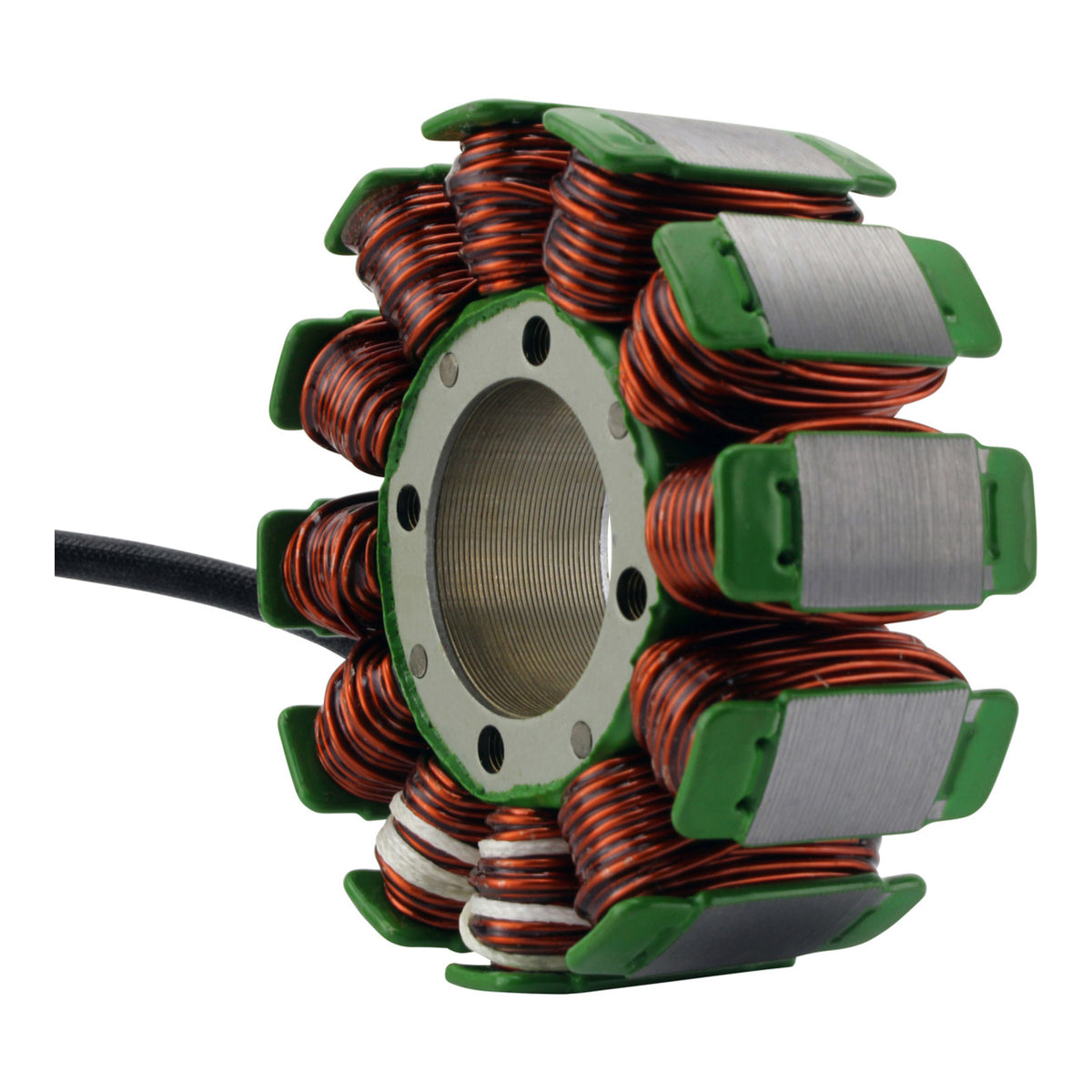

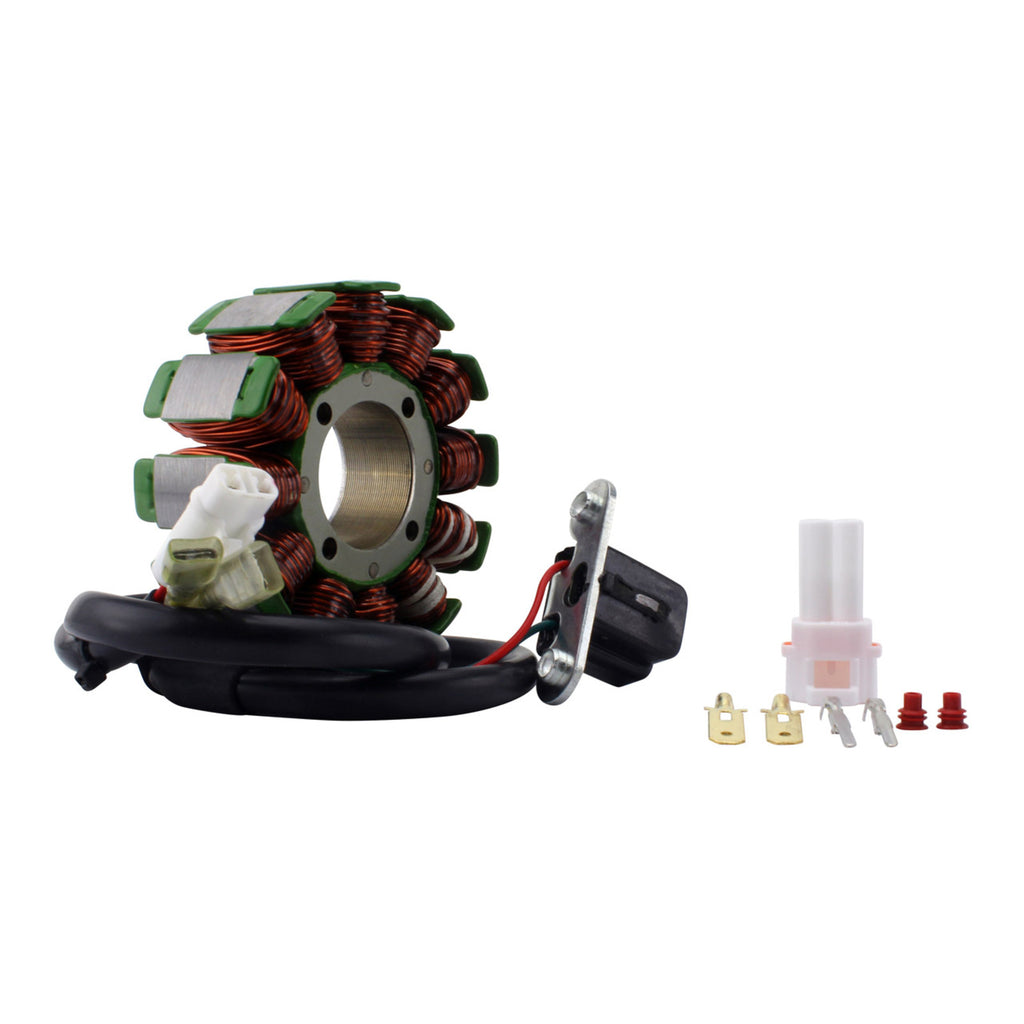

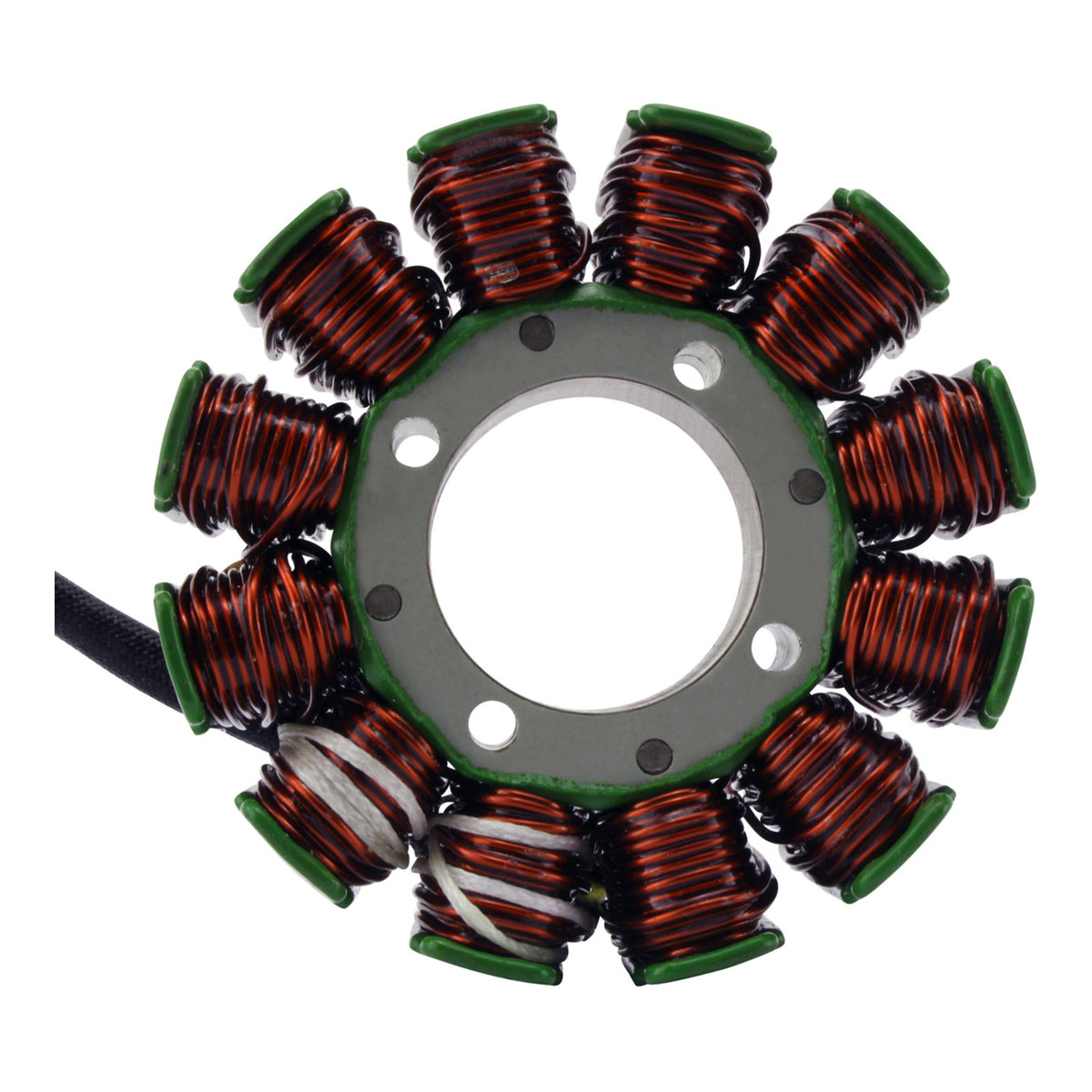

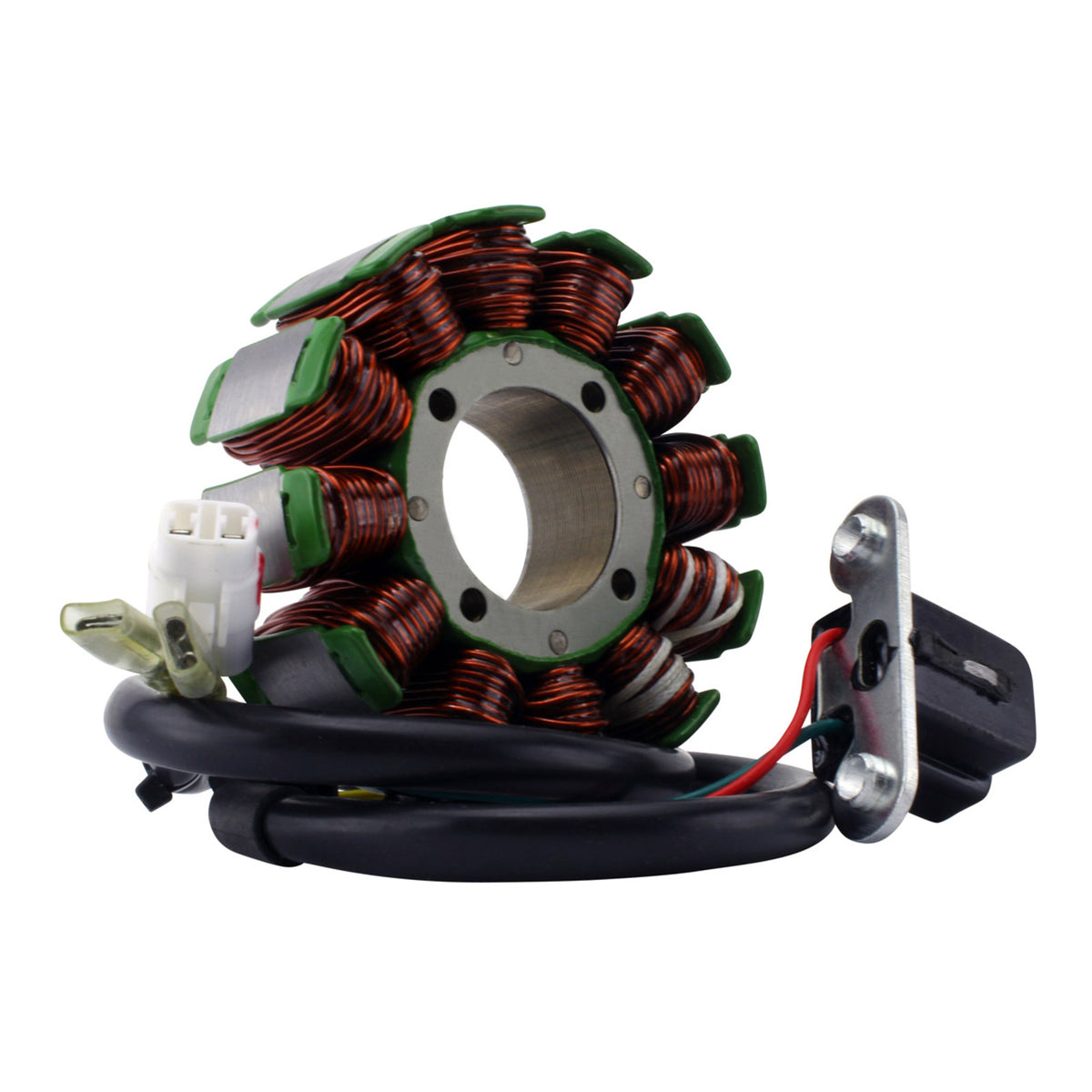

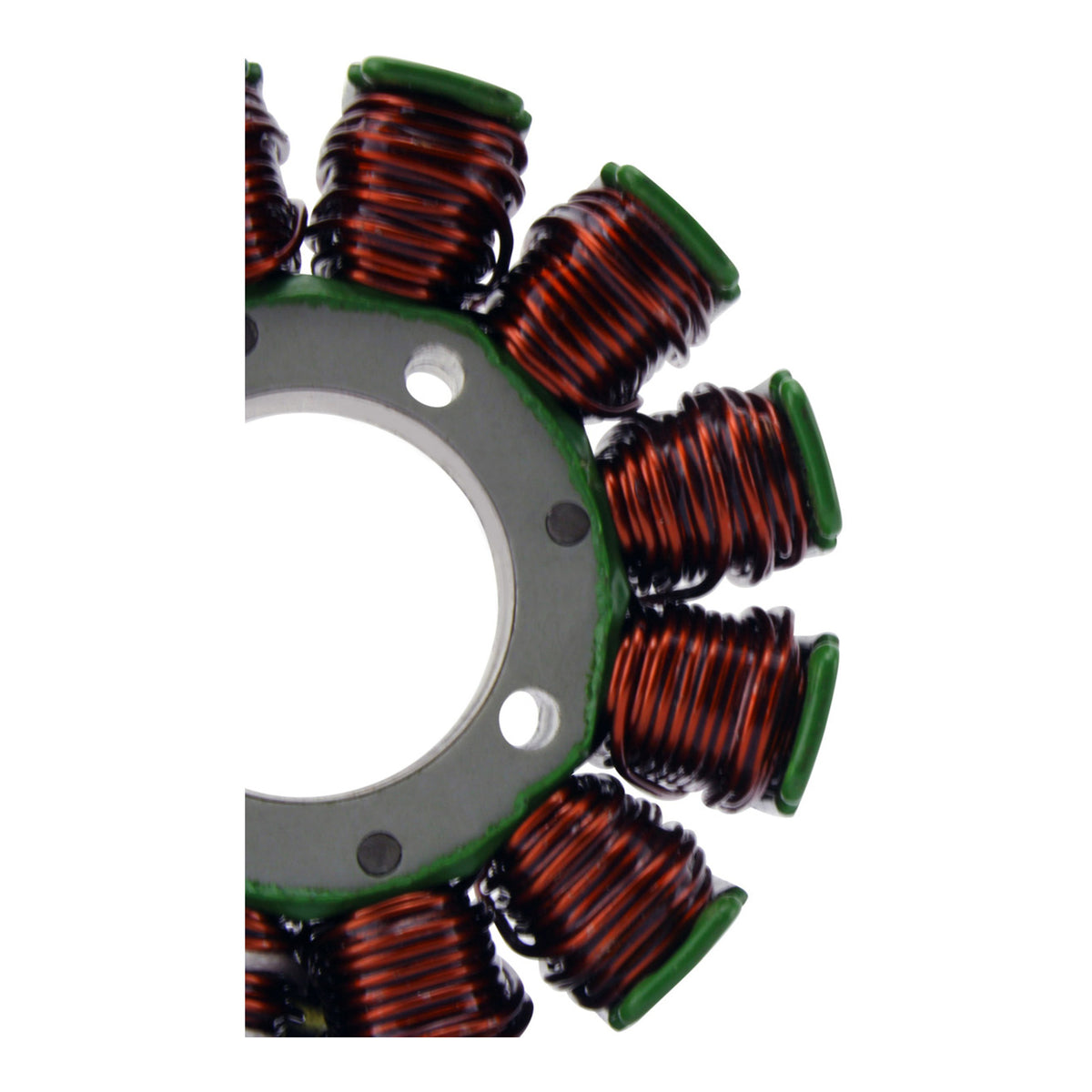

80W High Output Stator - KTM / Husqvarna 250 / 350 Models

Brand new aftermarket stator.

Features:

• Direct replacement to your original unit.
• 80 watts DC.
• This stator increases power output significantly.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.

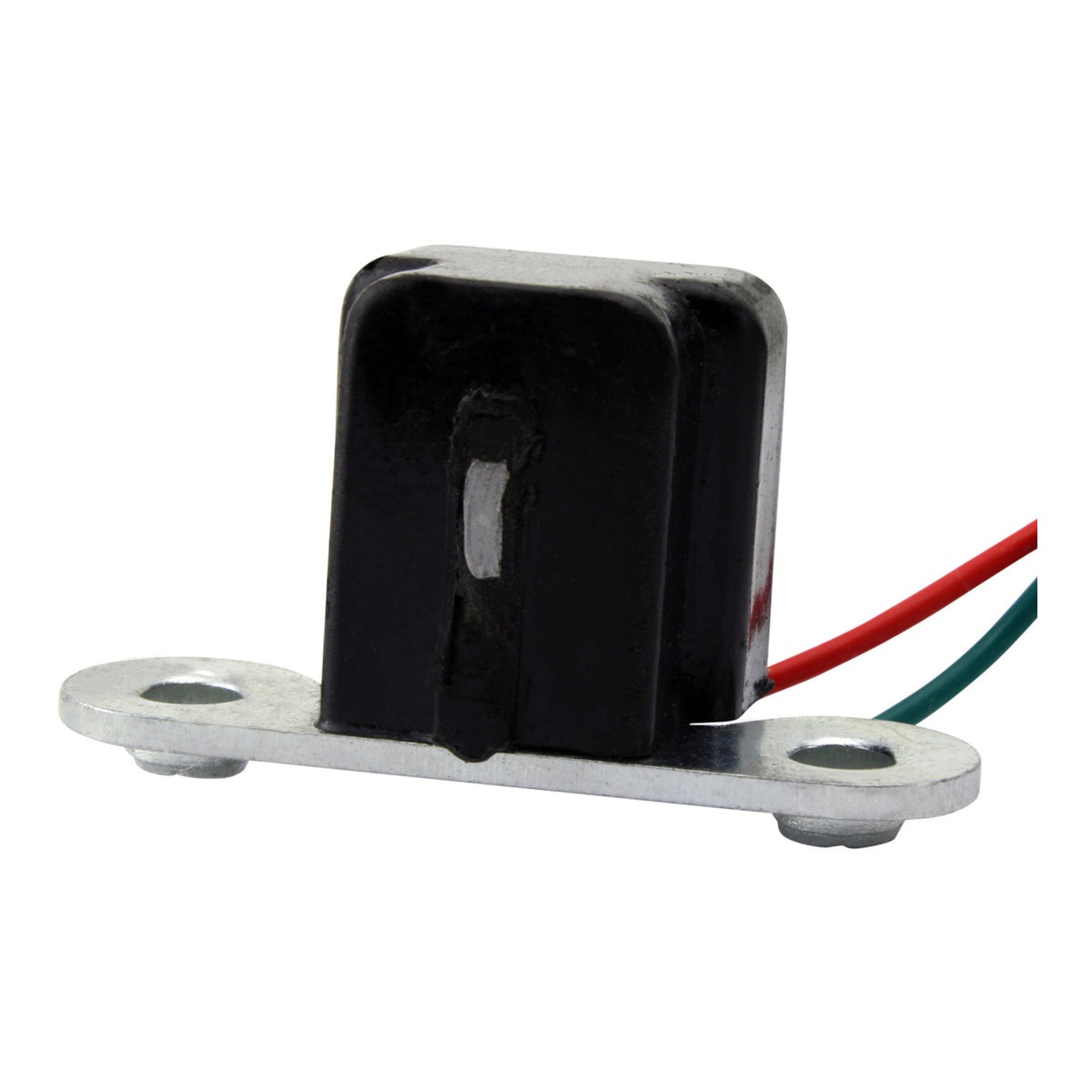

• Pick up pulsar coil included.

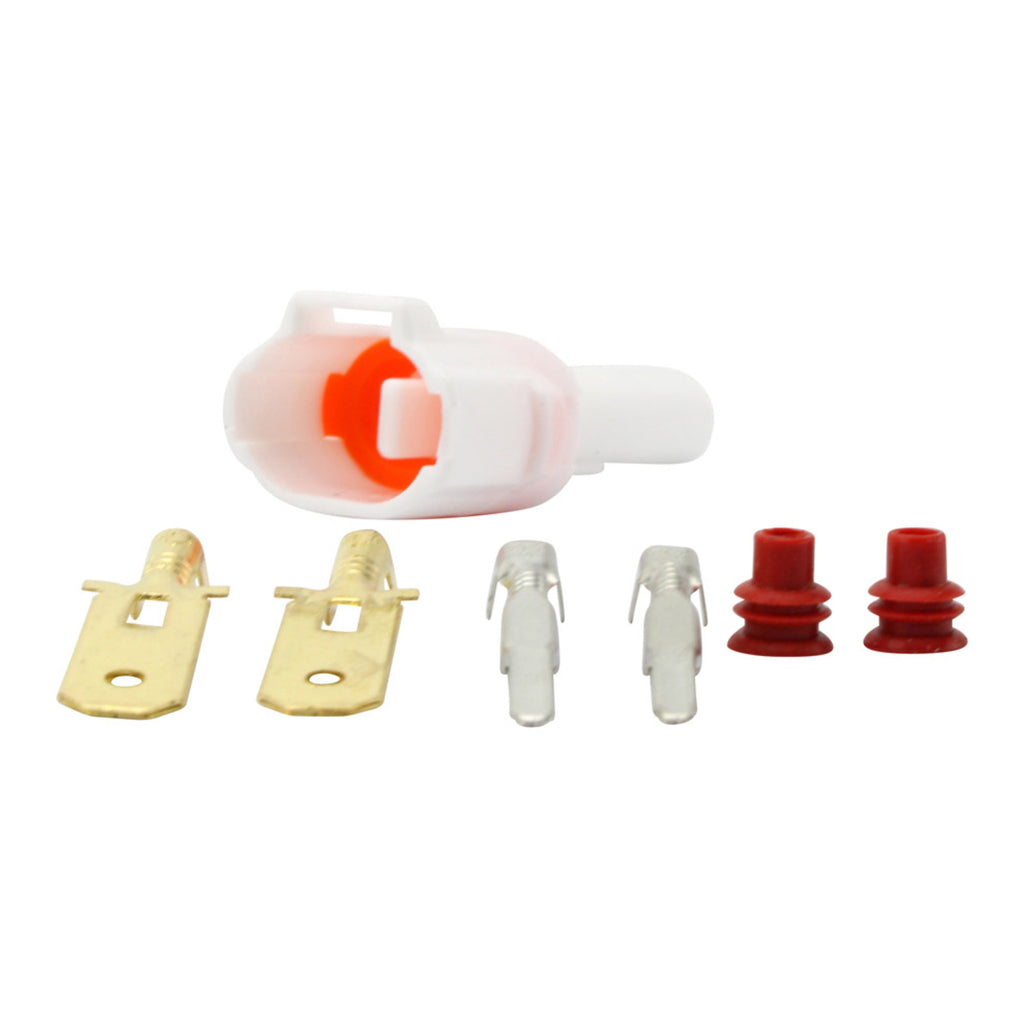

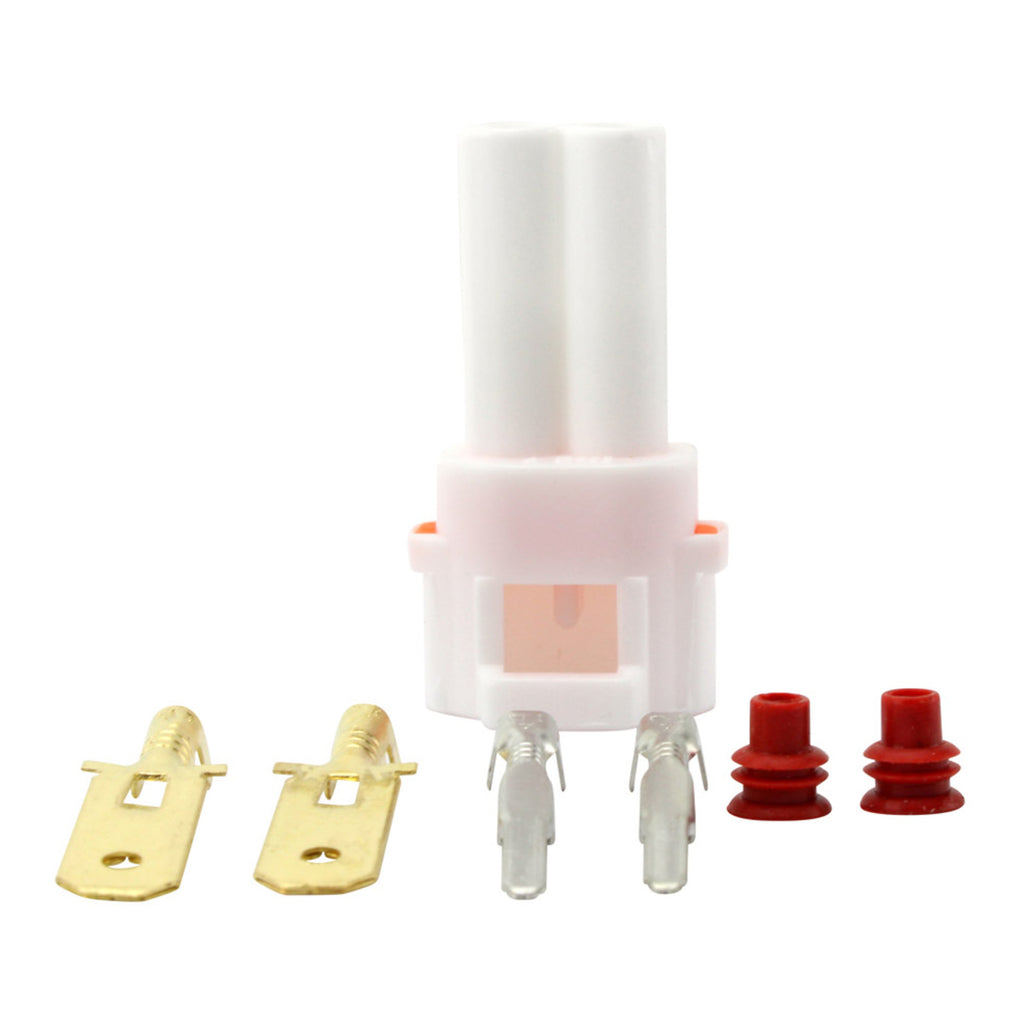

• Connectors included.
• Rubber grommet included.
• All products shipped are tested.
• 20% more output over stock, works with all other OEM components.

Specifications:

• Interior diameter: 29 mm
• Exterior diameter: 77 mm
• Thickness: 21 mm
• Stator wire length to grommet: 120 mm
• Wire length from grommet to plug: 520 mm
• Pickup coil wire length to grommet: 90 mm

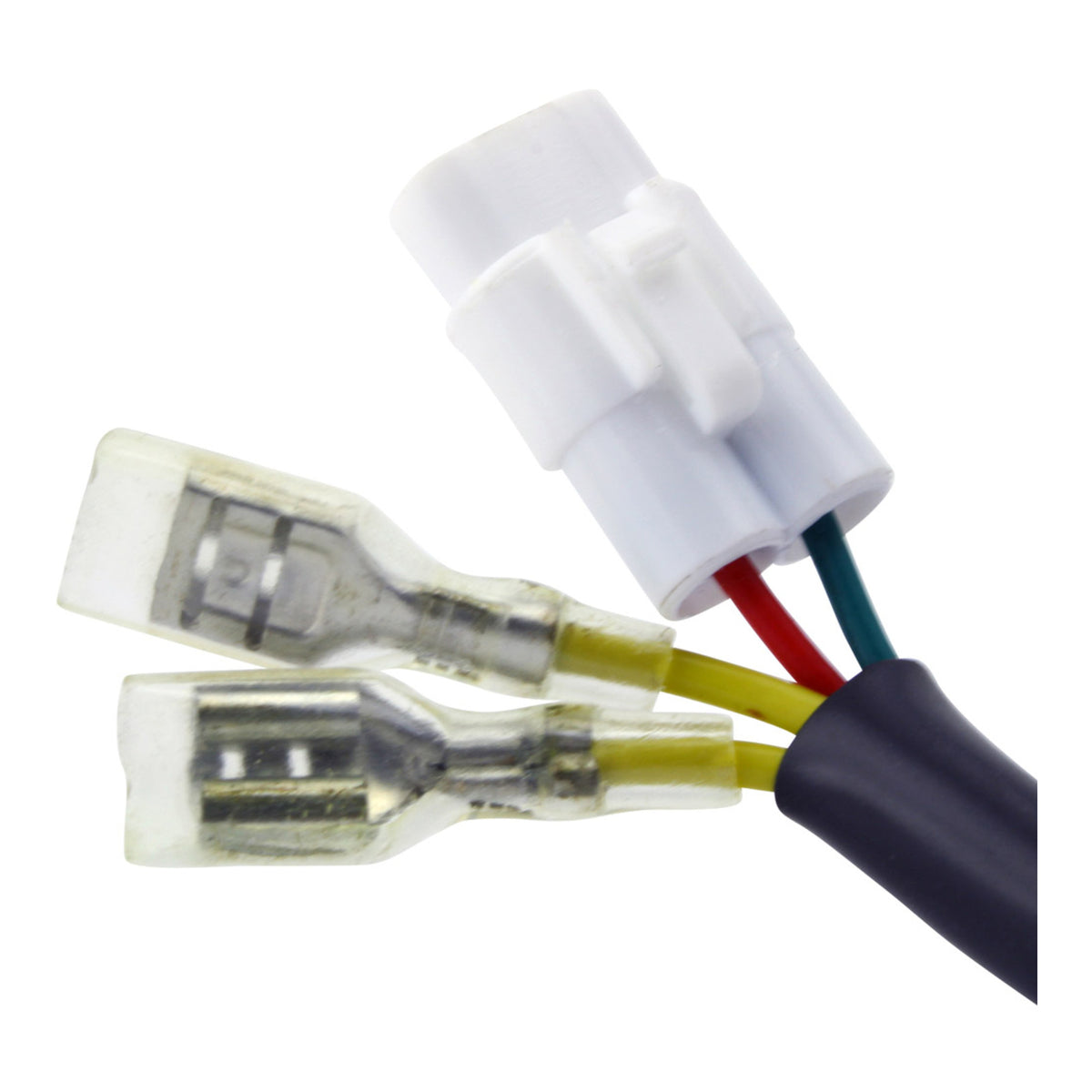

• 4 wires
• 1 plug
• 4 pins
• 12 poles
• Alternator resistance (Yellow to Yellow): 0.4 Ω ±20%
• Alternator resistance (Yellow to Ground): O.L. (Open Loop)
• Pickup coil resistance (Red to Green): 130 Ω ±20%
