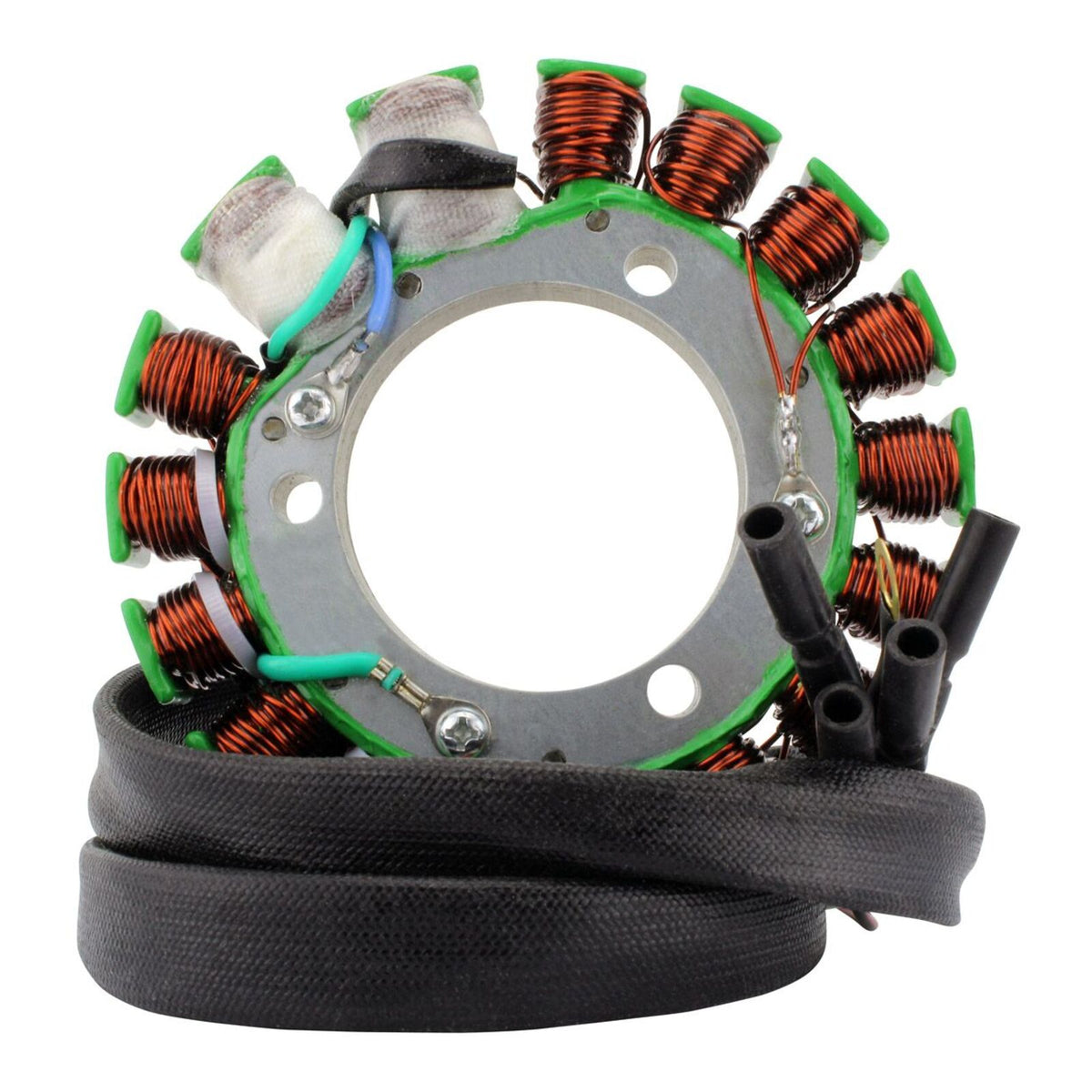

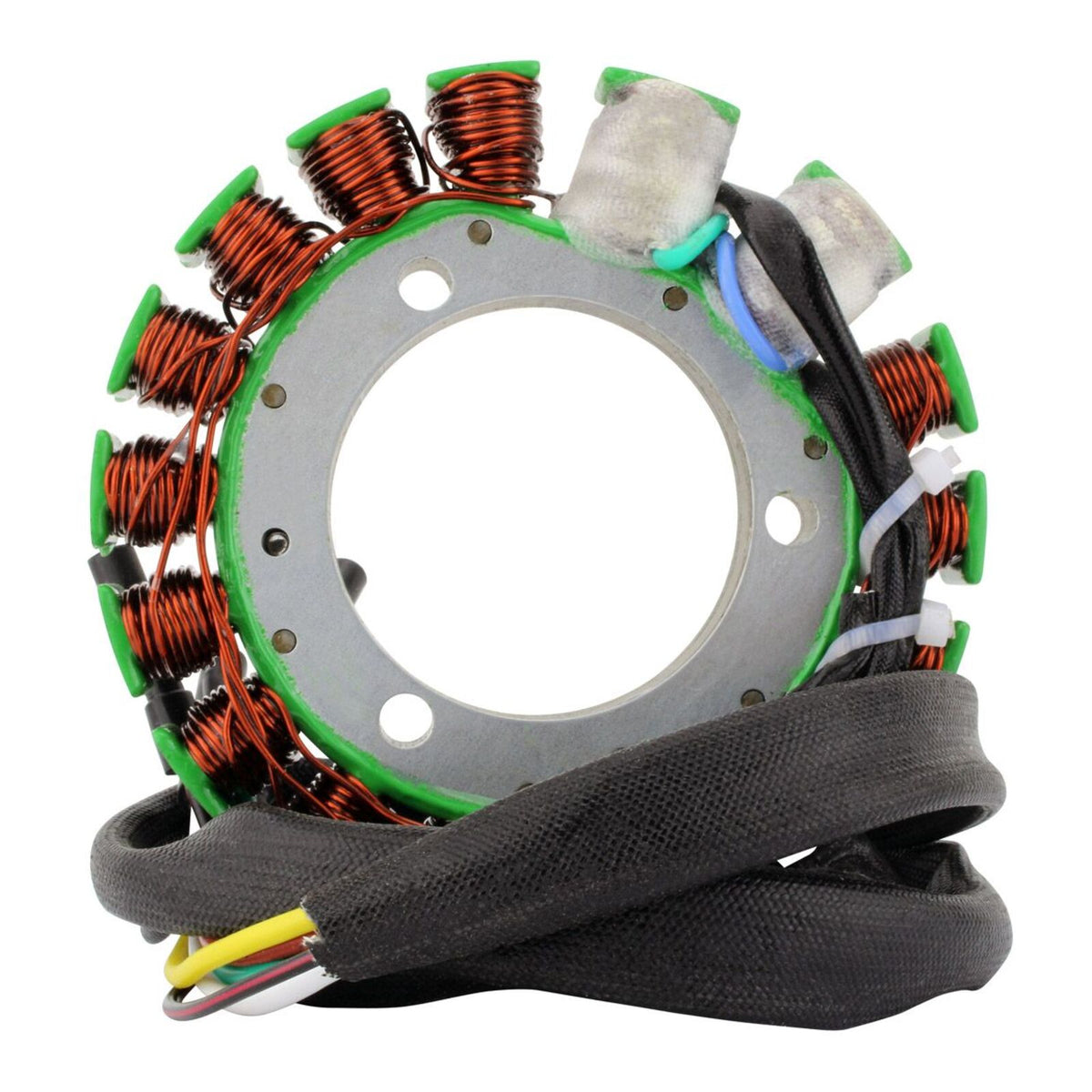

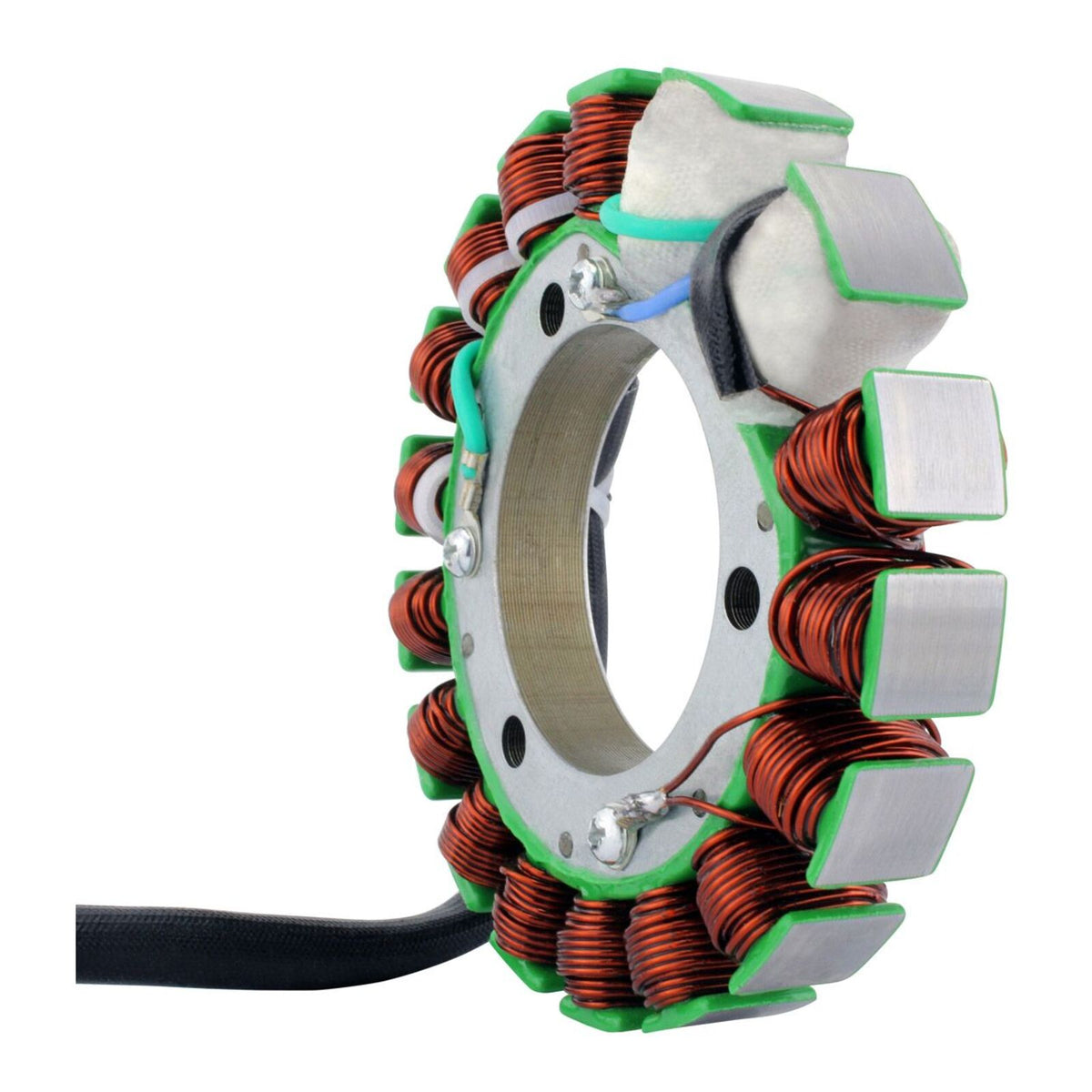

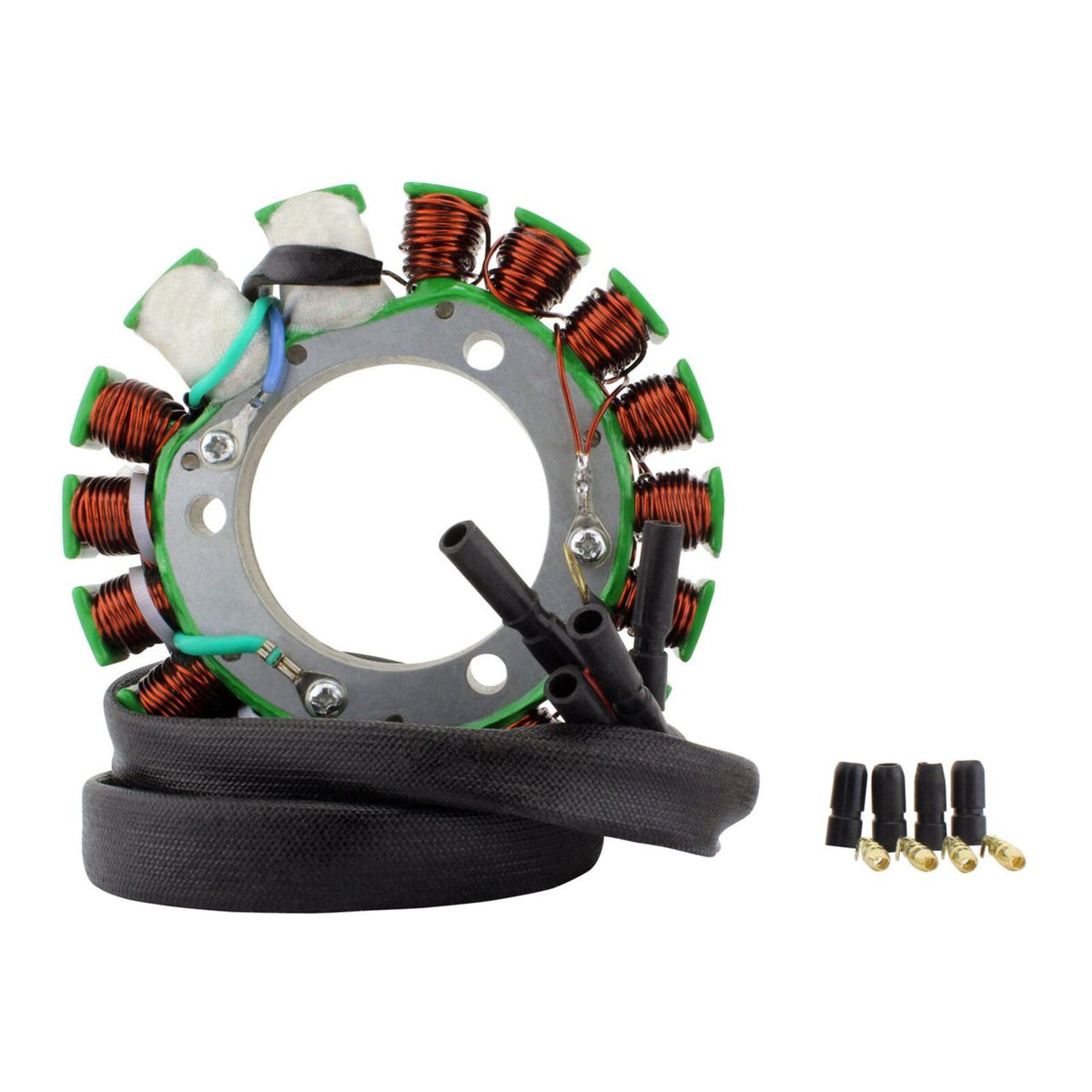

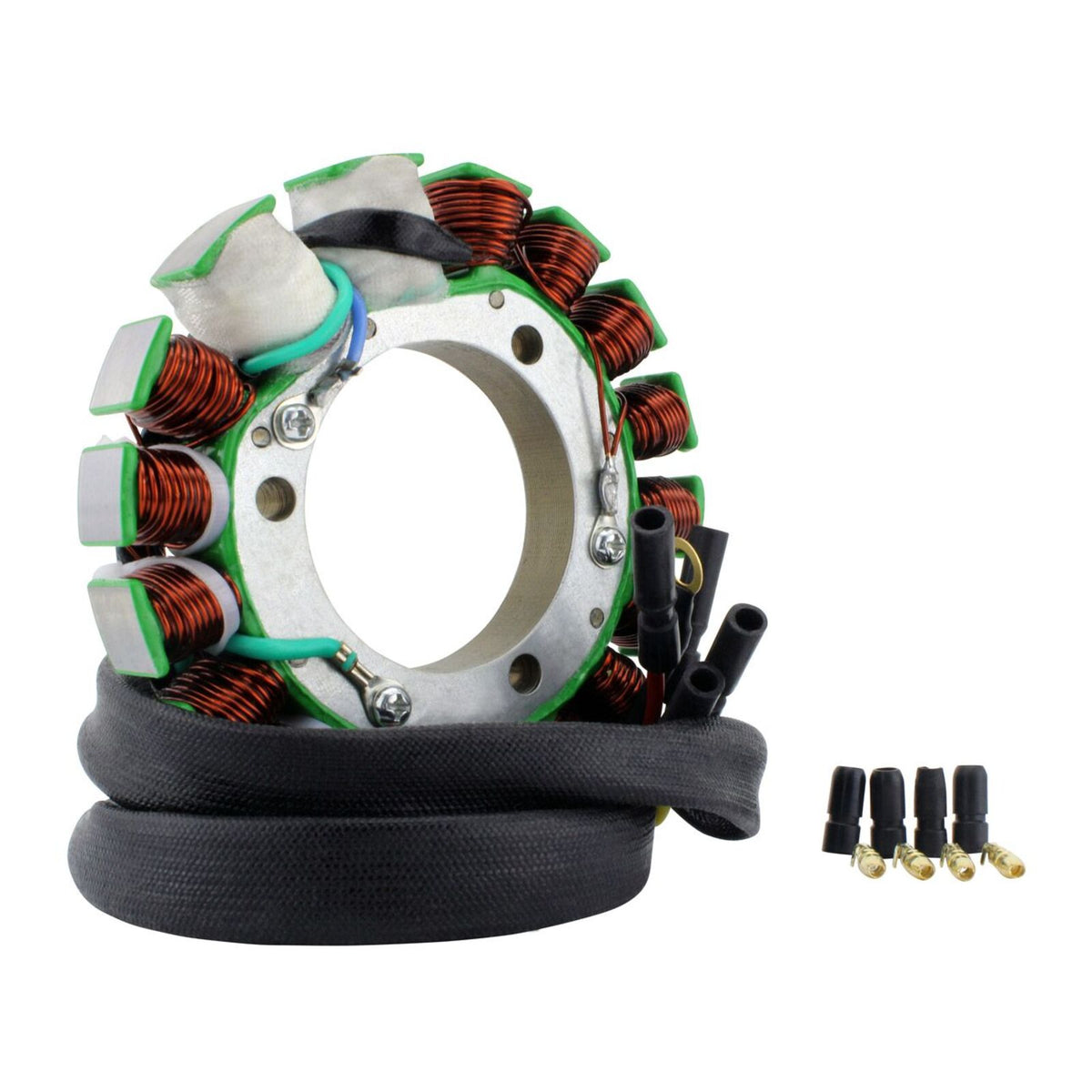

STATOR HON XR 600 R 1985-2000

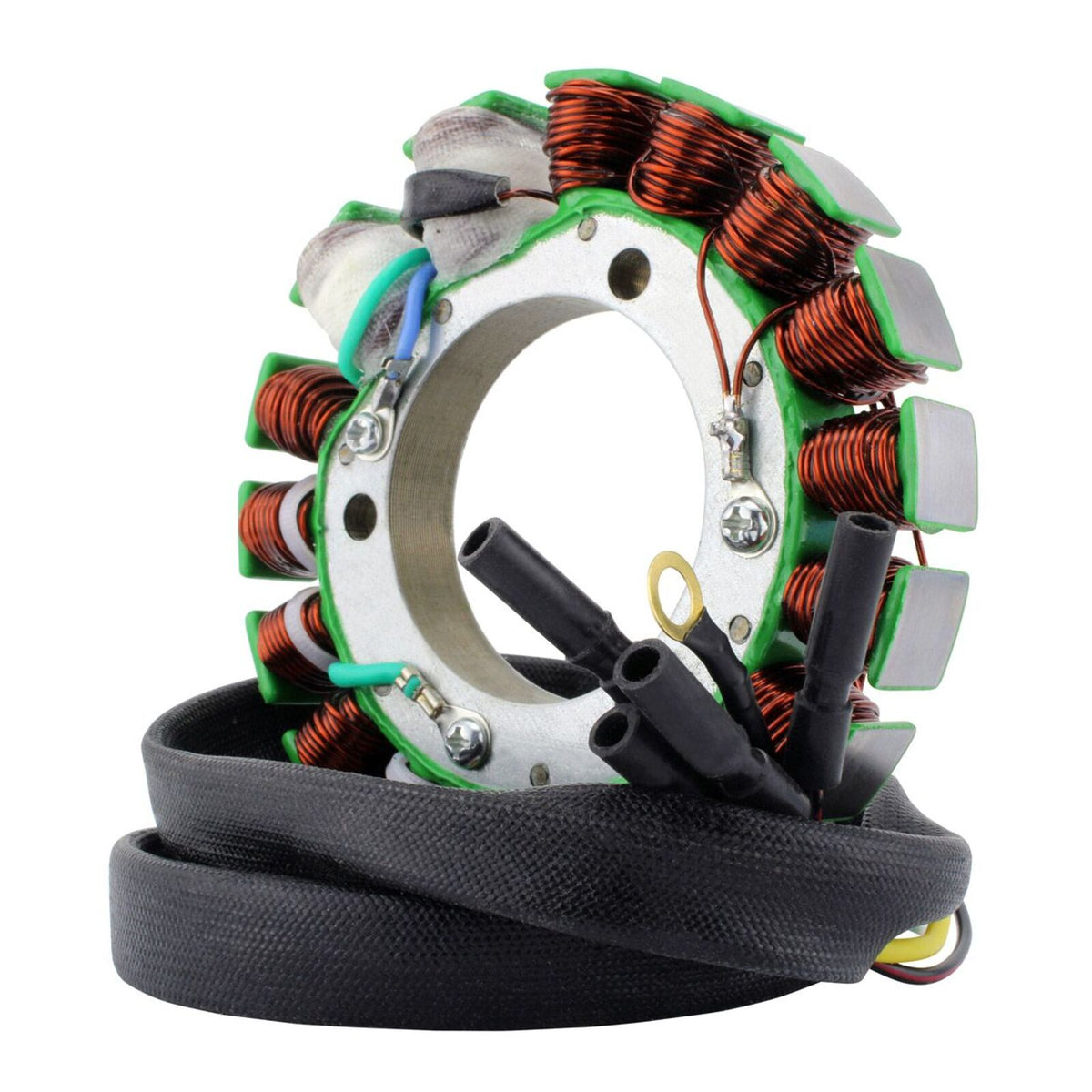

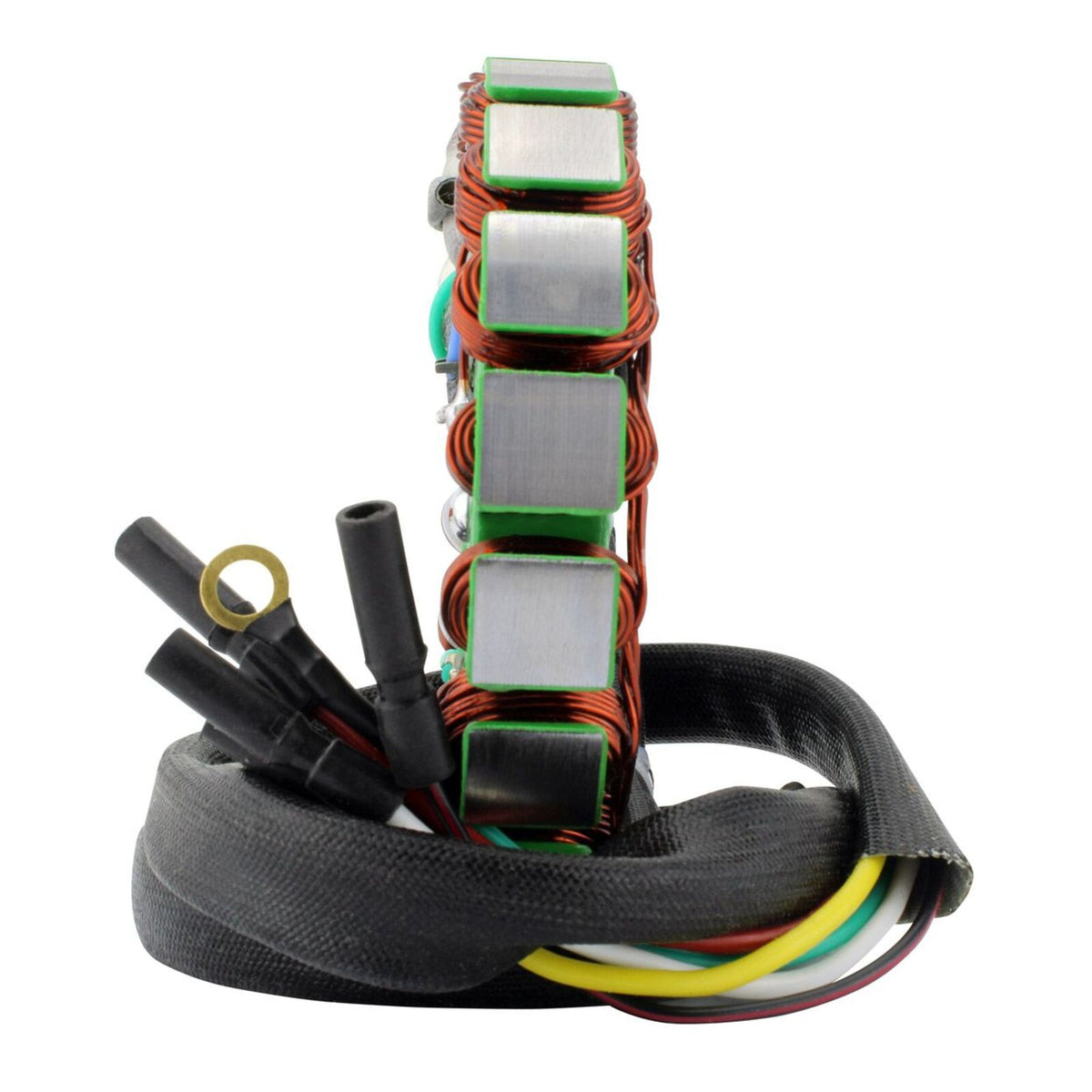

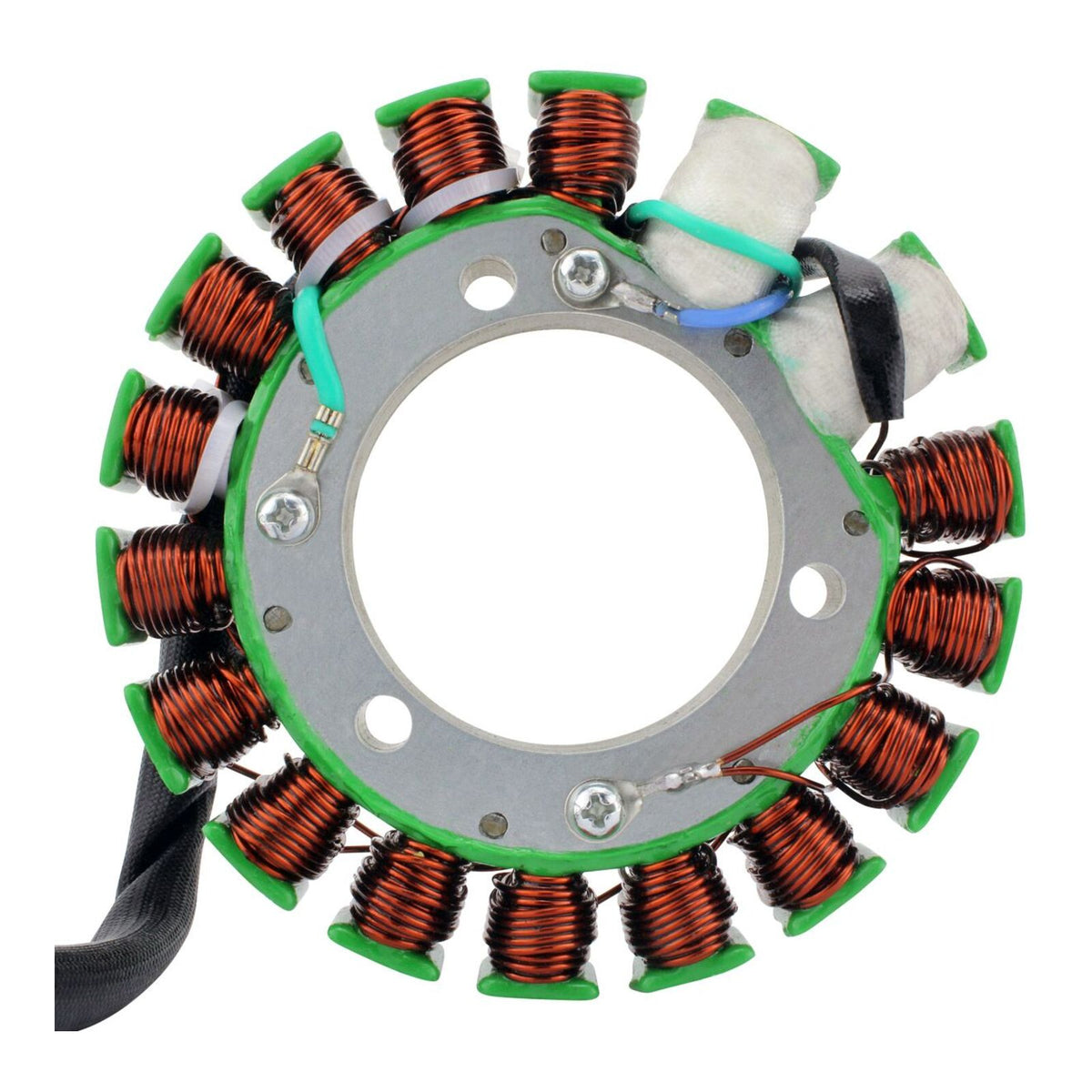

Brand new aftermarket High Output Stator 200W.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials

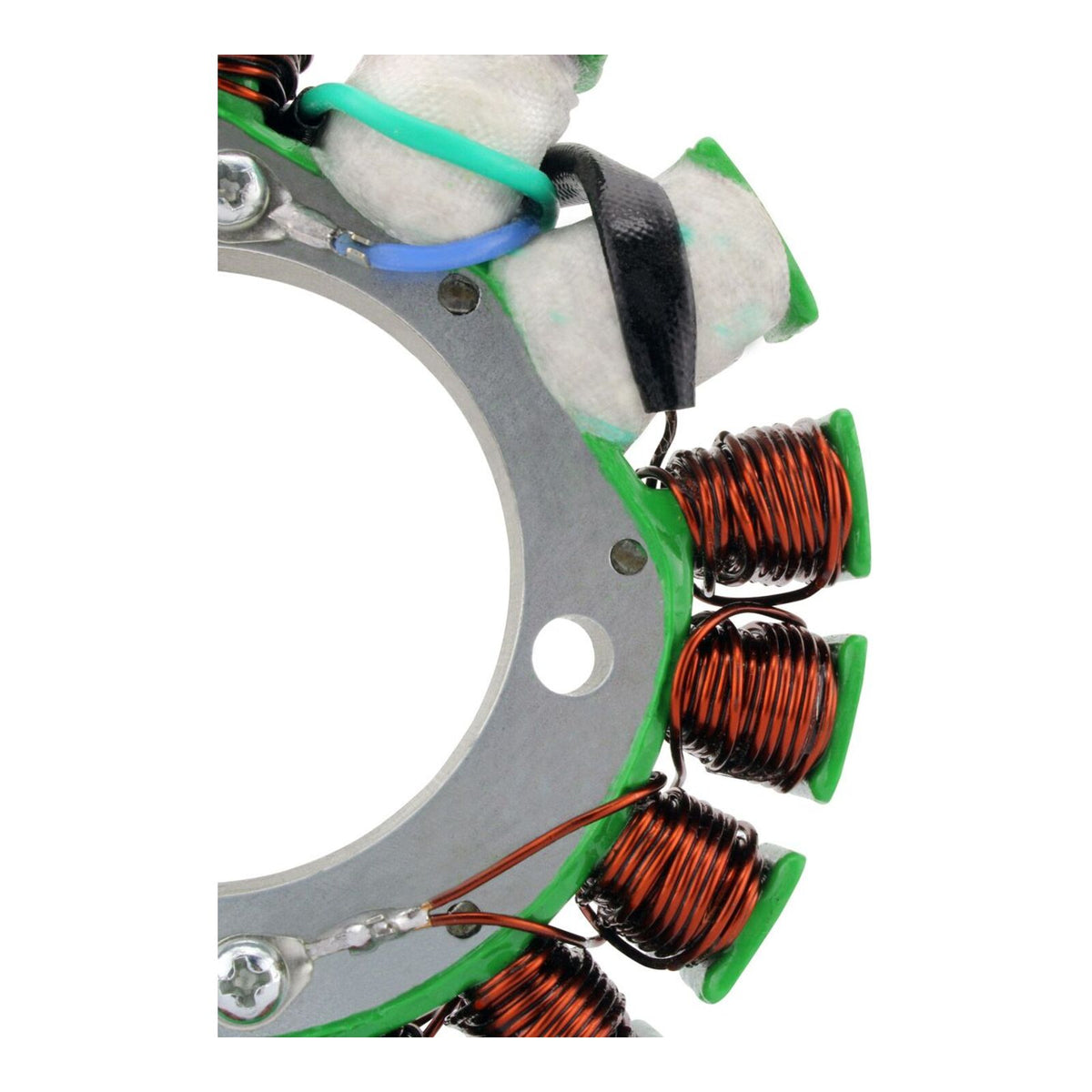

• Highest grade of copper winding, resistant to 200 degrees Celsius
• 2 x 100W

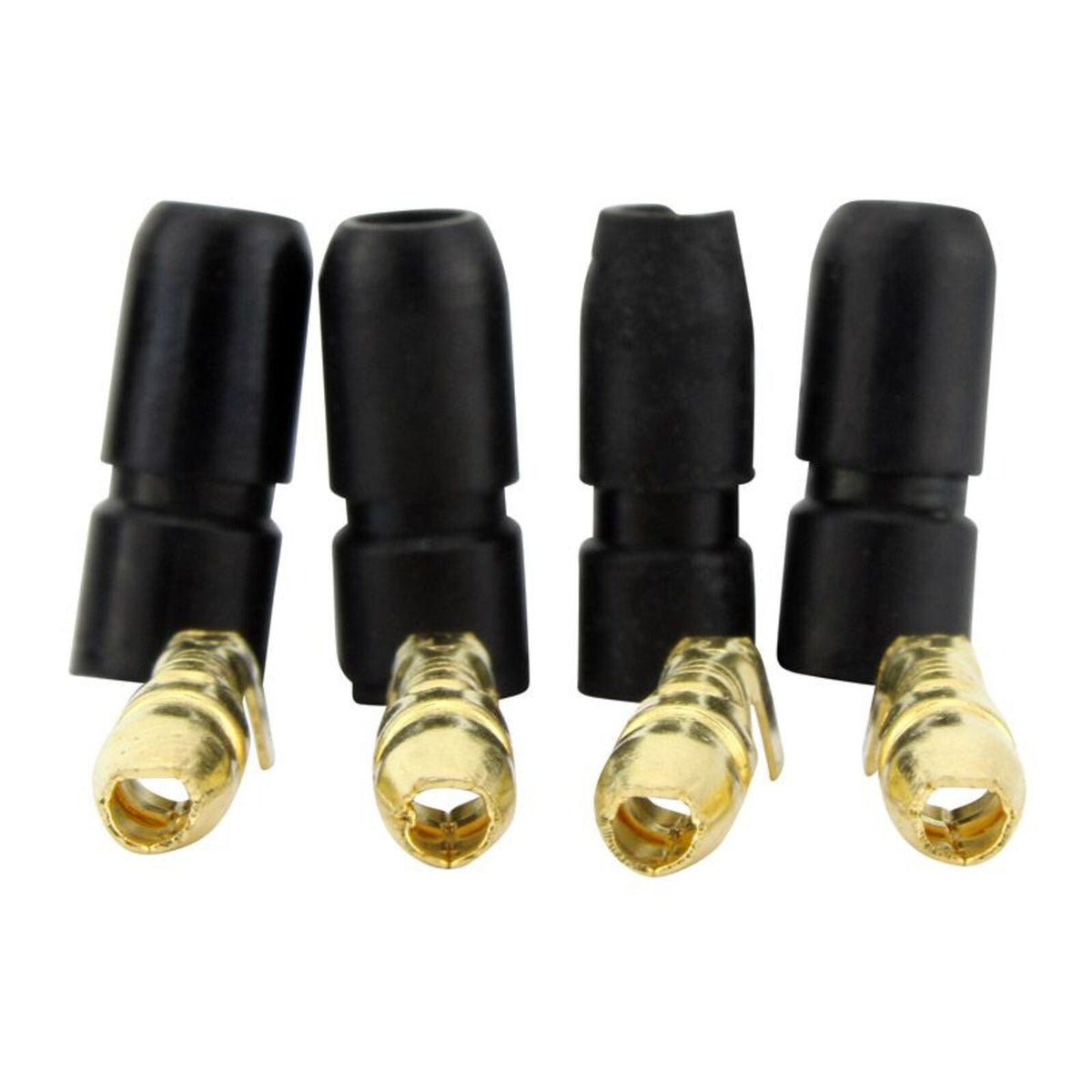

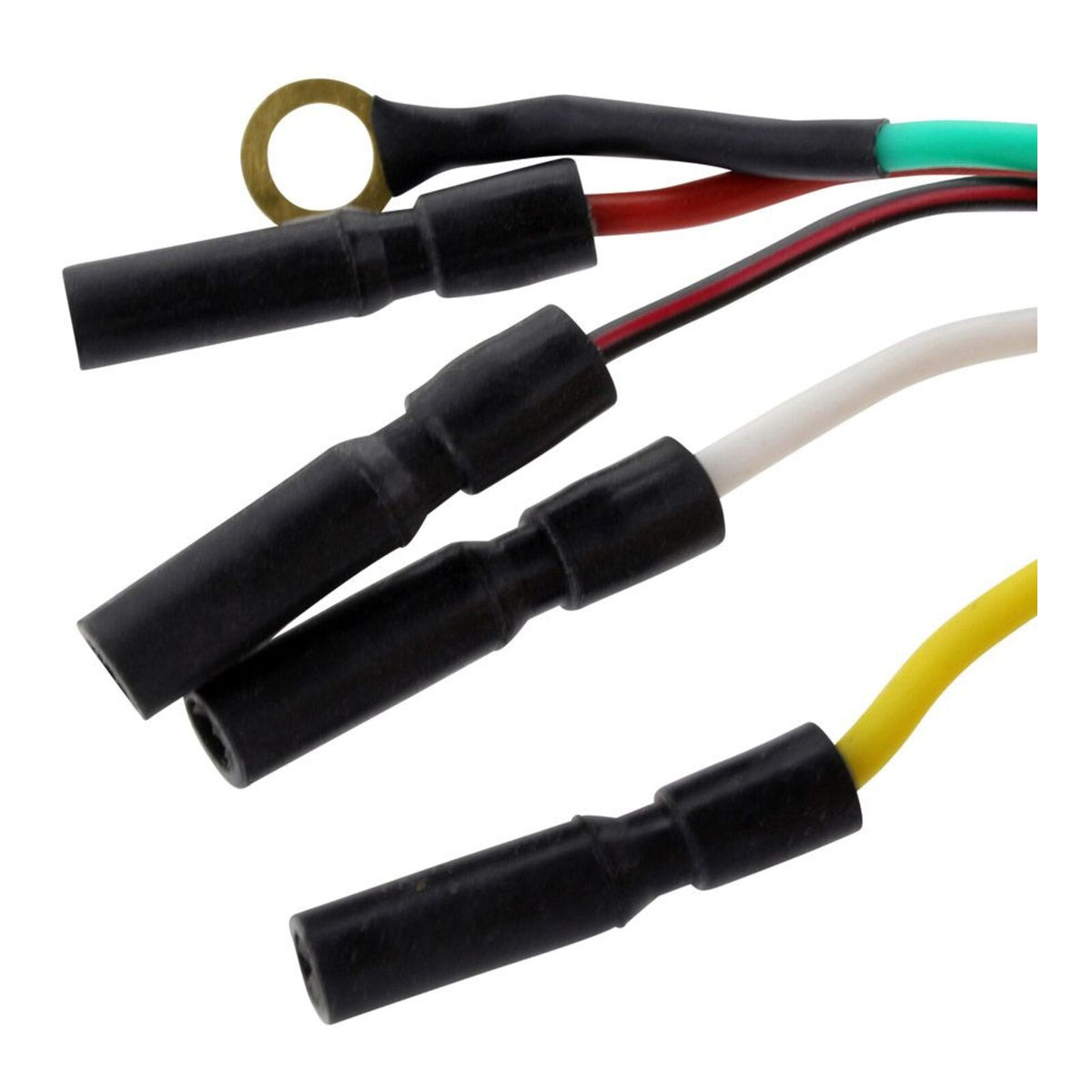

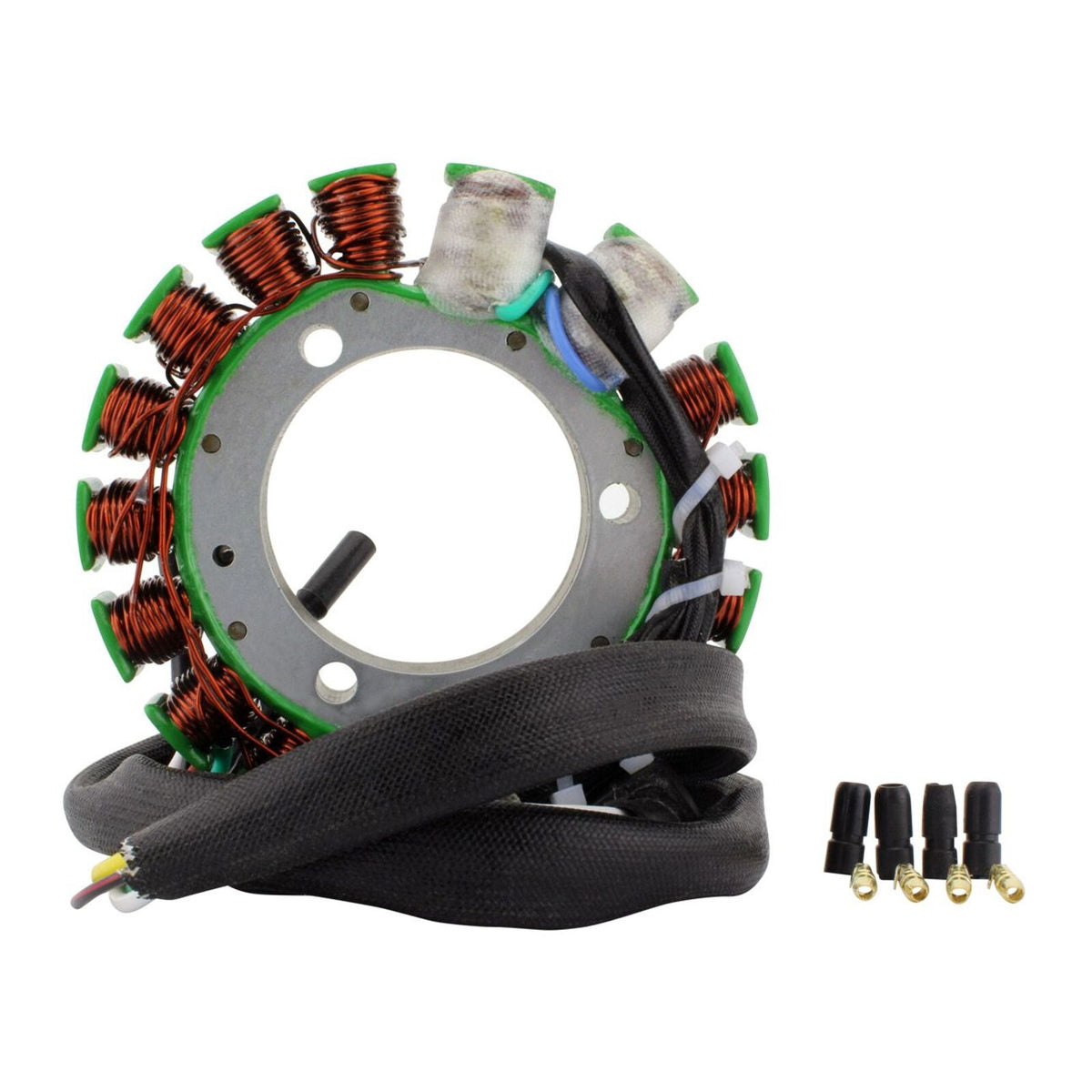

• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 115 mm
• Thickness: 15 mm
• Length of wires stator to grommet: 200 mm
• Length of wires grommet to plug: 700 mm

Other Specifications:

• Number of wires: 5
• Number of plugs: 5
• Number of pins: 3
• Number of poles: 17
• Wire to wire resistance:
• Alternator: White to Green = 0.4 ohms ±20%
• Alternator: Yellow to Red = 0.4 ohms ±20%
• Source: Black/Red to Green = 140 ohms ±20%
