GENERATOR STATOR HONDA TRX250X 09-21 (RMS010-107110)
RMS010107110
$389.99
Product Description

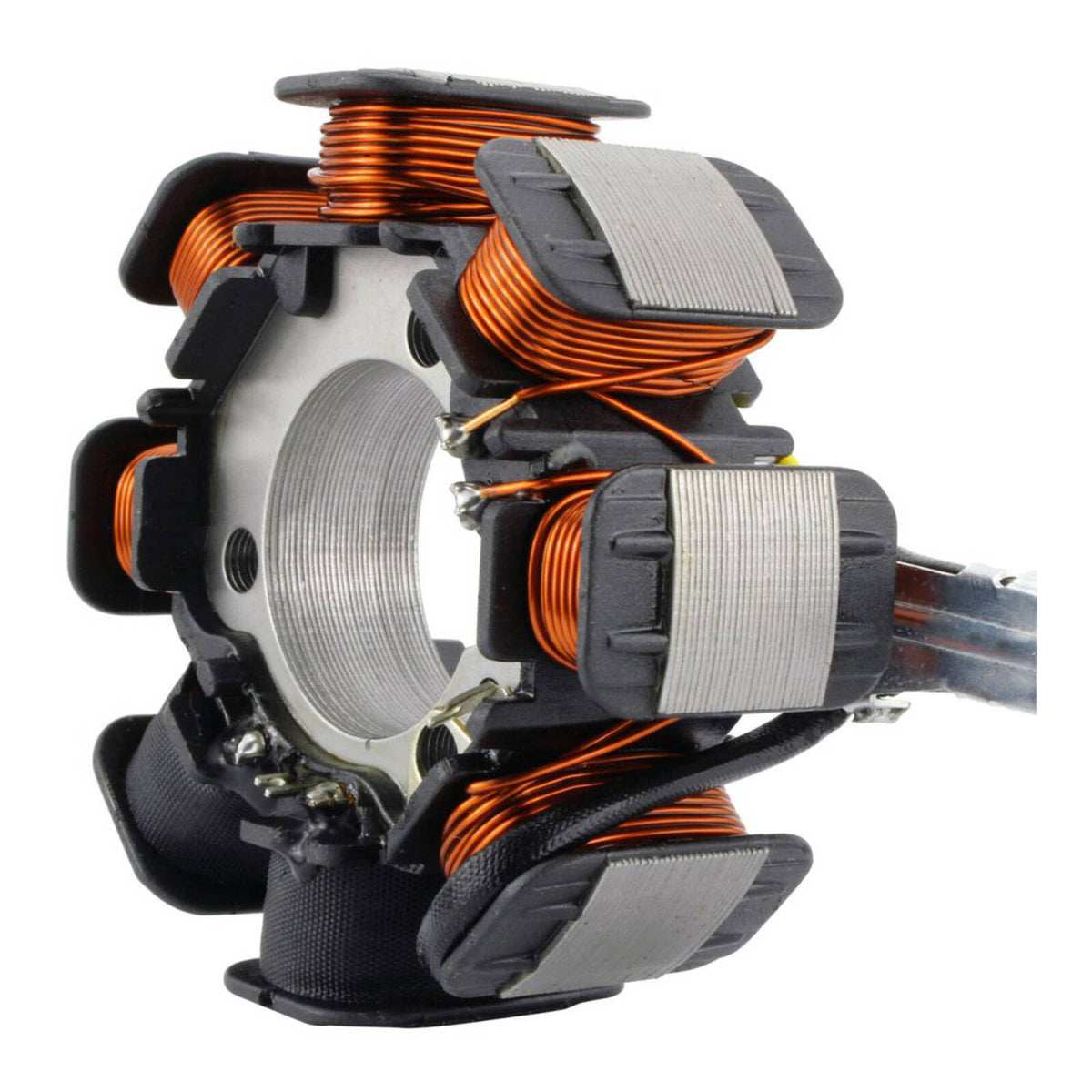

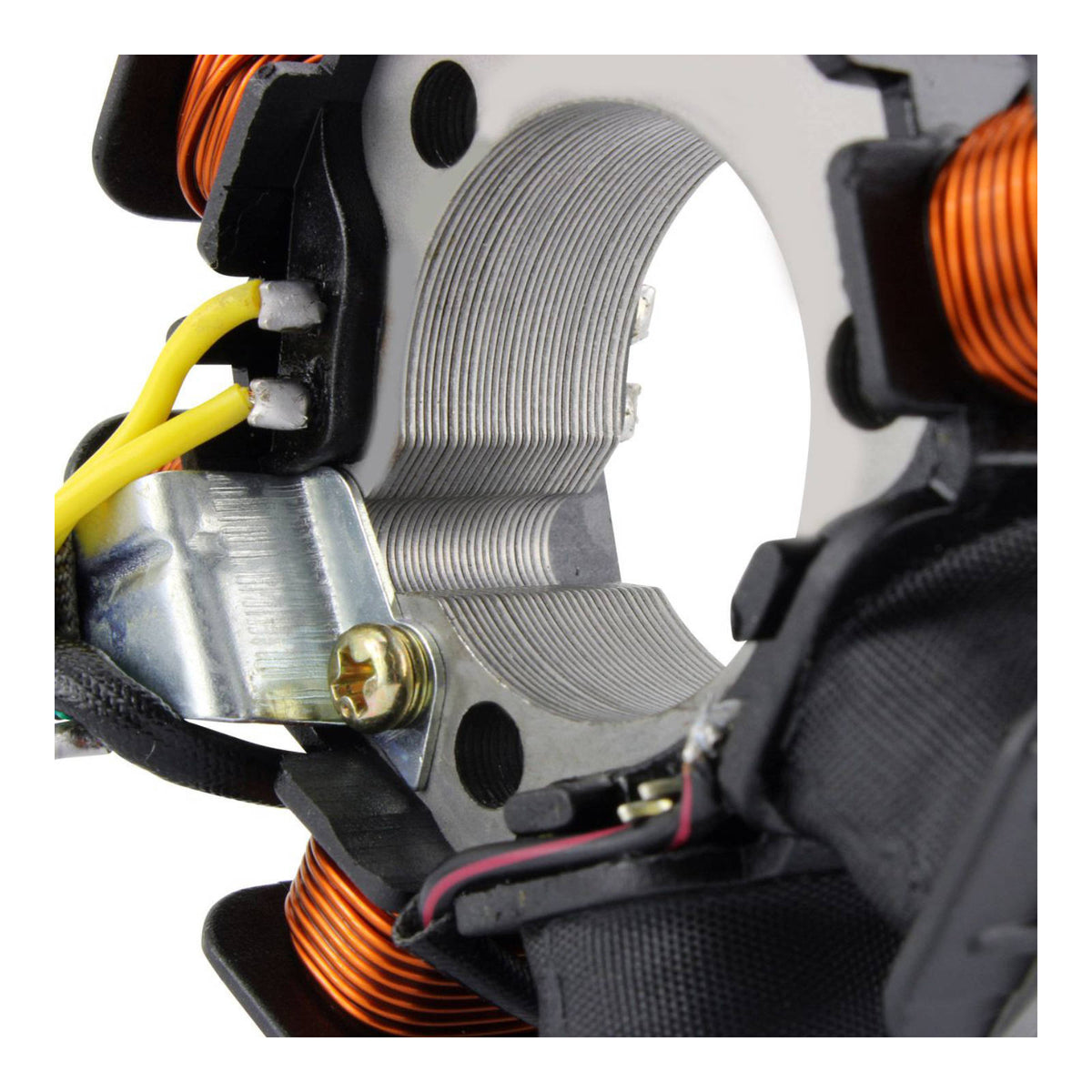

Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 35mm
- Exterior diameter: 88mm
- Thickness: 18mm
- Length of wires stator to grommet: 90mm
- Length of wires grommet to plug: 140mm
- Length of pickup coil's wire to grommet #1: 330mm
- Length of pickup coil's wire to grommet #2: 370mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 8
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.7 ohms +-20%
- Pickup: Blue/Yellow to Ground = 336 ohms +-20%
- Pickup: Black/Red to Ground = 185 ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

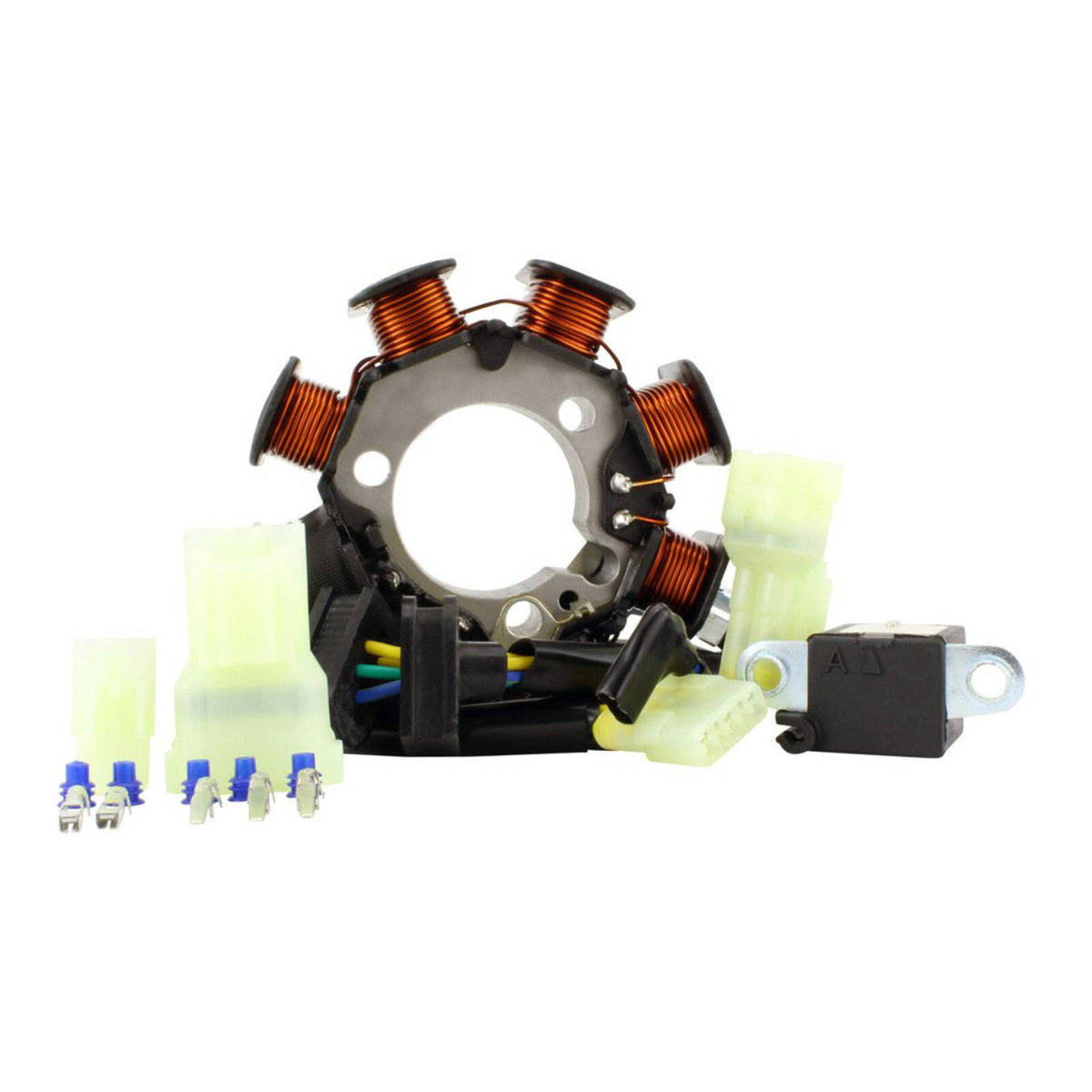

- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
