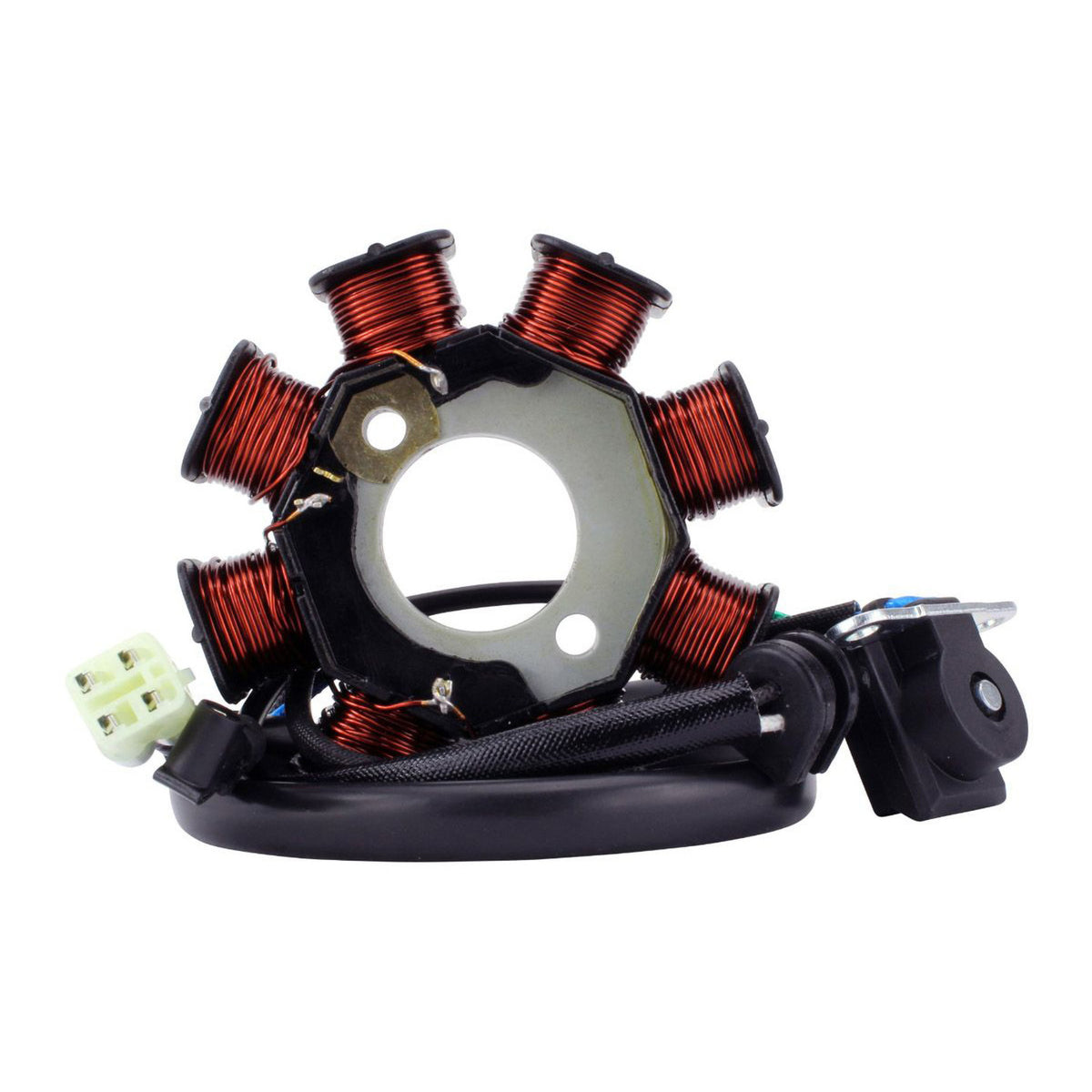

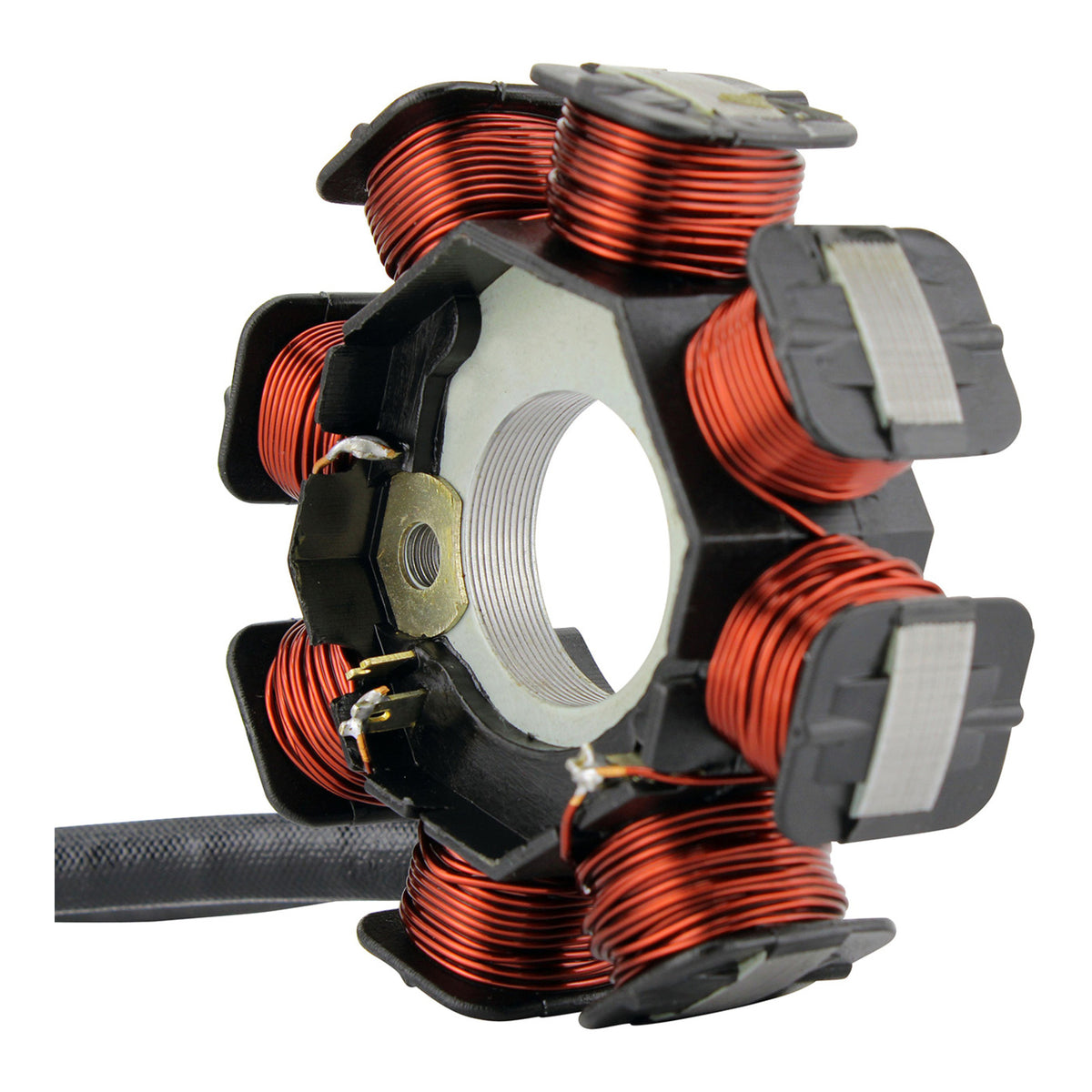

GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)
$319.99
Skip to product information
5 left
GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)
RMS010107080
$319.99
Product Description
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions :
- Interior diameter: 29 mm
- Exterior diameter: 88 mm
- Thickness: 10 mm
- Length of wires stator to grommet: 110 mm
- Length of wires grommet to plug: 475, 100 mm
- Length of pickup coil's wire to grommet: 145 mm
Other specifications :
- Number of wires: 4
- Number of plugs: 2
- Number of holes: 2
- Number of poles: 8
- Alternator : White to Ground = 1.1 ohms +-20%
- Pickup: Blue/yellow to Ground = 119 ohms +-20%
