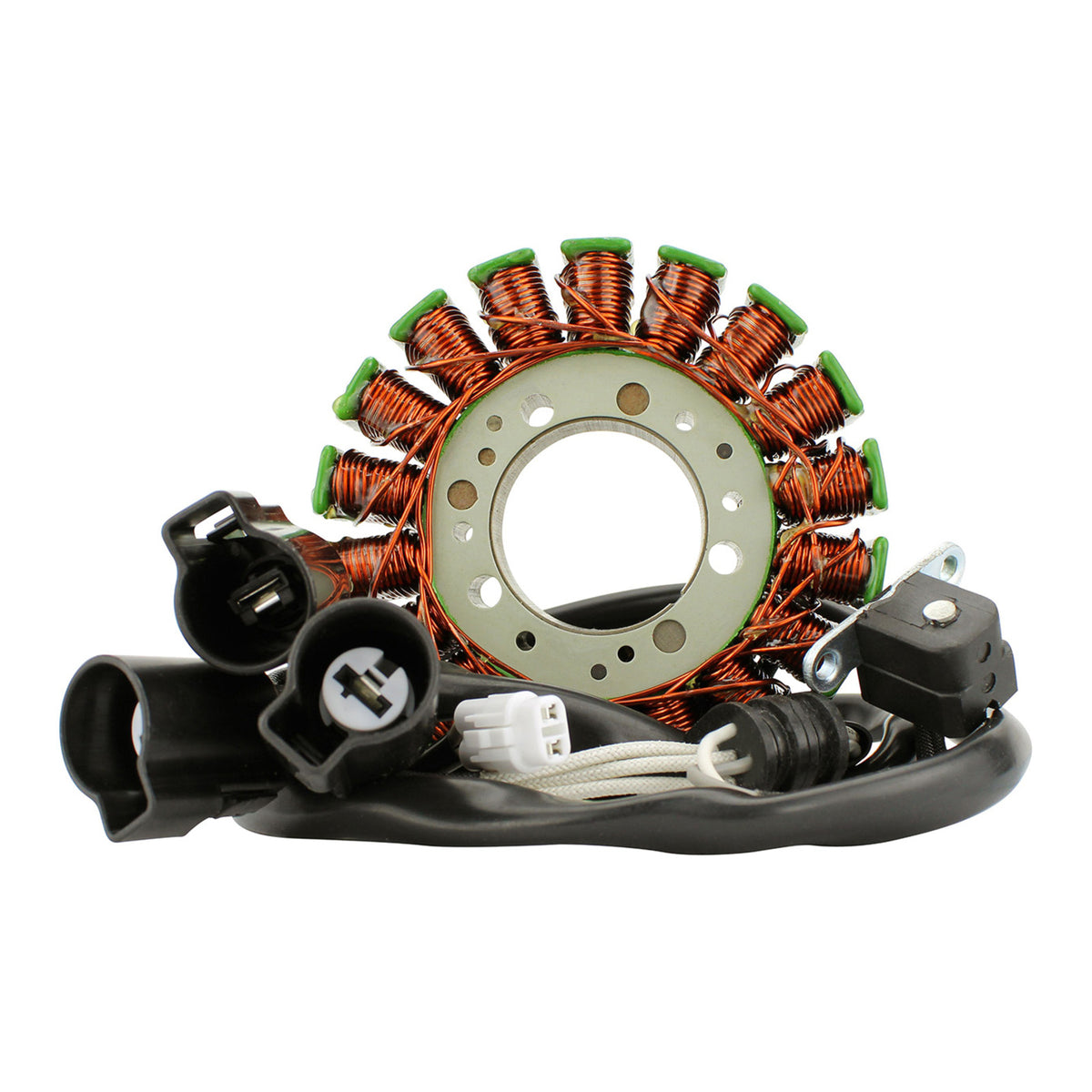

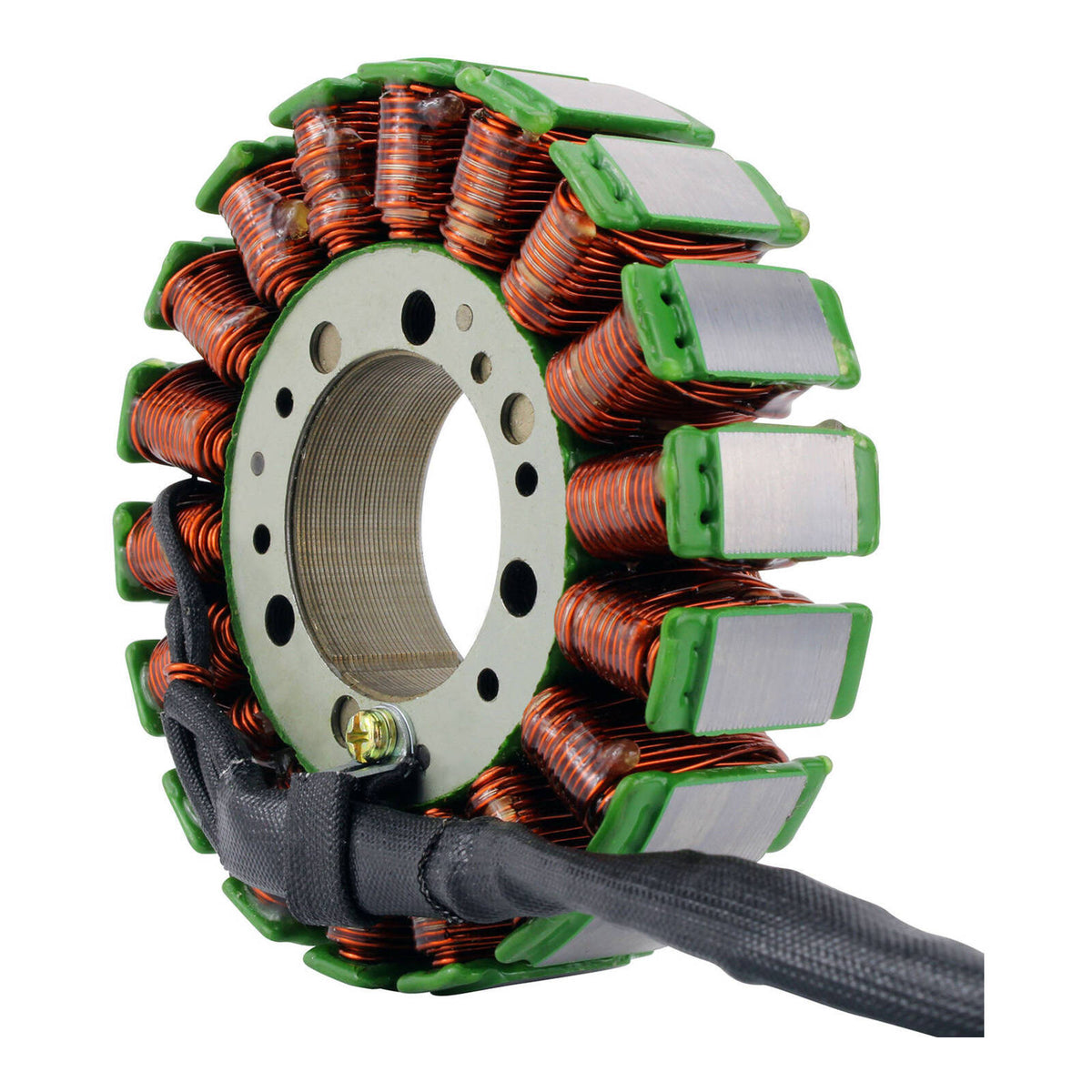

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)
$479.99
Skip to product information
2 left
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 23 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 1020 mm
Length of pickup coil's wire to grommet: 110 mm
GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)
RMS010107076
$479.99
Product Description
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 5
- Number of plugs: 4
- Number of pins: 5
- Number of poles: 18
Wire-to-wire resistance:
- Alternator: White to White = 0.5 ohms +-20%
- Pickup: Black to Grey = 512 ohms +-20%
