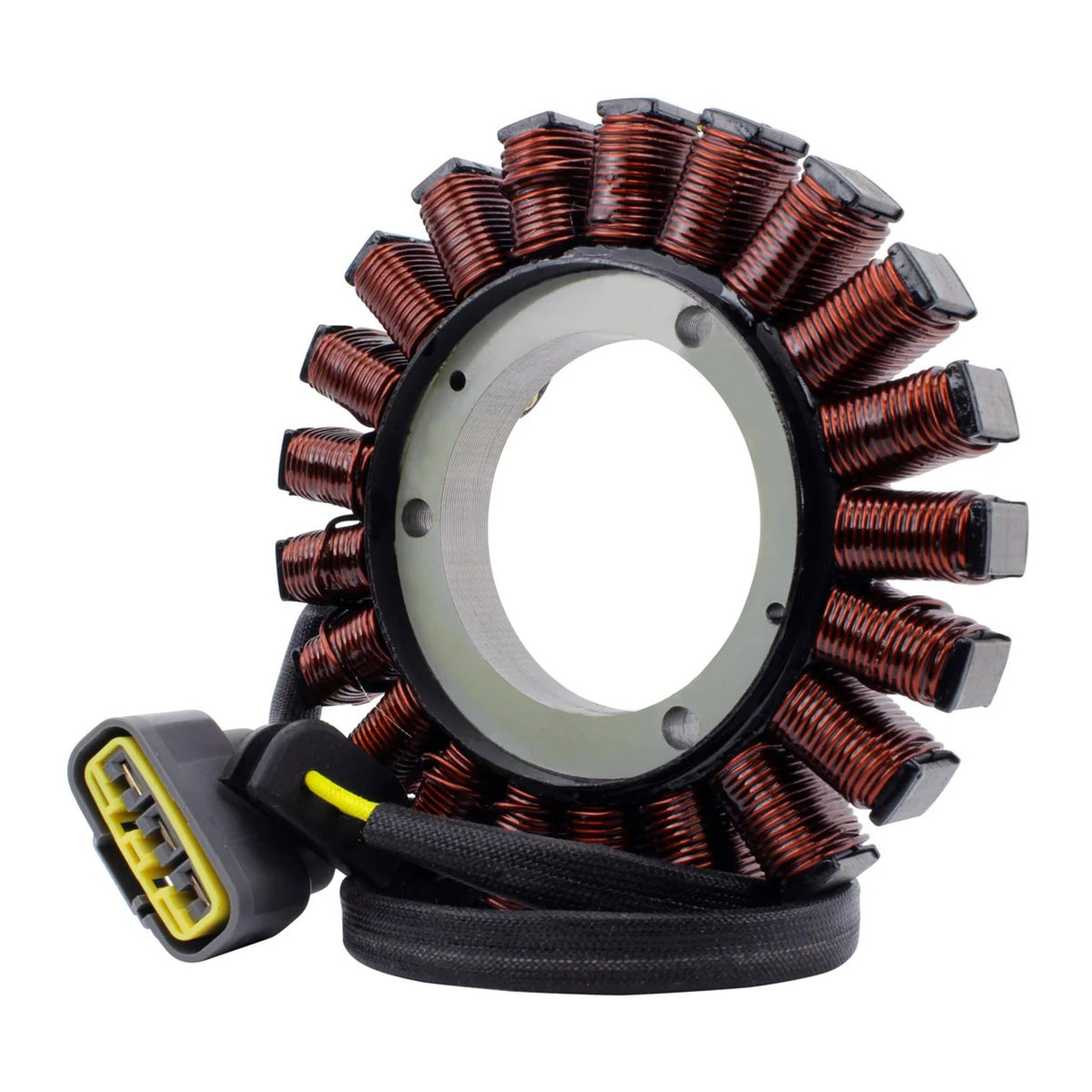

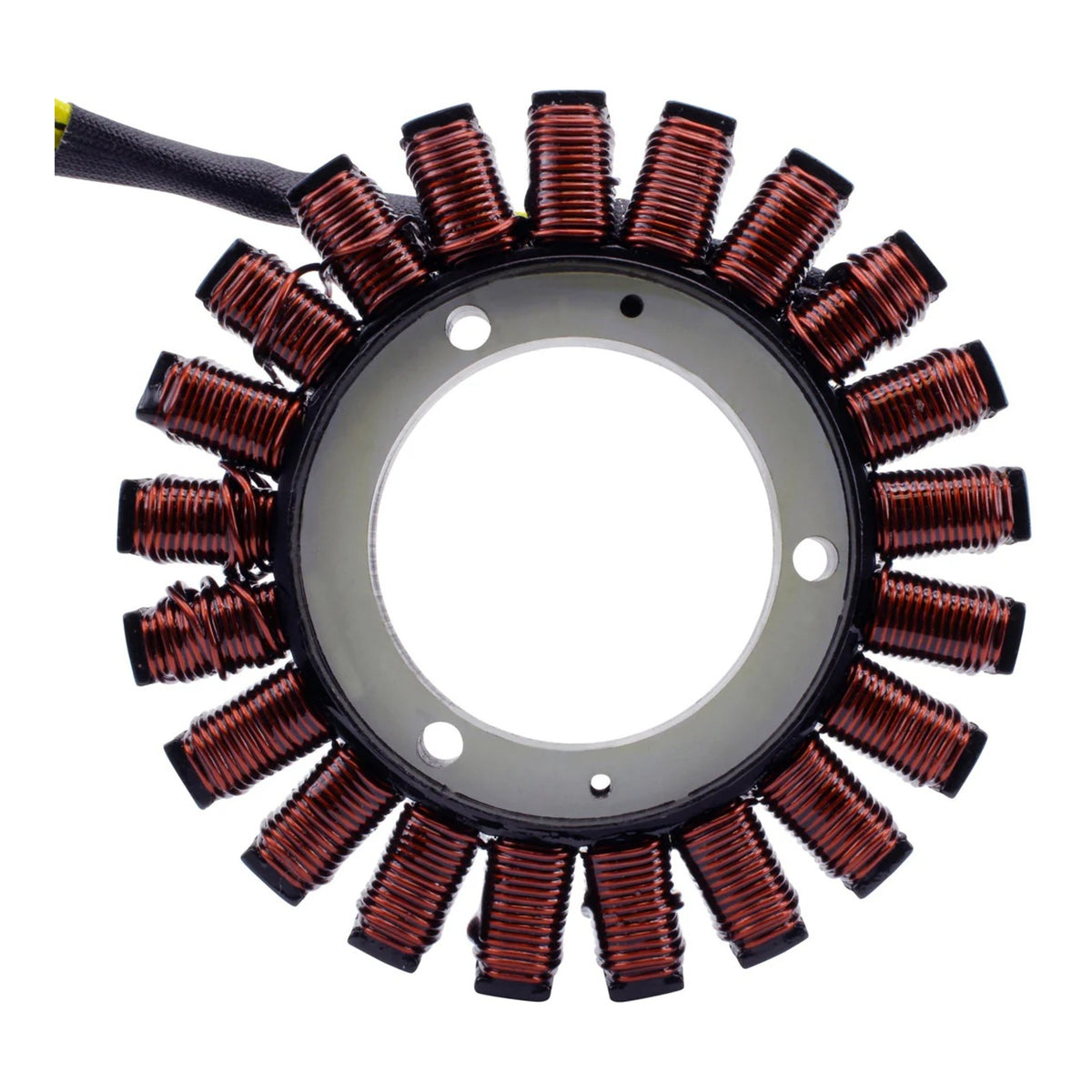

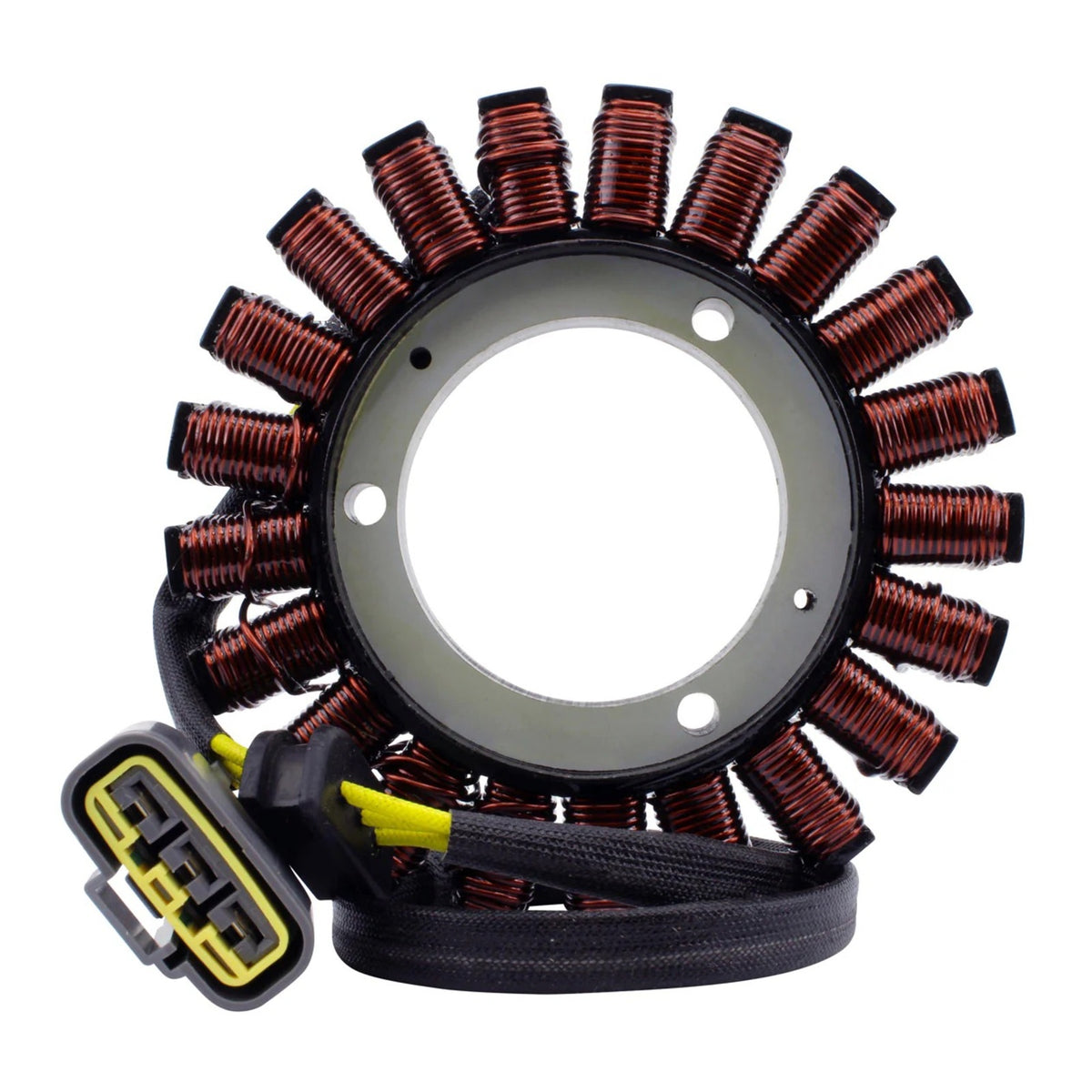

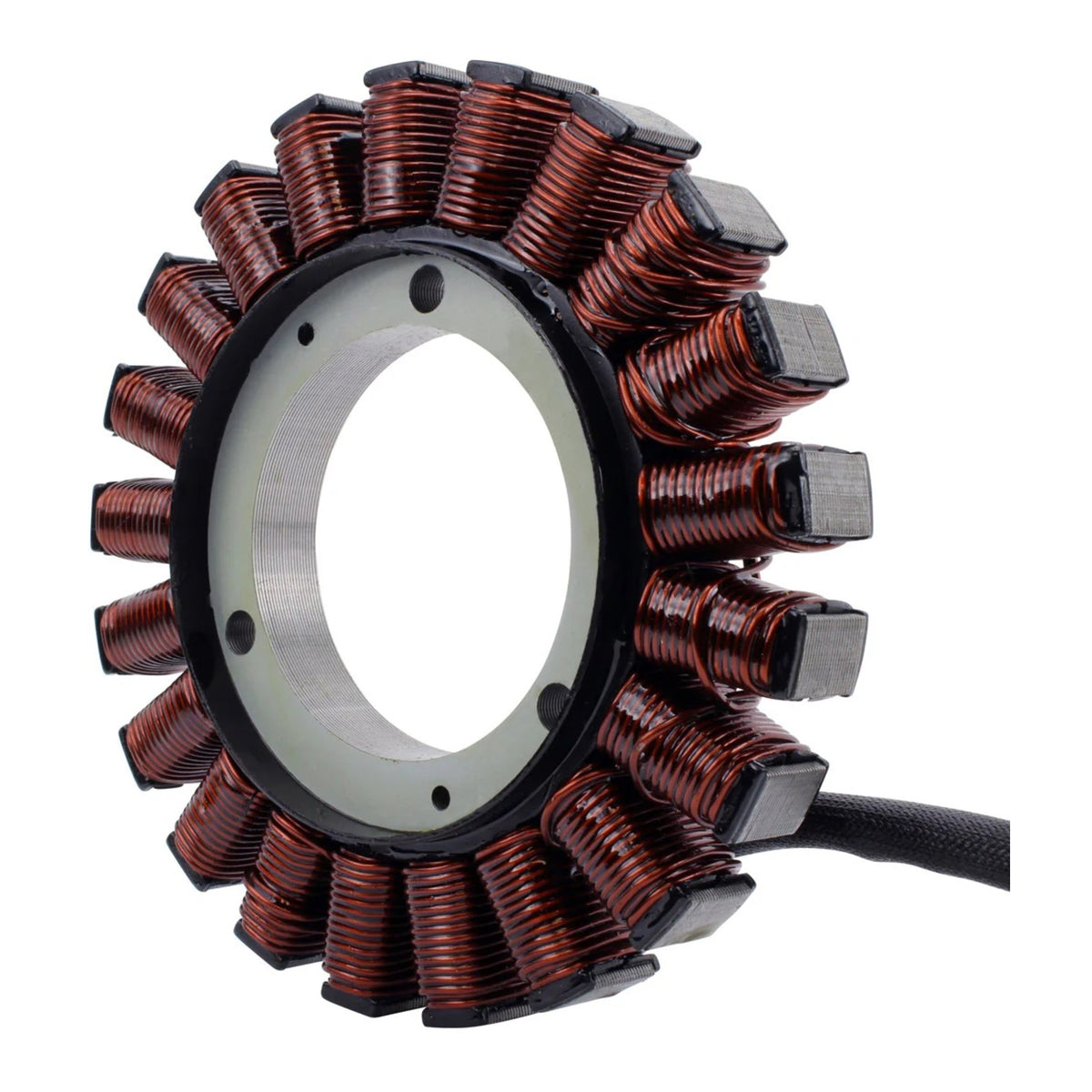

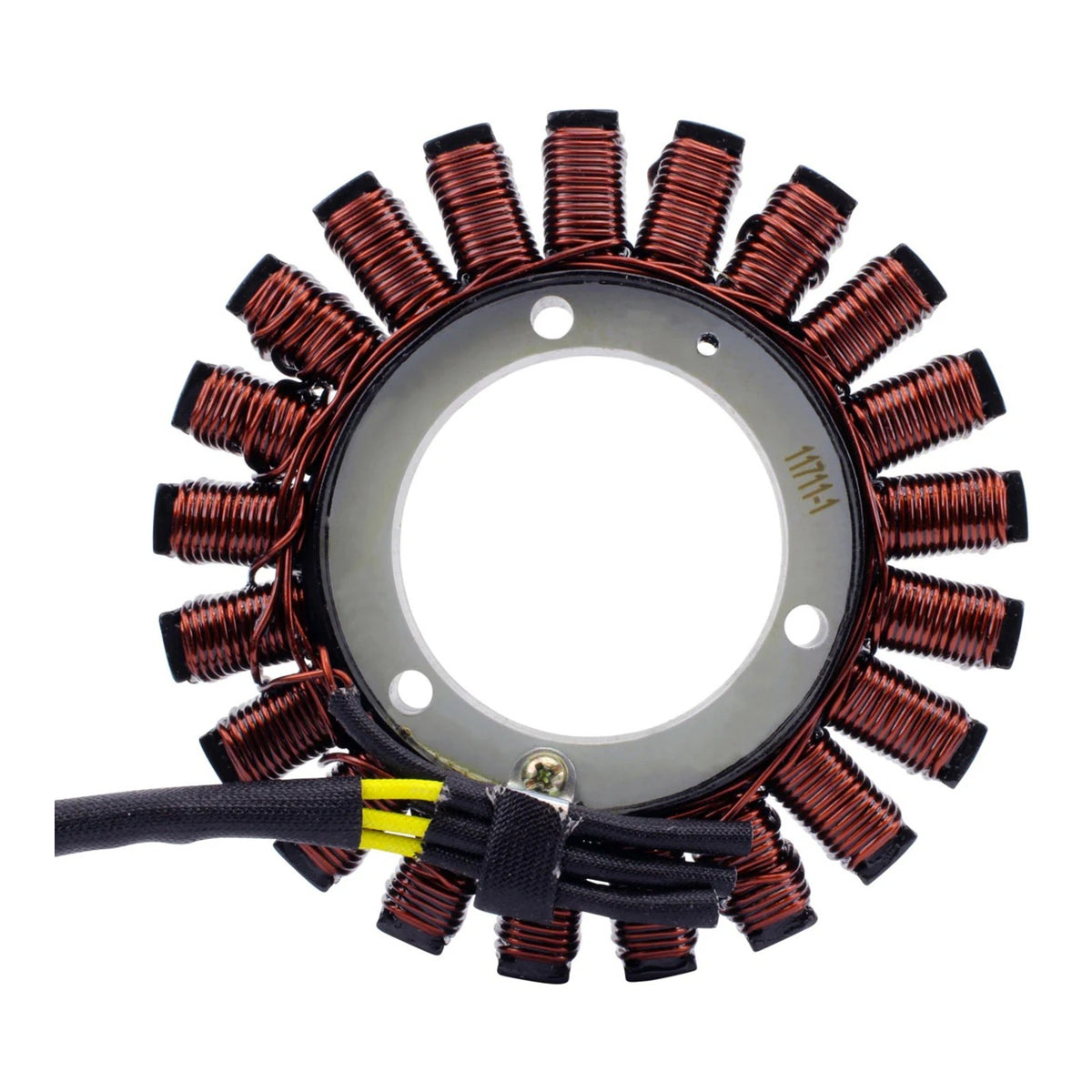

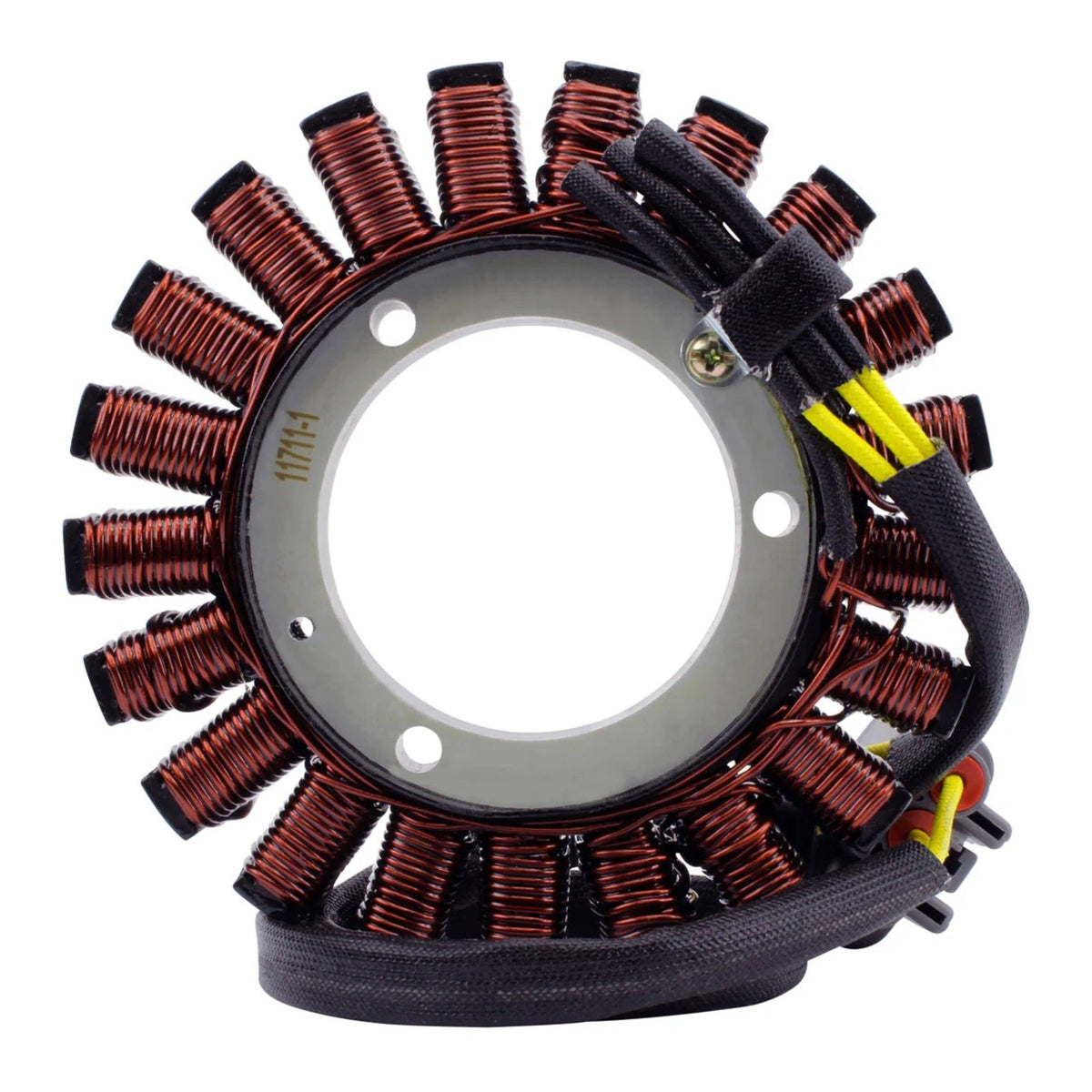

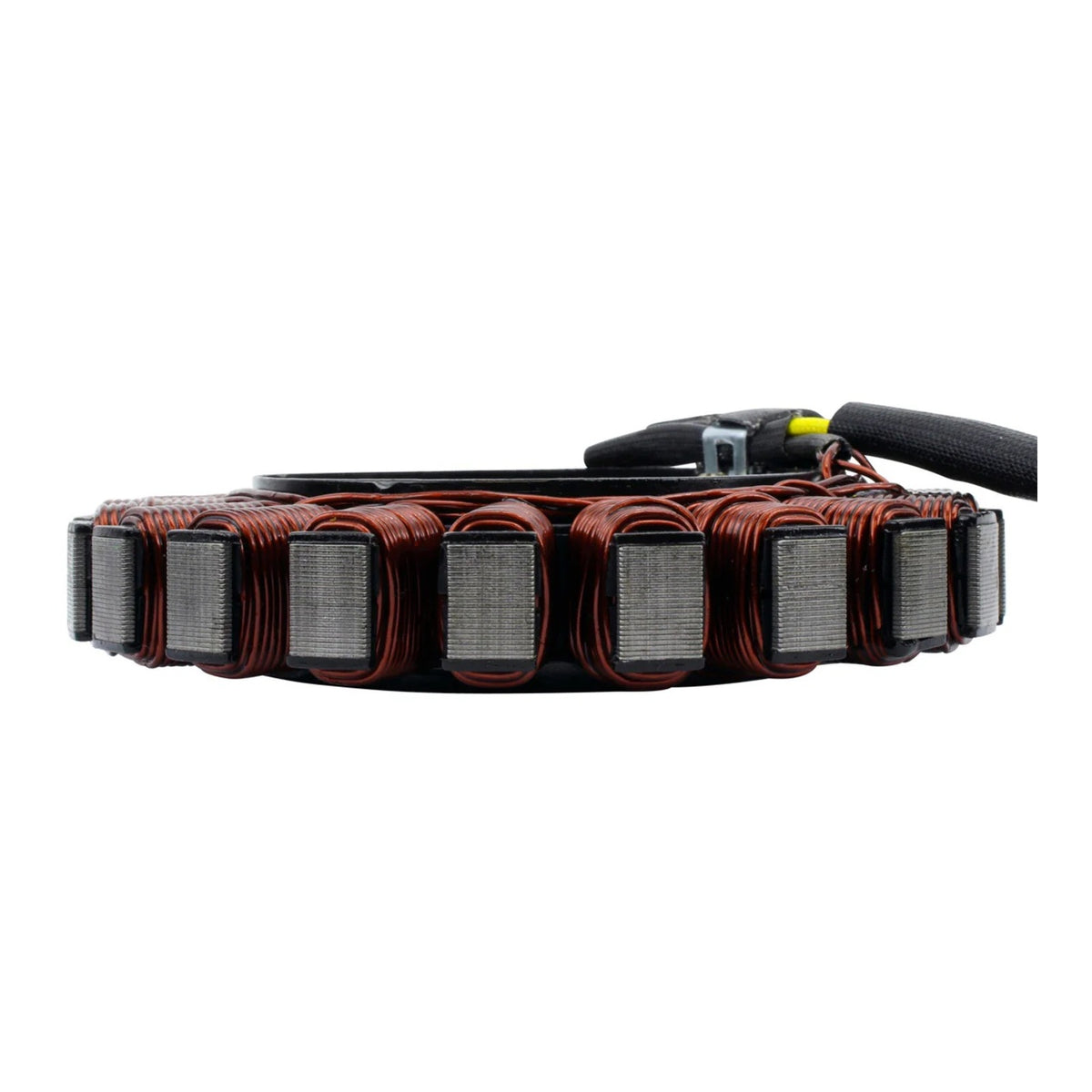

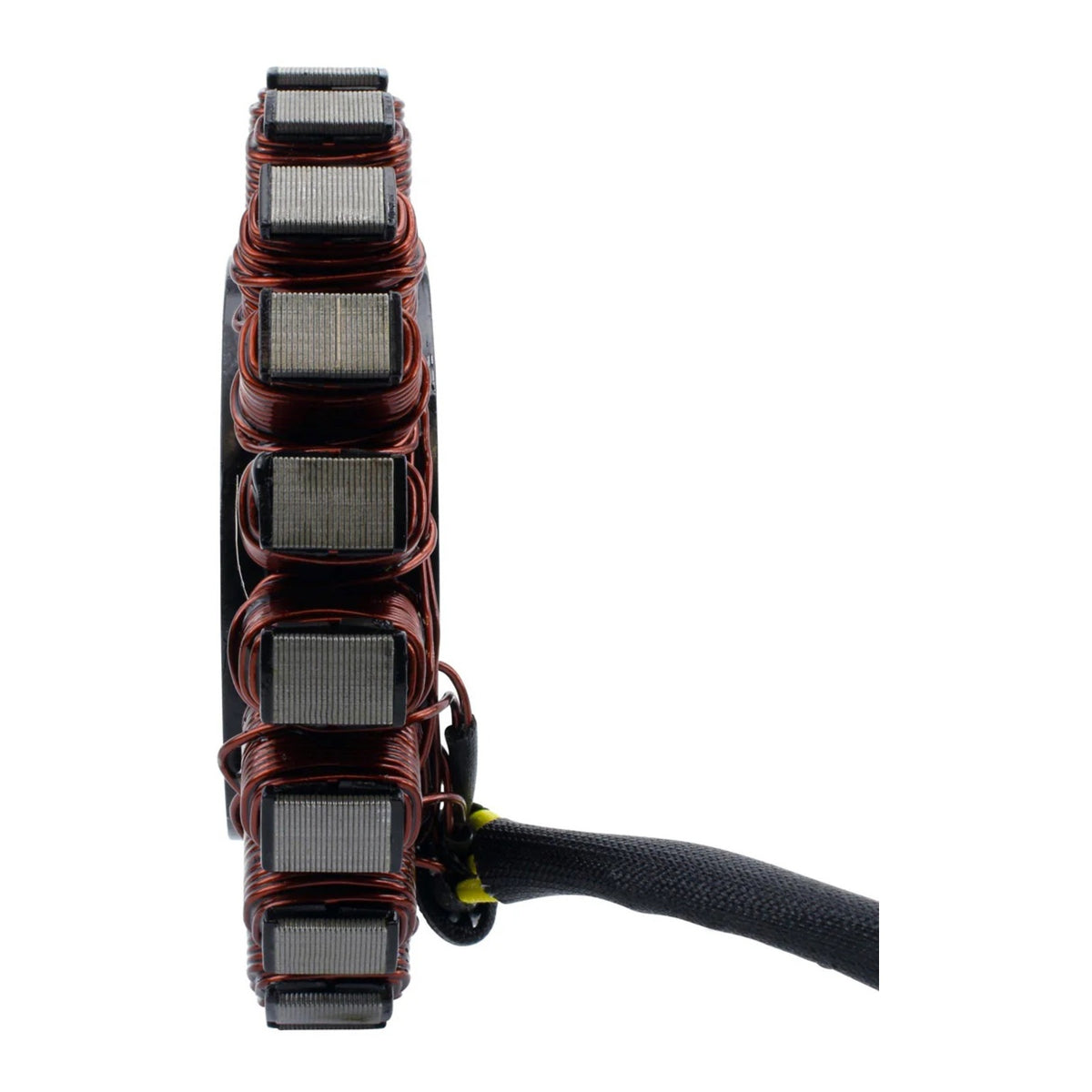

RMStator Stator BMW R1200 Models '12-'18 (RMS010-105024)
$499.99
Skip to product information
4 left
RMStator Stator BMW R1200 Models '12-'18 (RMS010-105024)
RMS010105024
$499.99
Product Description
Brand new aftermarket Stator.
Features:
- Direct replacement of your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

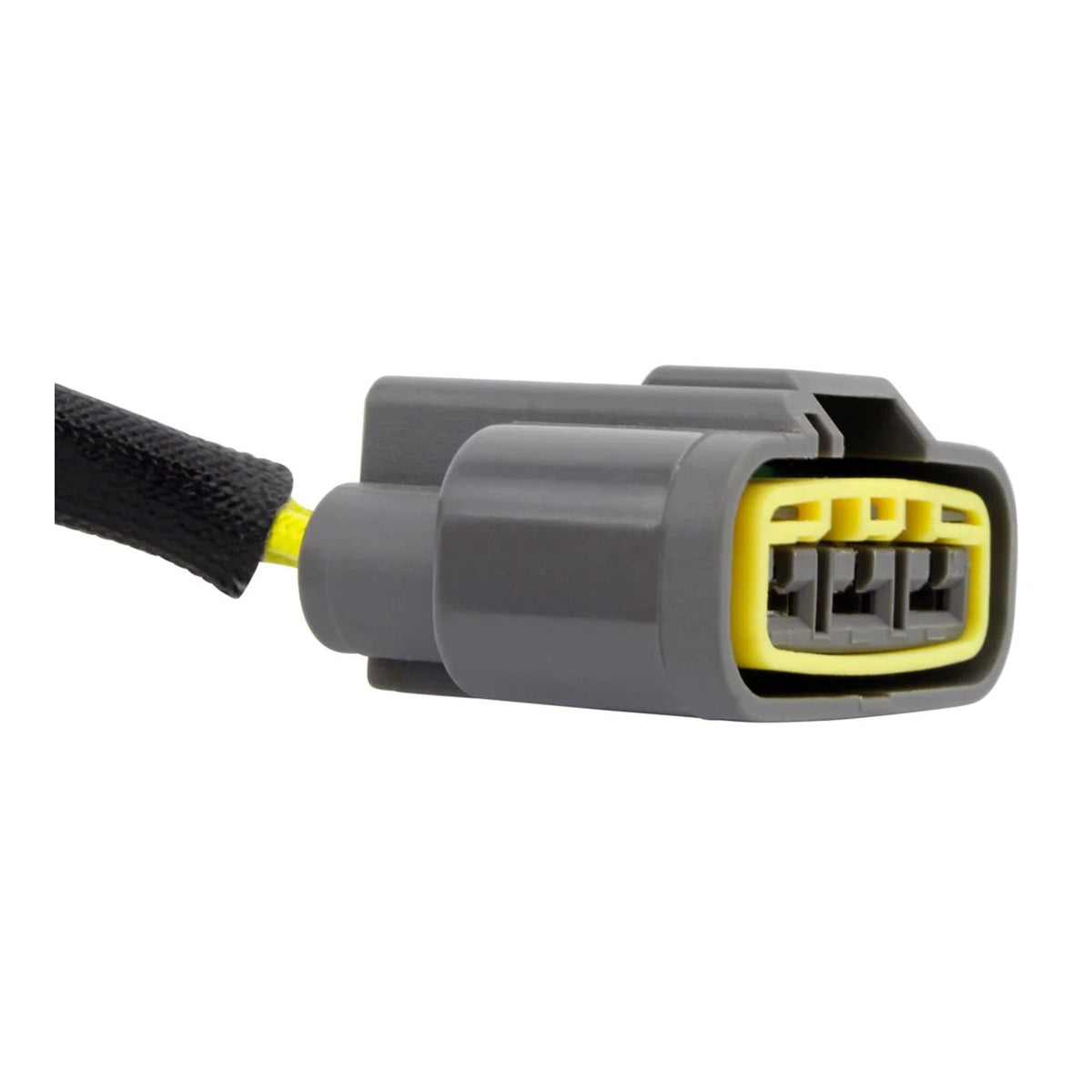

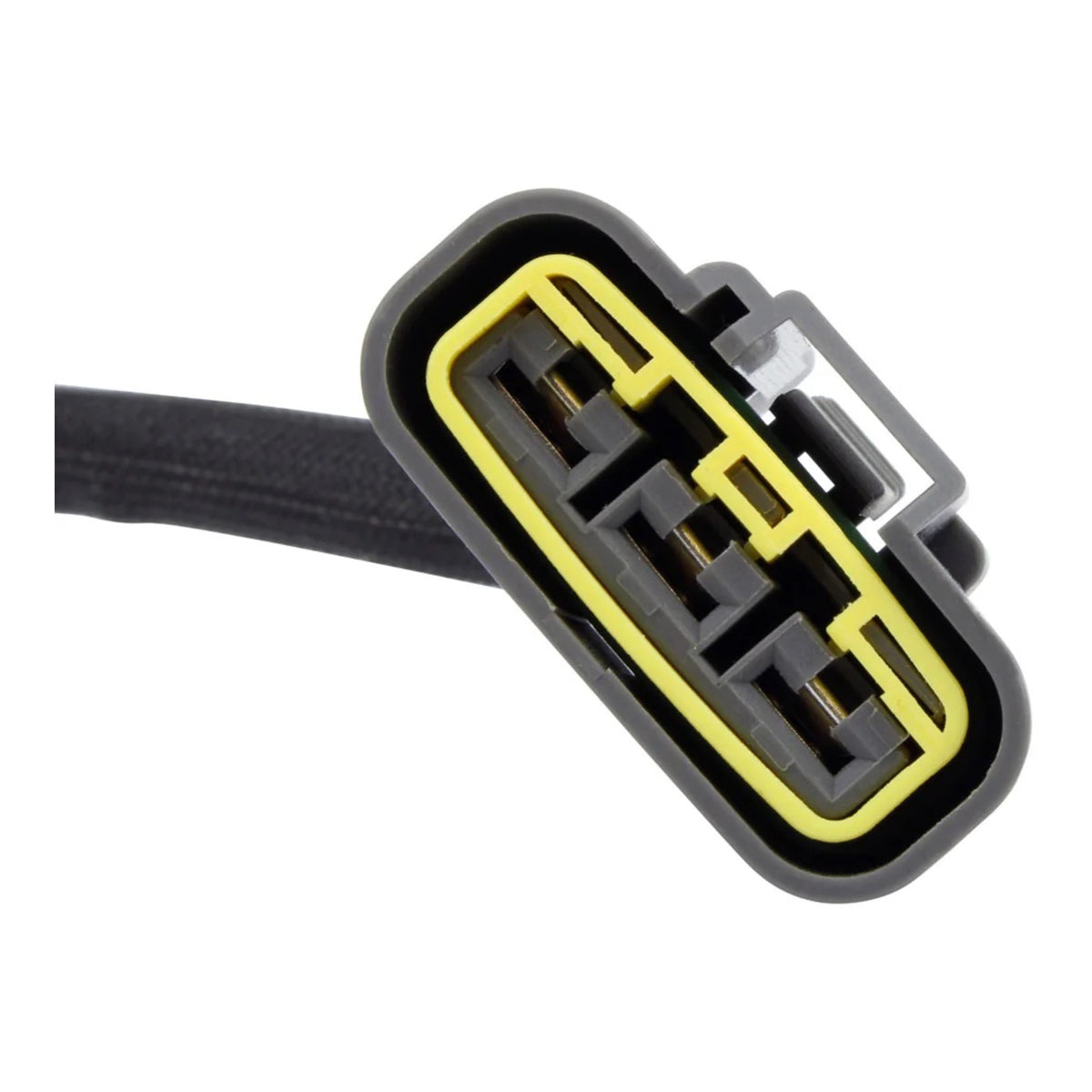

- Connectors included.

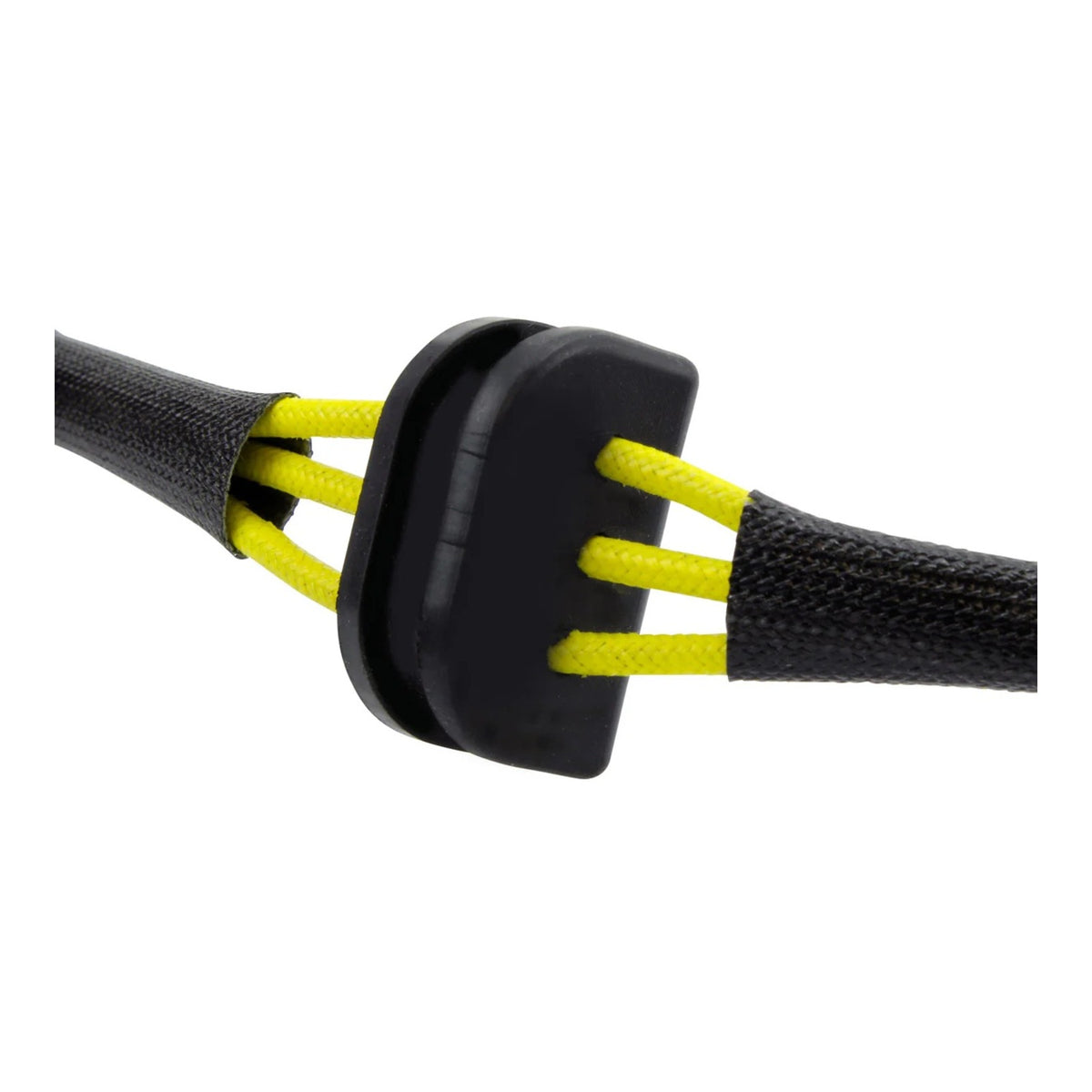

- Rubber grommet included.
- All products shipped are tested.
Specifications:
- Dimensions:
- Interior diameter: 60 mm
- Exterior diameter:133 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 68 mm
- Length of wires grommet to plug: 470 mm
- Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 21
- Wire-to-wire resistance:
- Alternator 3p: Between each Yellow = 0.4 ohms +-20%
