Generator Stator - Yamaha WR250F '05–'13

Generator Stator - Yamaha WR250F '05–'13

$249.99
Skip to product information
Generator Stator - Yamaha WR250F '05–'13

RMSTATOR

Generator Stator - Yamaha WR250F '05–'13

RMS010100184
$249.99
3 left
Product Description

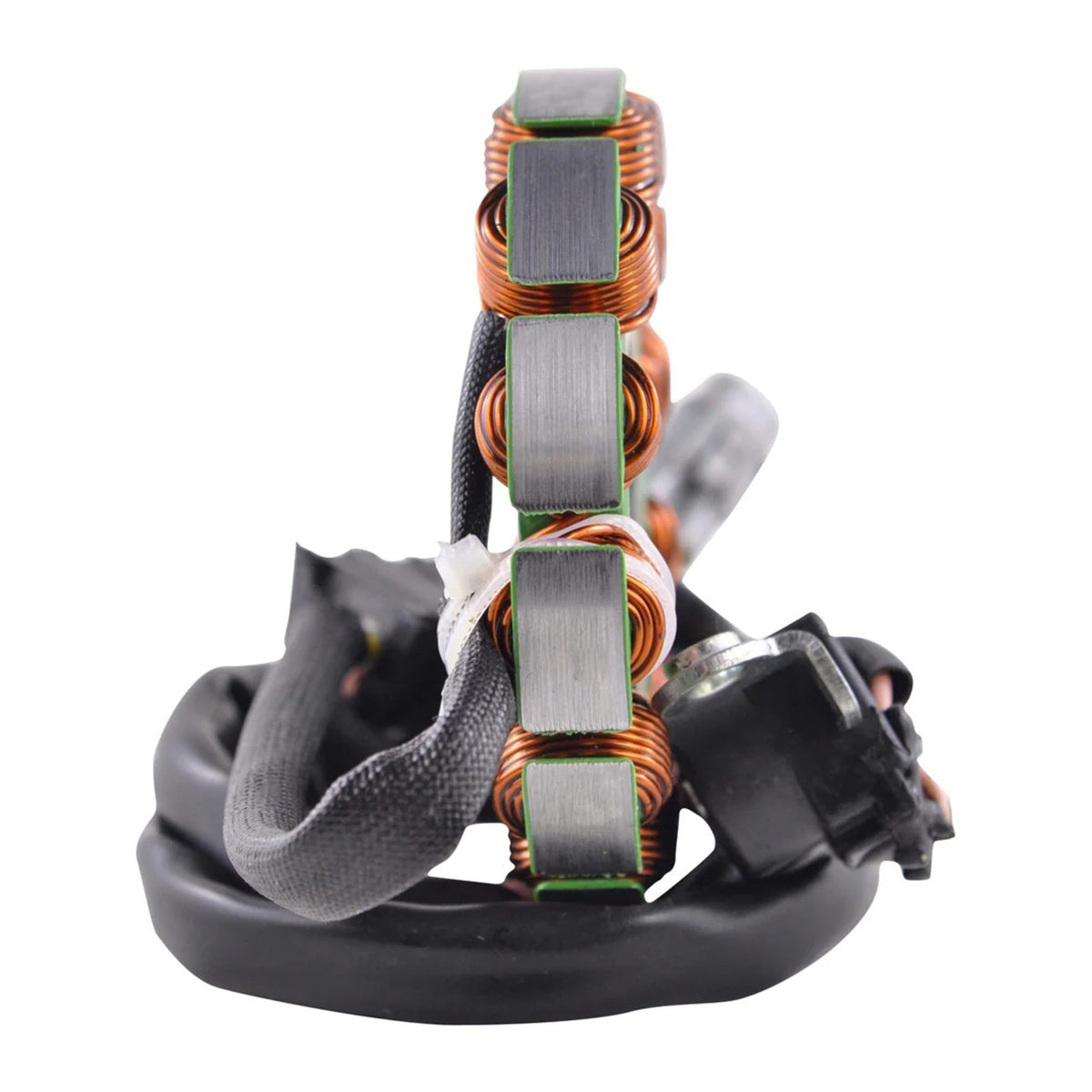

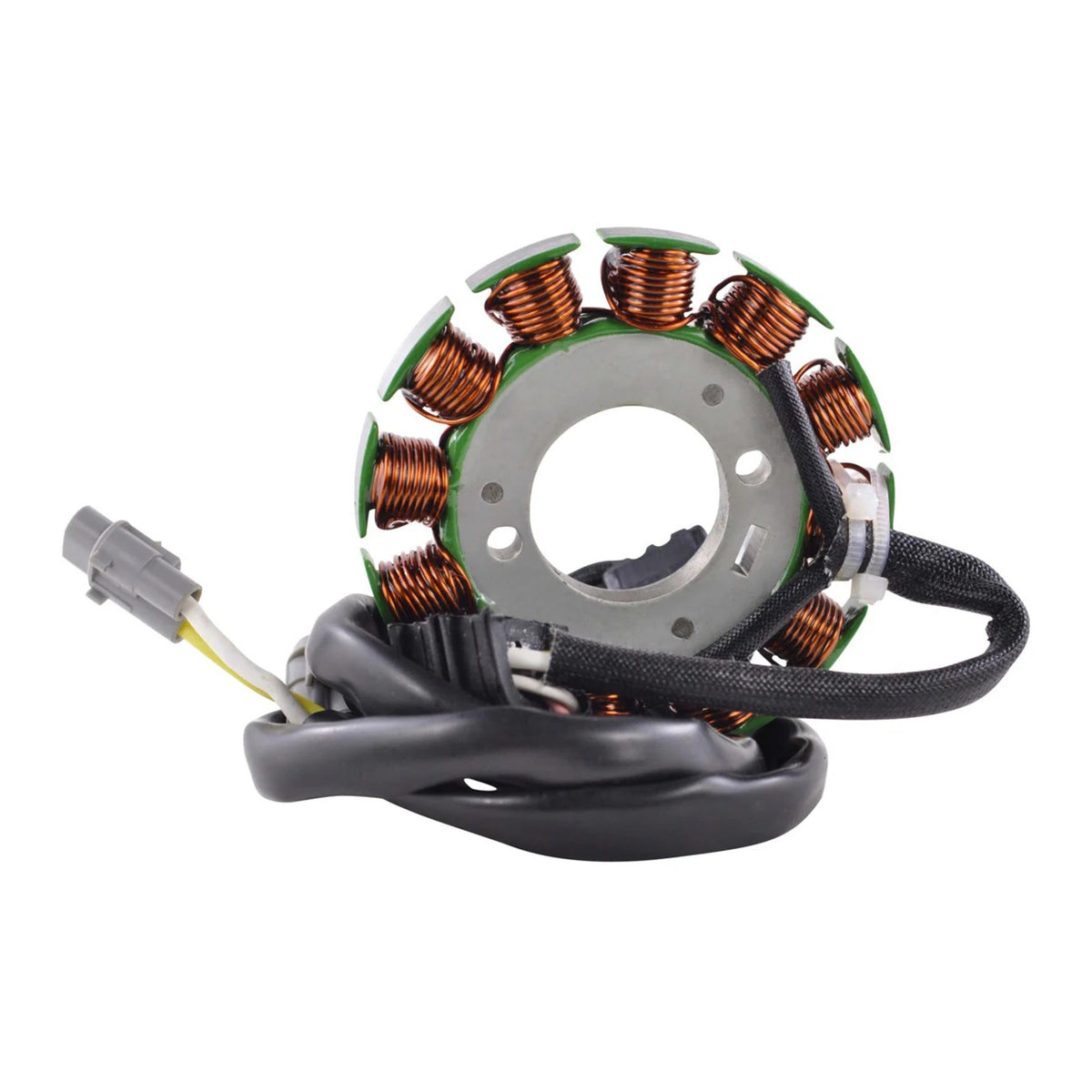

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

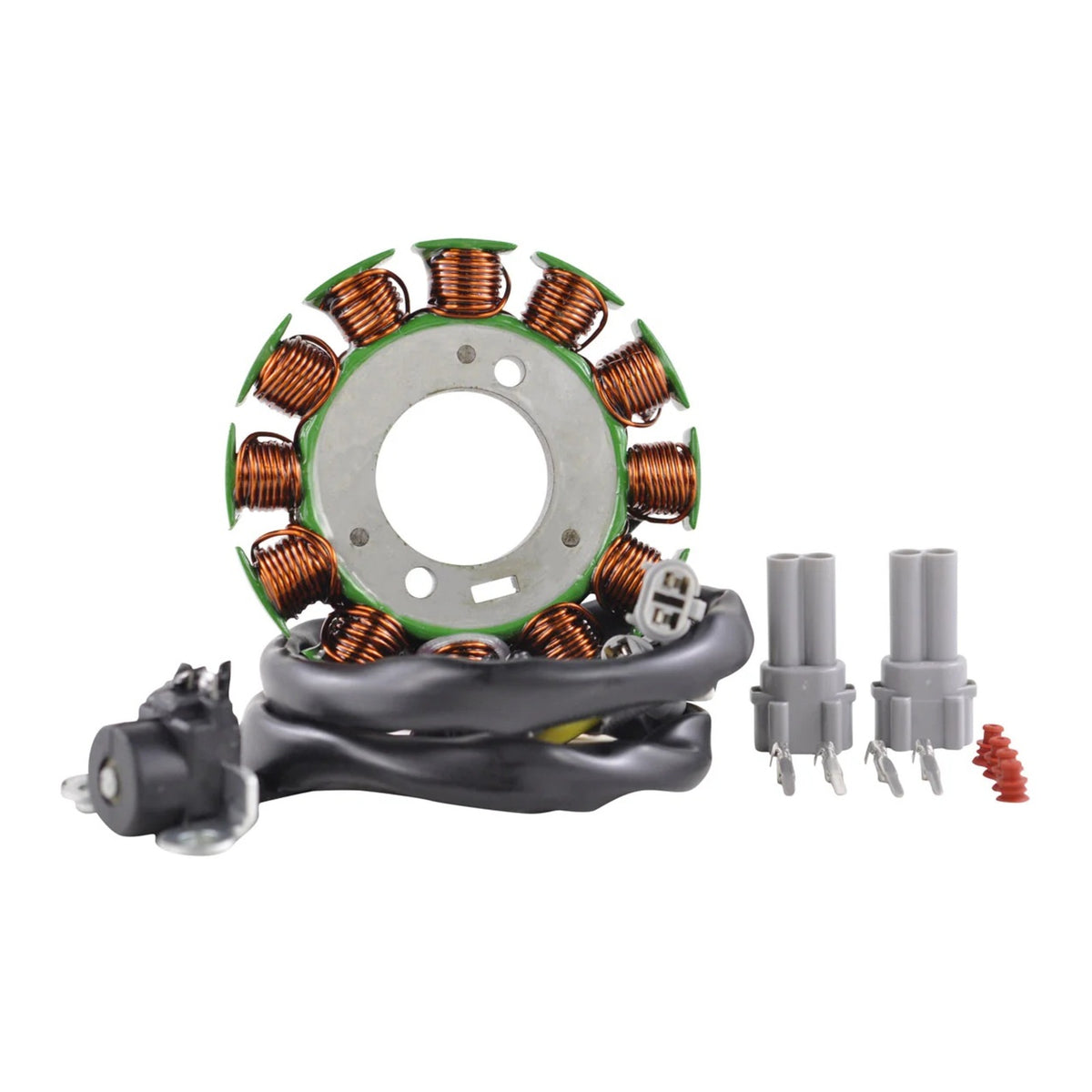

  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

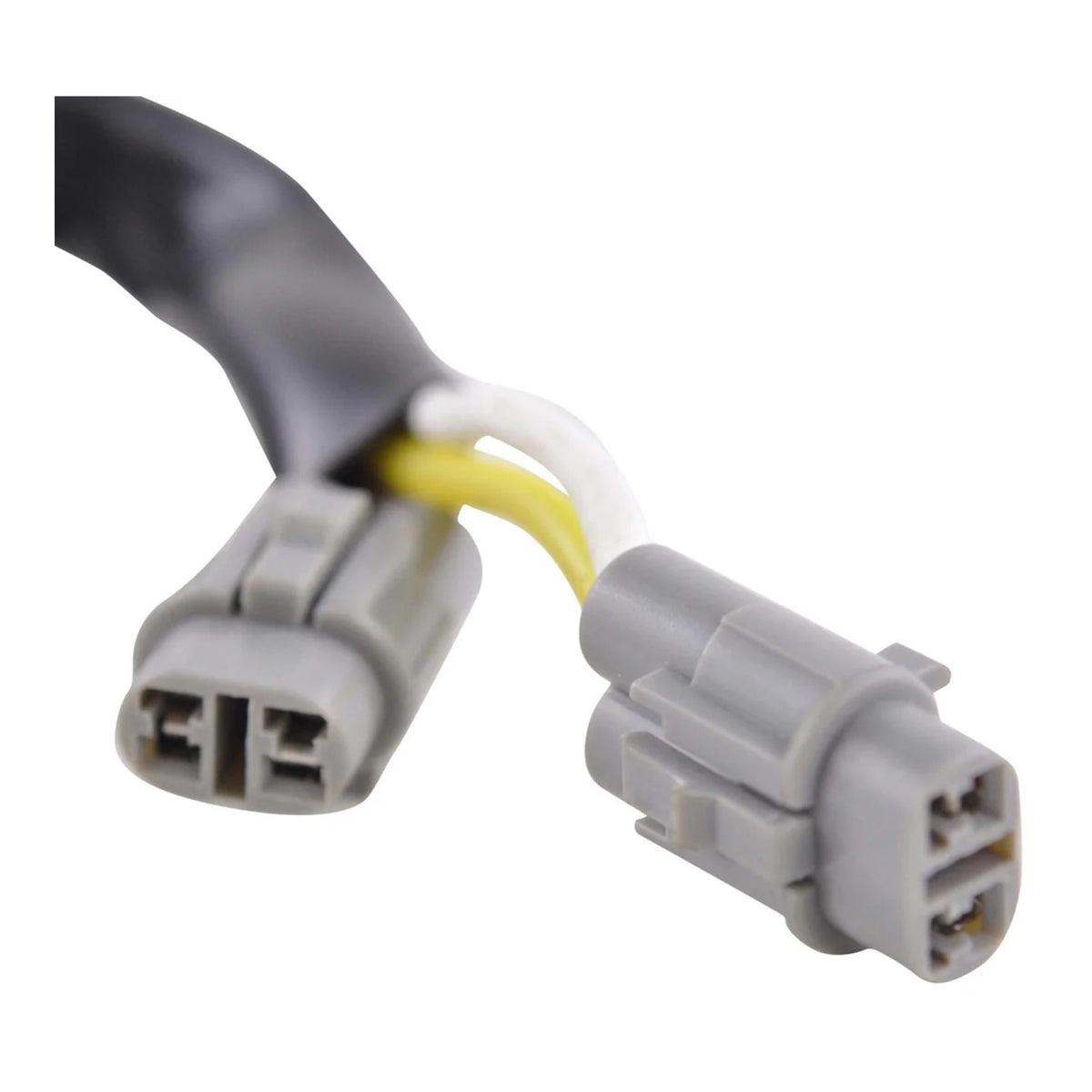

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter : 30 mm
  • Exterior diameter : 84 mm
  • Thickness : 9 mm
  • Length of wires stator to grommet : 110 mm
  • Length of wires grommet to plug : 545 mm
  • Length of pickup coil's wire to grommet : 90 mm

Other Specifications:

  • Number of wires : 4
  • Number of plugs : 2
  • Wire to wire resistance :
  • Alternator : Yellow To White = 0.4 ohms ±20%
  • Pickup : Pink To White = 280 ohms ±20%
