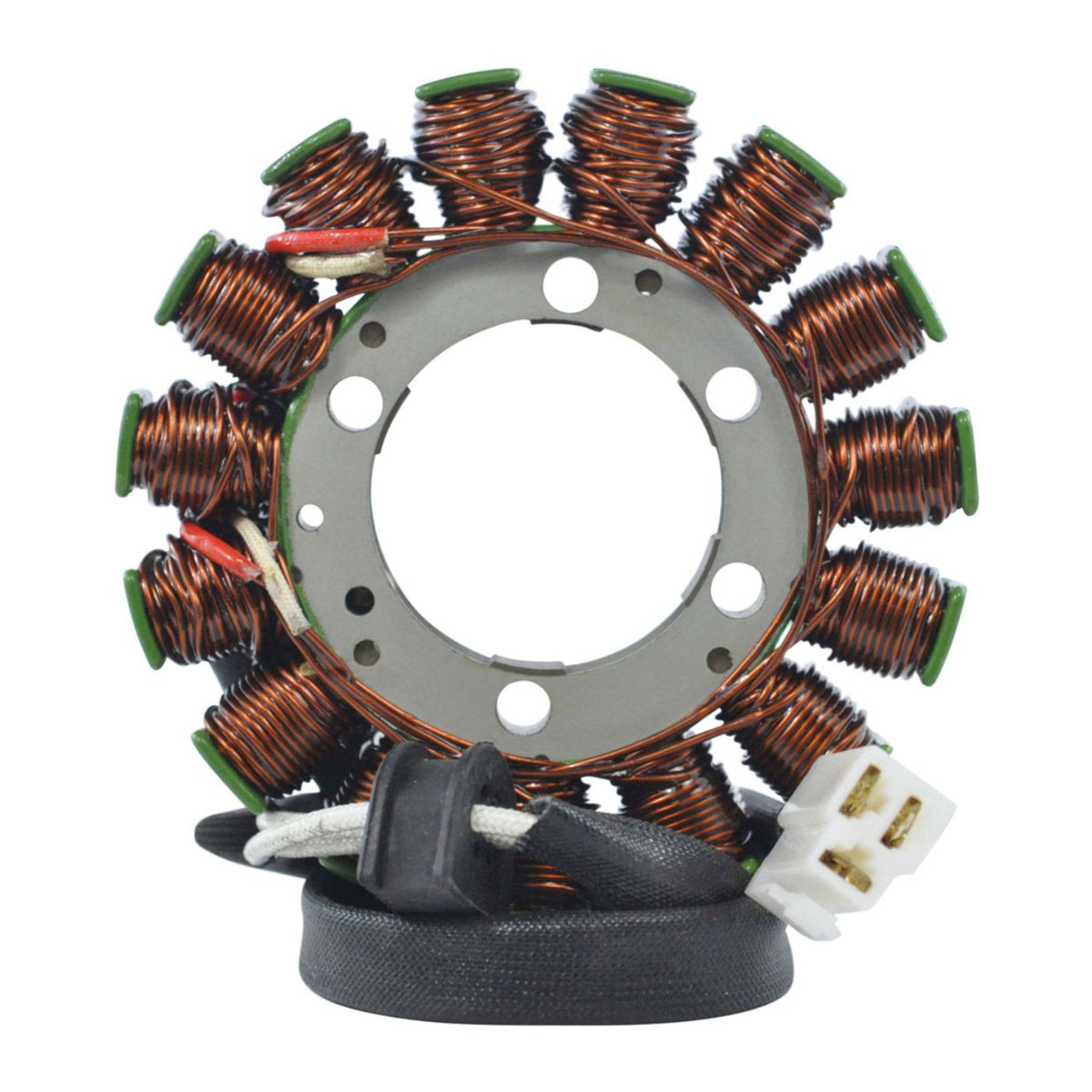

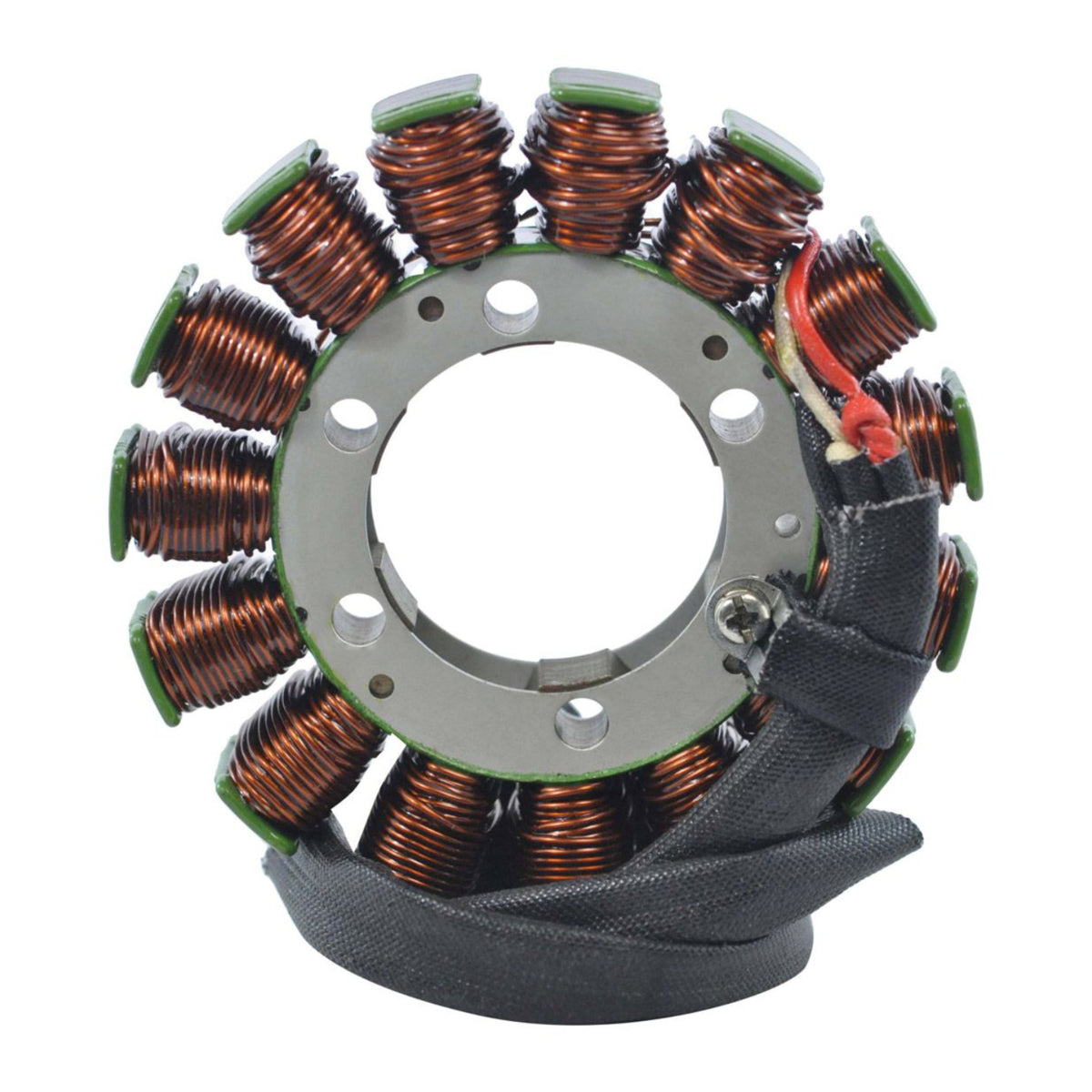

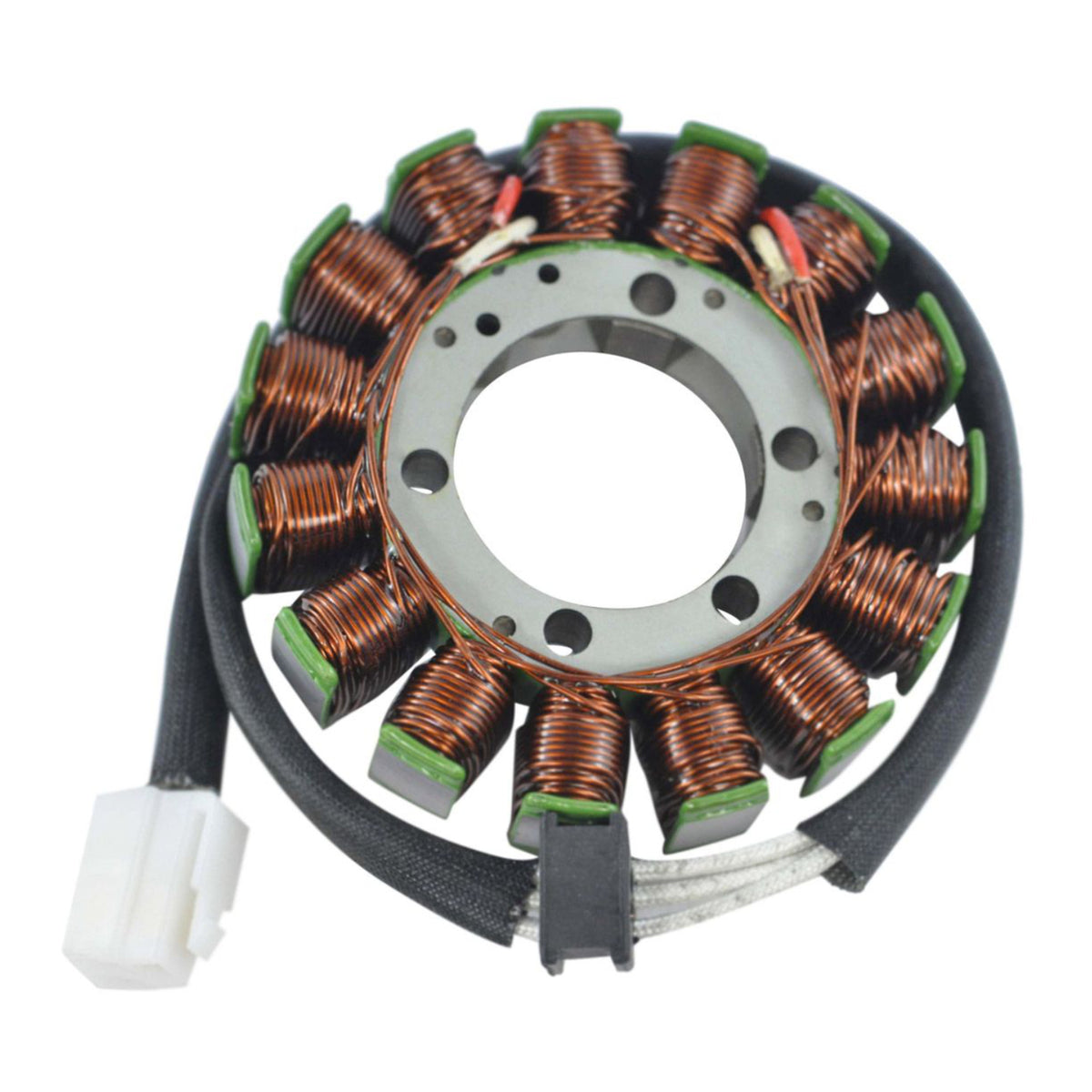

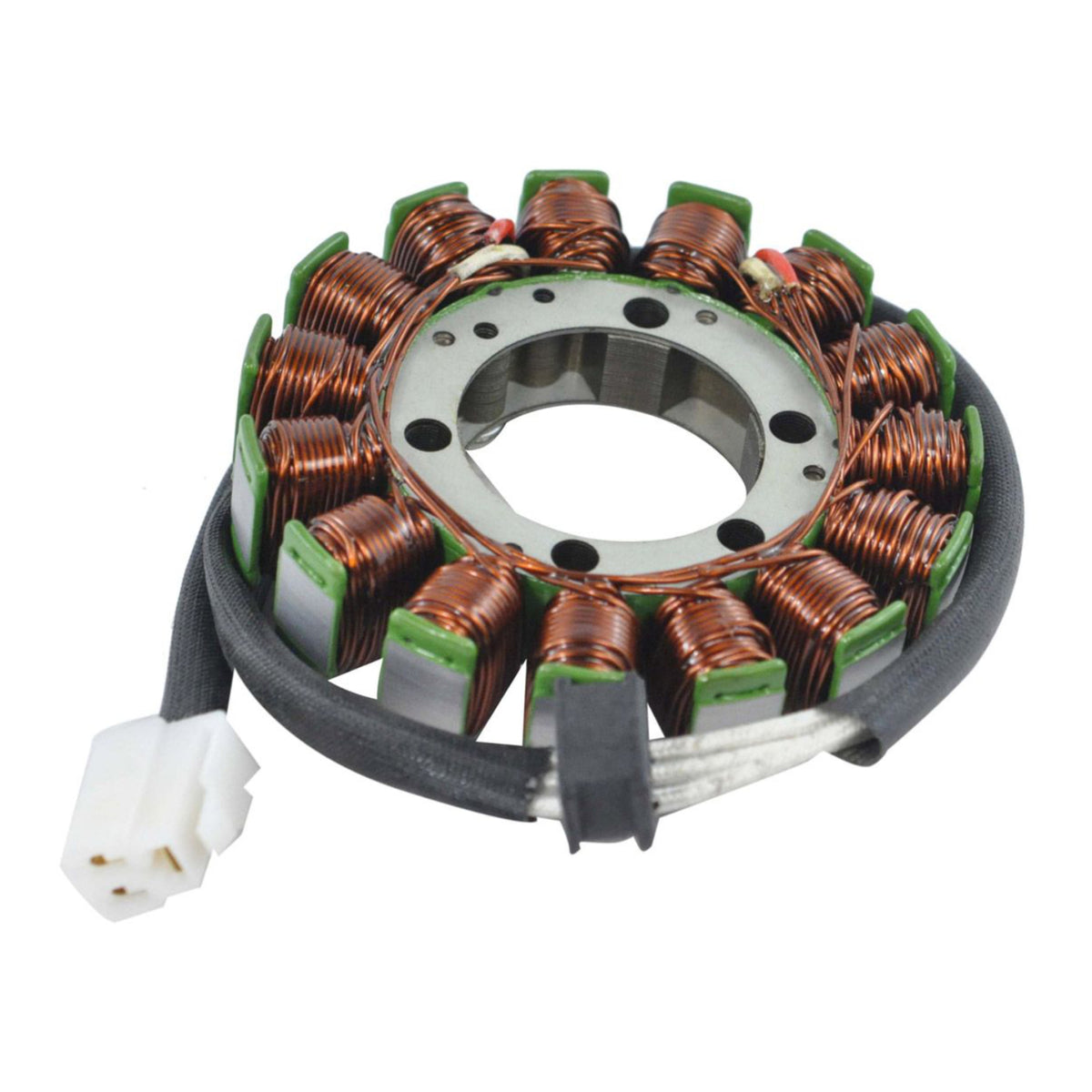

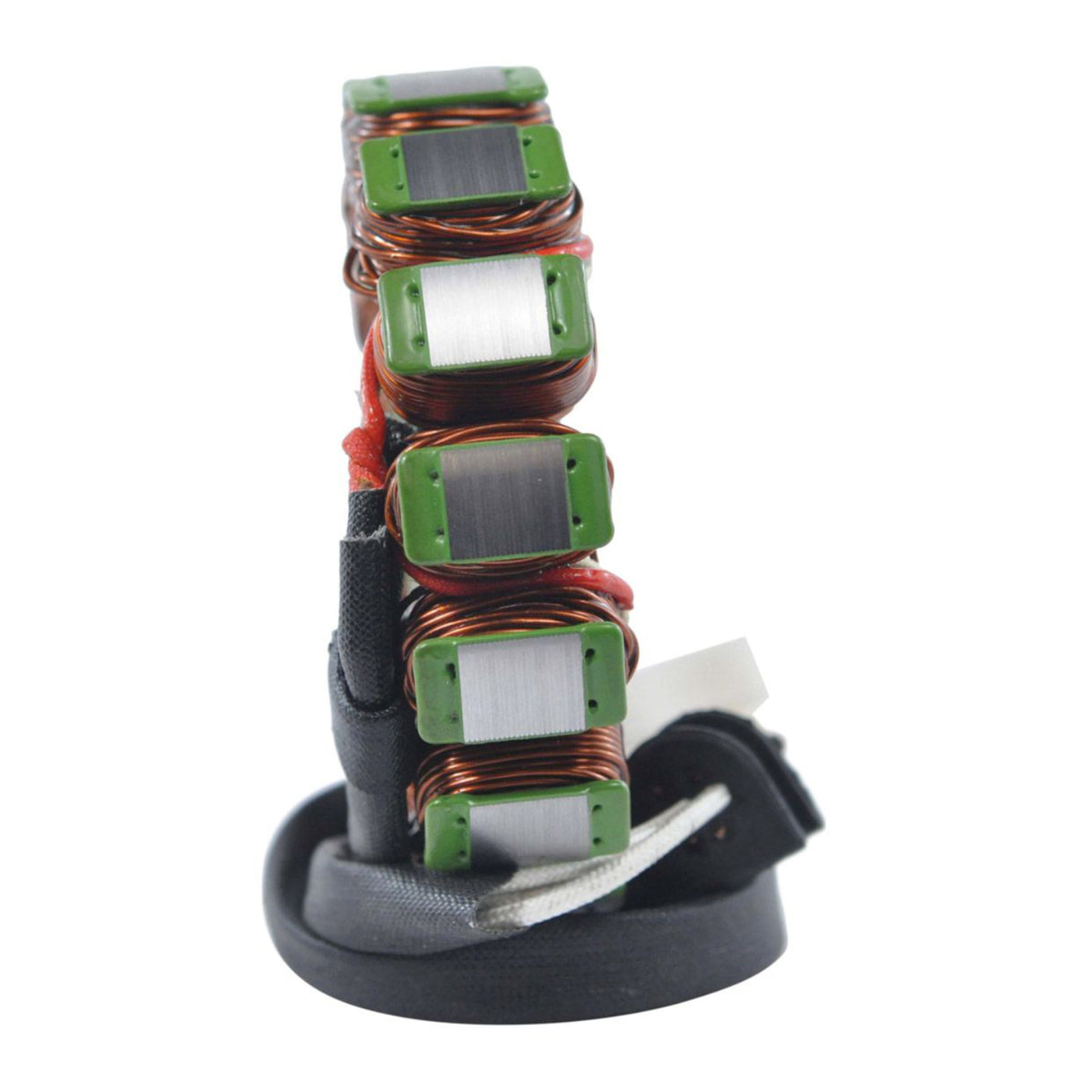

STATOR SUZUKI GSXR1000 2005-08 (RMS010-100089)

Brand new aftermarket stator.

Features:

• Direct replacement for the original unit.
• Plug-and-play, direct fit for easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings resistant to temperatures up to 200°C.

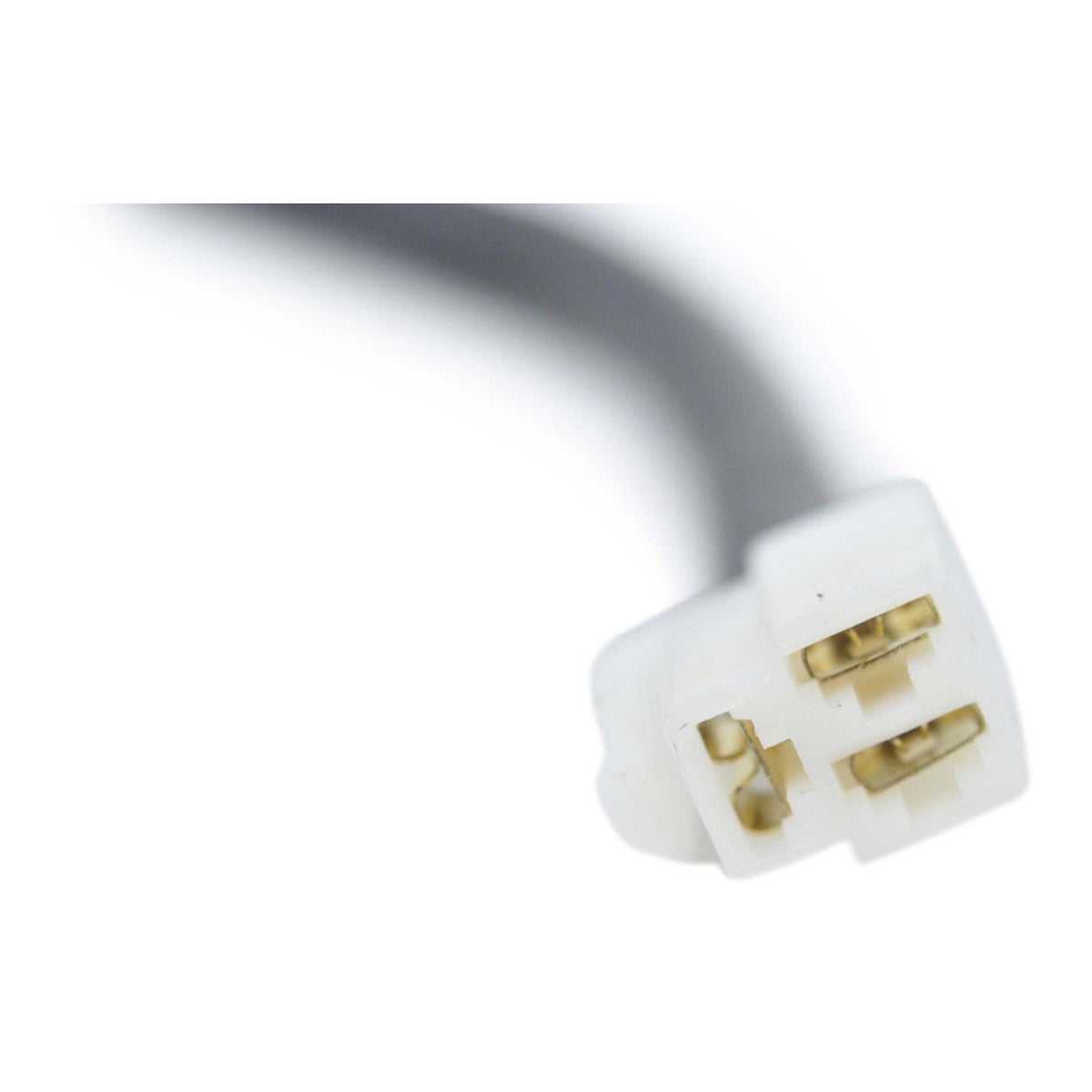

• Connector included.
• Rubber grommet included.
• All products are tested before shipping.

We have also included the opposite connector (main harness side), as these are often melted, corroded or defective and can be a major cause of recurring electrical issues.

All item pictures are accurate. If in doubt, compare The item with the original part before purchasing.

Before Installing the New Stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator/rectifier.
• Check and repair any melted wiring.
• Use high-temperature dielectric grease on all connectors.

The stator may use a different wire colThe code from the original. All wires are installed in the correct order; do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such.

When bolting the stator in place, always use locking compound.

If The stator includes a pickup coil, always ensure the air gap is correct during installation. We recommend an air gap as close as possible to, but no less than, 0.010".

Warning:

• Risk of electric shock. Disconnect the battery before servicing.
• Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter: 39mm
• Exterior diameter: 105mm
• Thickness: 16mm
• Stator to grommet wire length: 120mm
• Grommet to plug wire length: 330mm

Other Specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Alternator wire-to-wire resistance: White to White = 0.4Ω ±20%
